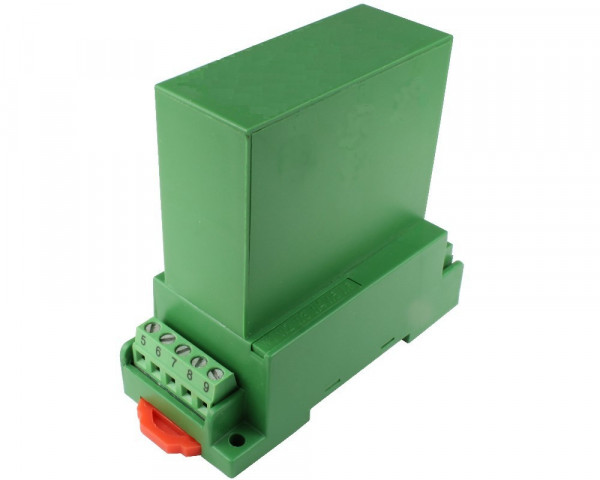

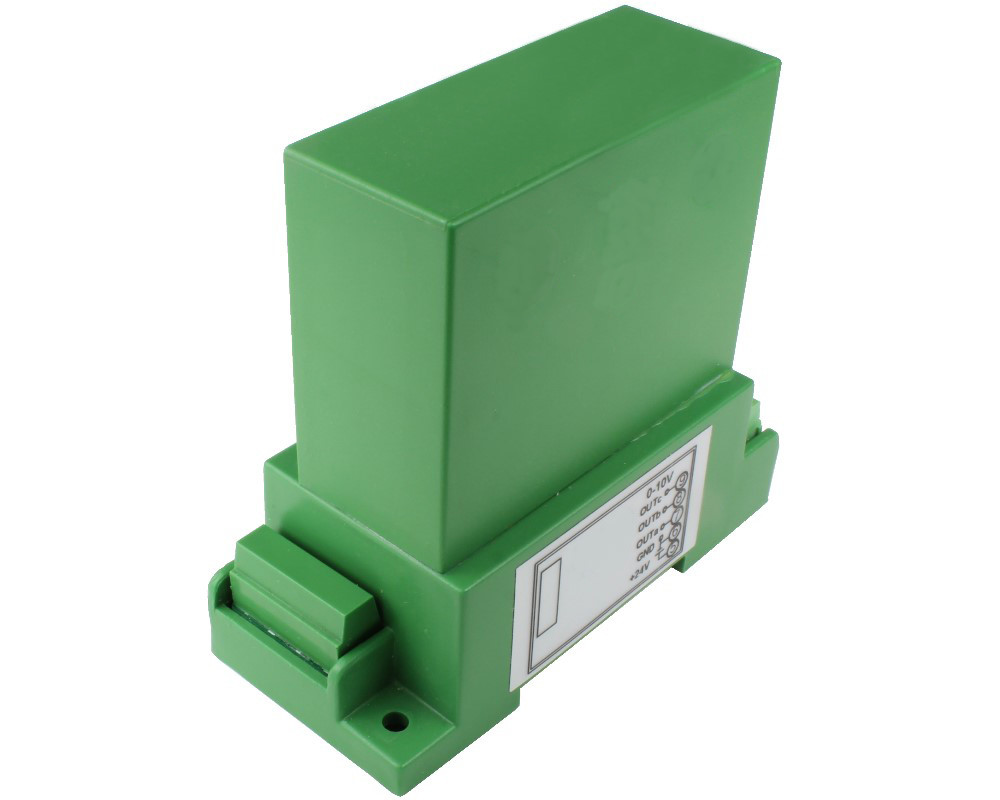

3-Phase 4-Wire AC Voltage Sensor CYVS14-14S3, Output: 0-5 V AC, Power Supply: +24 V DC

Preview: 3-Phase 4-Wire AC Voltage Sensor CYVS14-14S3, Output: 0-5 V AC, Power Supply: +24 V DC Preview: 3-Phase 4-Wire AC Voltage Sensor CYVS14-14S3, Output: 0-5 V AC, Power Supply: +24 V DC
3-Phase 4-Wire AC Voltage Sensor CYVS14-14S3, Output: 0-5 V AC, Power Supply: +24 V DC
3-Phase 4-Wire AC Voltage Sensor CYVS14-14S3, Output: 0-5 V AC, Power Supply: +24 V DC

Quantity Unit price
until 4 € 128.75 *
from 5 € 117.04 *
from 10 € 106.40 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Voltage:

Description Technical Properties Data Sheets Product Safety Information
Description
The CYVS14-14S3 AC Voltage Sensor/Transducer works according to electro-magnetic induction and... more
Close menu
3-Phase 4-Wire AC Voltage Sensor CYVS14-14S3, Output: 0-5 V AC, Power Supply: +24 V DC

The CYVS14-14S3 AC Voltage Sensor/Transducer works according to electro-magnetic induction and is designed for applications to measure and monitoring of 3-Phase 4-Wire AC voltage. The output signals (DC voltage or current) of this transducer are proportional to the average effective value (RMS) of input AC voltages. They are suitable for general applications such as fixed frequency voltage supplies and sinusoid voltages etc.



Information about product safety:

Manufacturer/ EU Responsible Person:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100

Technical Properties
more
Close menu
Current Type: AC
Accuracy: 0,5%
Operating Temperature: -10°C ~ +60°C
Isolation voltage: 2.5 kV DC, 1min
Response Time: ≤250ms
Input Voltage Range: 0-50V AC, 0-75V AC, 0-100V AC, 0-200V AC, 0-250V AC, 0-300V AC, 0-380V AC, 0-400V AC, 0-500V AC
Power Supply: +24V DC
Output Signal: 0-5V AC
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
