| Quantity | Unit price |
|---|---|
| until 4 | € 128.75 * |
| from 5 | € 117.04 * |
| from 10 | € 106.40 * |
Prices incl. VAT excl. Shipping Costs
Article not in stock, Delivery time 3-4 Weeks

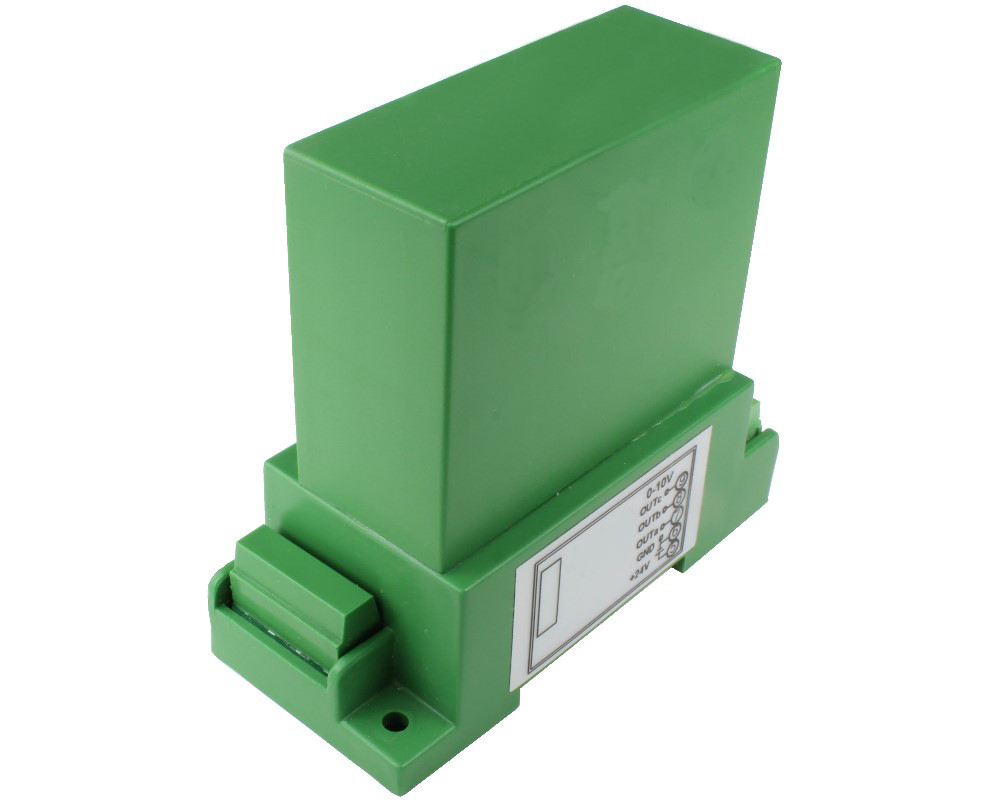

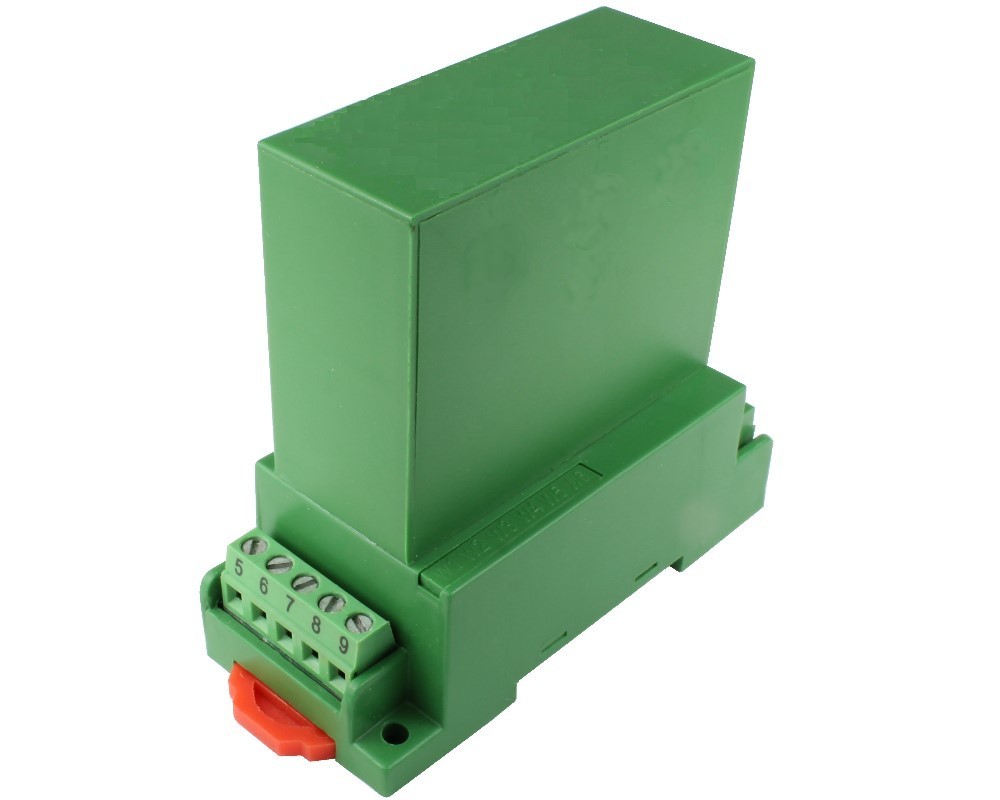

The CYVS14-83S3 AC Voltage Sensor/Transducer works according to electro-magnetic induction and is designed for applications to measure and monitoring of 3-Phase 4-Wire AC voltage. The output signals (DC voltage or current) of this transducer are proportional to the average effective value (RMS) of input AC voltages. They are suitable for general applications such as fixed frequency voltage supplies and sinusoid voltages etc.
| Current Type: | AC |
| Accuracy: | 0,5% |
| Operating Temperature: | -10°C ~ +60°C |
| Isolation voltage: | 2.5 kV DC, 1min |
| Response Time: | ≤250ms |
| Input Voltage Range: | 0-50V AC, 0-75V AC, 0-100V AC, 0-200V AC, 0-250V AC, 0-300V AC, 0-380V AC, 0-400V AC, 0-500V AC |
| Power Supply: | +15V DC |
| Output Signal: | 0-10V DC |
