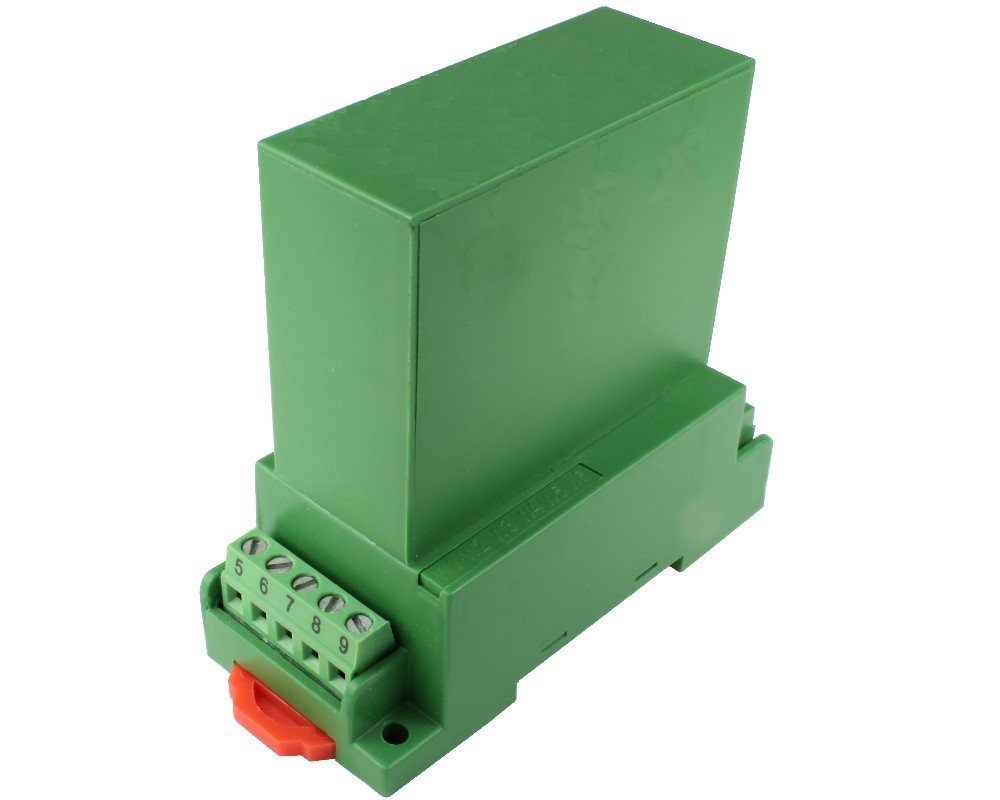

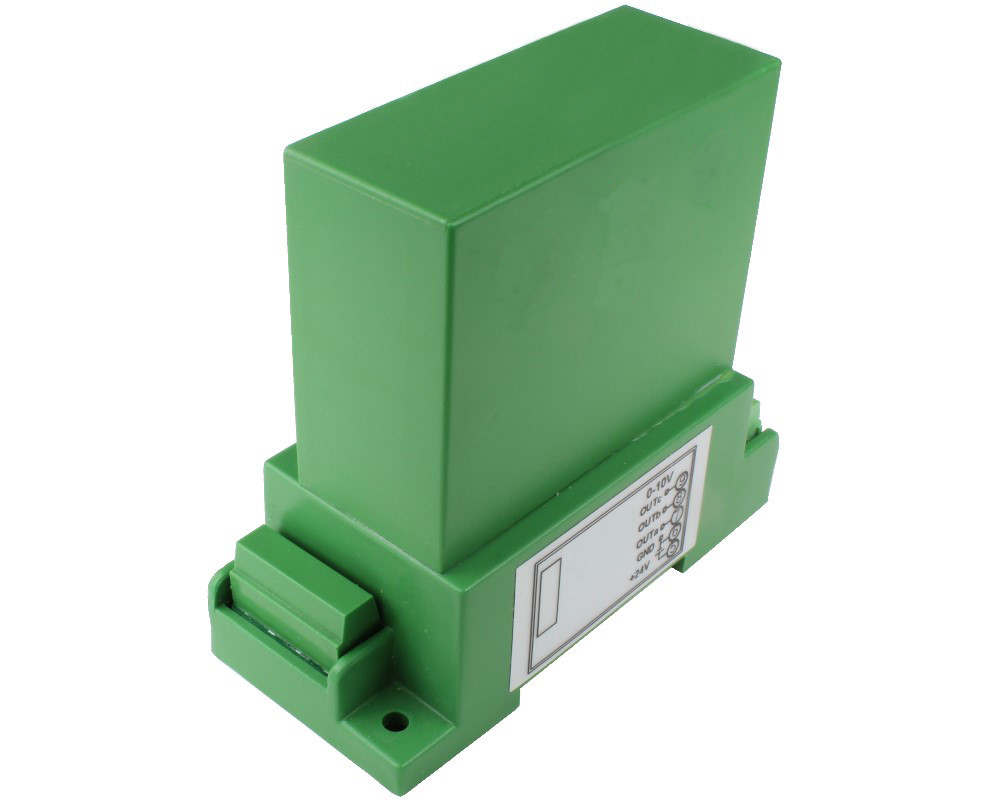

3-Phase AC Voltage Sensor CYVS13-54S3, Output: 4-20 mA DC, Power Supply: +24 V DC

Preview: 3-Phase AC Voltage Sensor CYVS13-54S3, Output: 4-20 mA DC, Power Supply: +24 V DC Preview: 3-Phase AC Voltage Sensor CYVS13-54S3, Output: 4-20 mA DC, Power Supply: +24 V DC
3-Phase AC Voltage Sensor CYVS13-54S3, Output: 4-20 mA DC, Power Supply: +24 V DC
3-Phase AC Voltage Sensor CYVS13-54S3, Output: 4-20 mA DC, Power Supply: +24 V DC

Quantity Unit price
until 4 € 136.79 *
from 5 € 124.36 *
from 10 € 113.05 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Voltage:

Description Technical Properties Data Sheets
Description
The CYVS13-54S3 AC Voltage Sensor/Transducer works according to electro-magnetic induction and... more
Close menu
3-Phase AC Voltage Sensor CYVS13-54S3, Output: 4-20 mA DC, Power Supply: +24 V DC

The CYVS13-54S3 AC Voltage Sensor/Transducer works according to electro-magnetic induction and is designed for applications to measurement and monitoring of 3-Phase 3-Wire AC voltage. The output signals (DC voltage or current) of this transducer are proportional to the average effective value (RMS) of input AC voltages. They are suitable for general applications such as fixed frequency voltage supplies and sinusoid voltages etc.

Technical Properties
more
Close menu
Current Type: AC
Accuracy: 0,5%
Operating Temperature: -10°C ~ +60°C
Isolation voltage: 2.5 kV DC, 1min
Response Time: ≤250ms
Input Voltage Range: 0-50V AC, 0-75V AC, 0-100V AC, 0-200V AC, 0-250V AC, 0-300V AC, 0-380V AC, 0-400V AC, 0-500V AC
Power Supply: +24V DC
Output Signal: 4-20mA DC
Data Sheets
more
Close menu
Data sheets to download:
