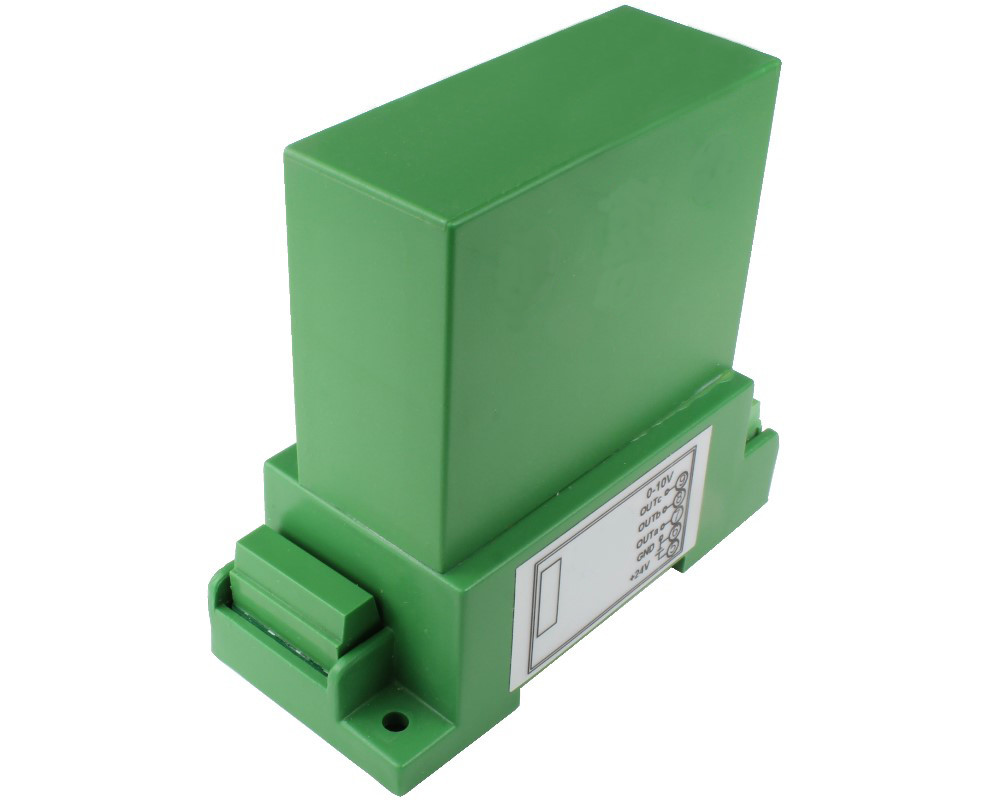

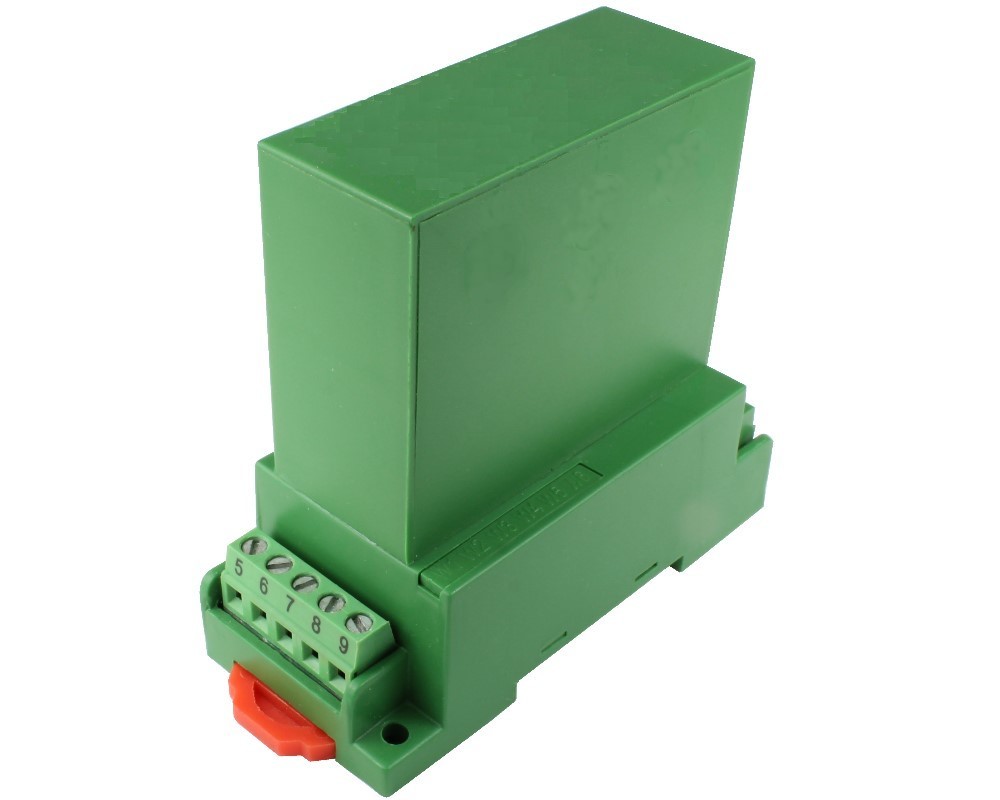

AC Voltage Sensor CYVS11-58S3, Output: 4-20 mA DC , Power Supply: +110 V DC/AC

Preview: AC Voltage Sensor CYVS11-58S3, Output: 4-20 mA DC , Power Supply: +110 V DC/AC Preview: AC Voltage Sensor CYVS11-58S3, Output: 4-20 mA DC , Power Supply: +110 V DC/AC
AC Voltage Sensor CYVS11-58S3, Output: 4-20 mA DC , Power Supply: +110 V DC/AC
AC Voltage Sensor CYVS11-58S3, Output: 4-20 mA DC , Power Supply: +110 V DC/AC

Quantity Unit price
until 4 € 62.84 *
from 5 € 57.13 *
from 10 € 51.94 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Voltage:

Description Technical Properties Data Sheets
Description
The CYVS11-58S3 AC Voltage Sensor/Transducer works according to electro-magnetic induction and... more
Close menu
AC Voltage Sensor CYVS11-58S3, Output: 4-20 mA DC , Power Supply: +110 V DC/AC

The CYVS11-58S3 AC Voltage Sensor/Transducer works according to electro-magnetic induction and is designed for applications to measurement and monitoring of single-phase AC voltage. The output signal (DC voltage or current) of this transducer is proportional to the average effective value (RMS) of input AC voltage. They are suitable for general applications such as fixed frequency voltage supplies etc.

Technical Properties
more
Close menu
Current Type: AC
Input Voltage Range: 0-10V AC, 0-50V AC, 0-100V AC, 0-110V AC, 0-220V AC, 0-250V AC, 0-380V AC, 0-400V AC, 0-500V AC, 0-1000V AC
Accuracy: 0,5%
Power Supply: 110V DC/AC
Response Time: ≤300ms
Isolation voltage: 2.5 kV DC, 1min
Operating Temperature: -10°C ~ +60°C
Output Signal: 4-20mA DC
Data Sheets
more
Close menu
Data sheets to download:
