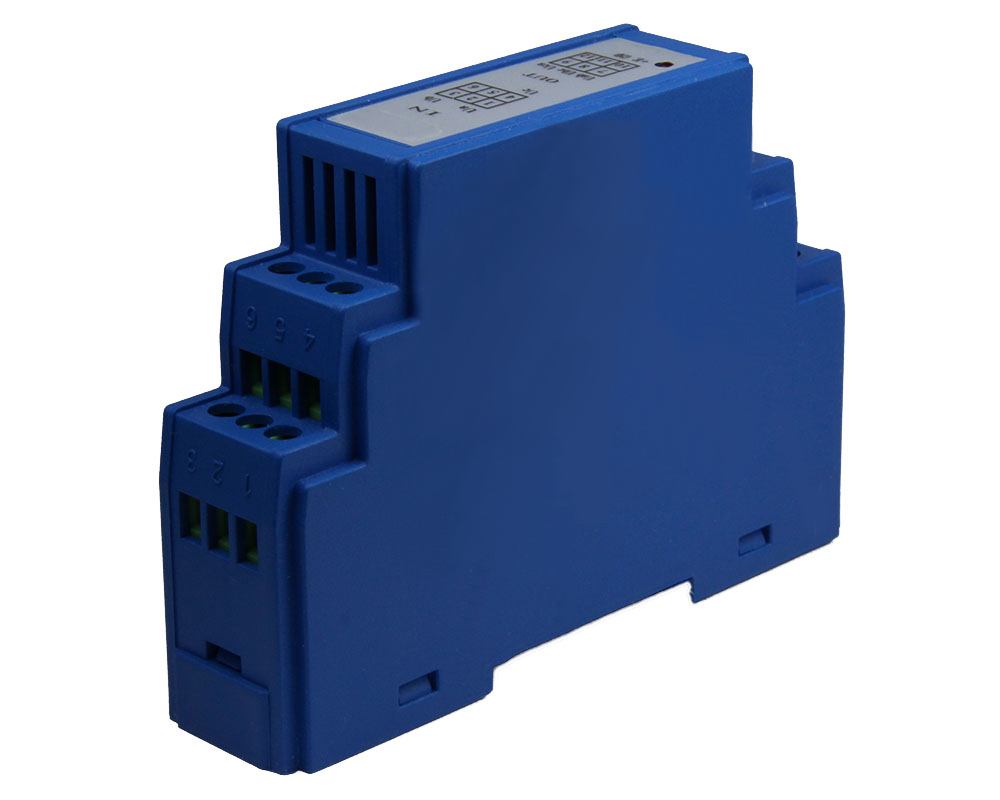

AC Voltage Sensor CYVS11A-18U0, Output: 0-5V AC, Power Supply: 165V-265V AC

AC Voltage Sensor CYVS11A-18U0, Output: 0-5V AC, Power Supply: 165V-265V AC
Quantity Unit price
until 4 € 76.45 *
from 5 € 69.50 *
from 10 € 63.18 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Voltage:

Description Technical Properties Data Sheets Product Safety Information
Description
The CYVS11-18U0 AC voltage sensor/transducer works according to Electromagnetic Induction and is... more
Close menu
AC Voltage Sensor CYVS11A-18U0, Output: 0-5V AC, Power Supply: 165V-265V AC

The CYVS11-18U0 AC voltage sensor/transducer works according to Electromagnetic Induction and is designed for applications to measurement and monitoring of AC voltage. The output signal (DC voltage or current) of this transducer is proportional to the input AC voltage. They are suitable for measurements and long-time monitoring of AC voltages and can be applied to power supply management, AC motor drivers, battery chargers, and systems, etc.

Technical Properties
more
Close menu
Current Type: AC
Input Voltage Range: 0-10V AC, 0-100V AC, 0-200V AC, 0-300V AC, 0-400V AC, 0-500V AC, 0-600V AC, 0-700V AC, 0-800V AC, 0-900V AC, 0-1000V AC
Output Signal: 0-5V AC
Power Supply: +165V-265V AC
Accuracy: 0,5%
Thermal drift: 350ppm/°C
Isolation voltage: 2.5 kV DC, 1min
Response Time: ≤350ms
Operating Temperature: -10°C ~ +60°C
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
