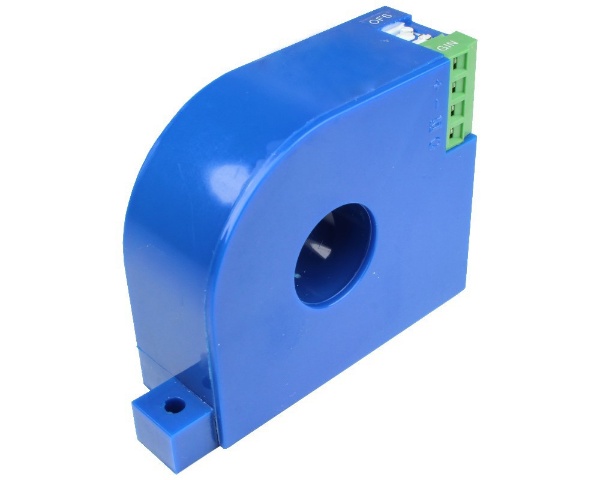

Bidirectional DC Leakage Current Sensor CYCT04-32E4, Output: 0-5 V DC, Power Supply: +12 V DC, Window: Ø 21 mm

Bidirectional DC Leakage Current Sensor CYCT04-32E4, Output: 0-5 V DC, Power Supply: +12 V DC, Window: Ø 21 mm
Quantity Unit price
until 4 € 73.43 *
from 5 € 66.76 *
from 10 € 60.69 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Current:

Description Technical Properties Data Sheets Product Safety Information
Description
This current sensor is based on magnetic modulation principle and can be used for measurement of... more
Close menu
Bidirectional DC Leakage Current Sensor CYCT04-32E4, Output: 0-5 V DC, Power Supply: +12 V DC, Window: Ø 21 mm

This current sensor is based on magnetic modulation principle and can be used for measurement of DC currents.

 Product Characteristics

  • Application of Ageing Technology
  • 100% Ageing Processing and Thermal Drift Test under high operating temperature in order to guarantee the long term stability of the sensors
  • Custom makeable according to individual requirements
  • Various current and voltage outputs are selectable
  • Power supply options: +12V, +15V, +24V, ±12VDC and ±15VDC etc.
  • Sensors with window for contactless measurement

Applications

  • Isolation Monitoring of DC power systems and cable selection systems,
  • Measurement of small DC currents and leakage currents etc.
Technical Properties
more
Close menu
Current Type: DC
Window Type: Round
Rated Input Current/Voltage: 0-10mA, 0-20mA, 0-50mA, 0-100mA, 0-200mA, 0-500mA, 0-1A, 0-2A, 0-5A, 0-10A
Direction: bidirectional
Accuracy: 1.0%
Operating Temperature: -10°C ~ +80°C
Output Signal: 0-5 V DC
Power Supply: +12 V DC
Response Time: ≤120ms
Window Size (mm): Ø 21
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
