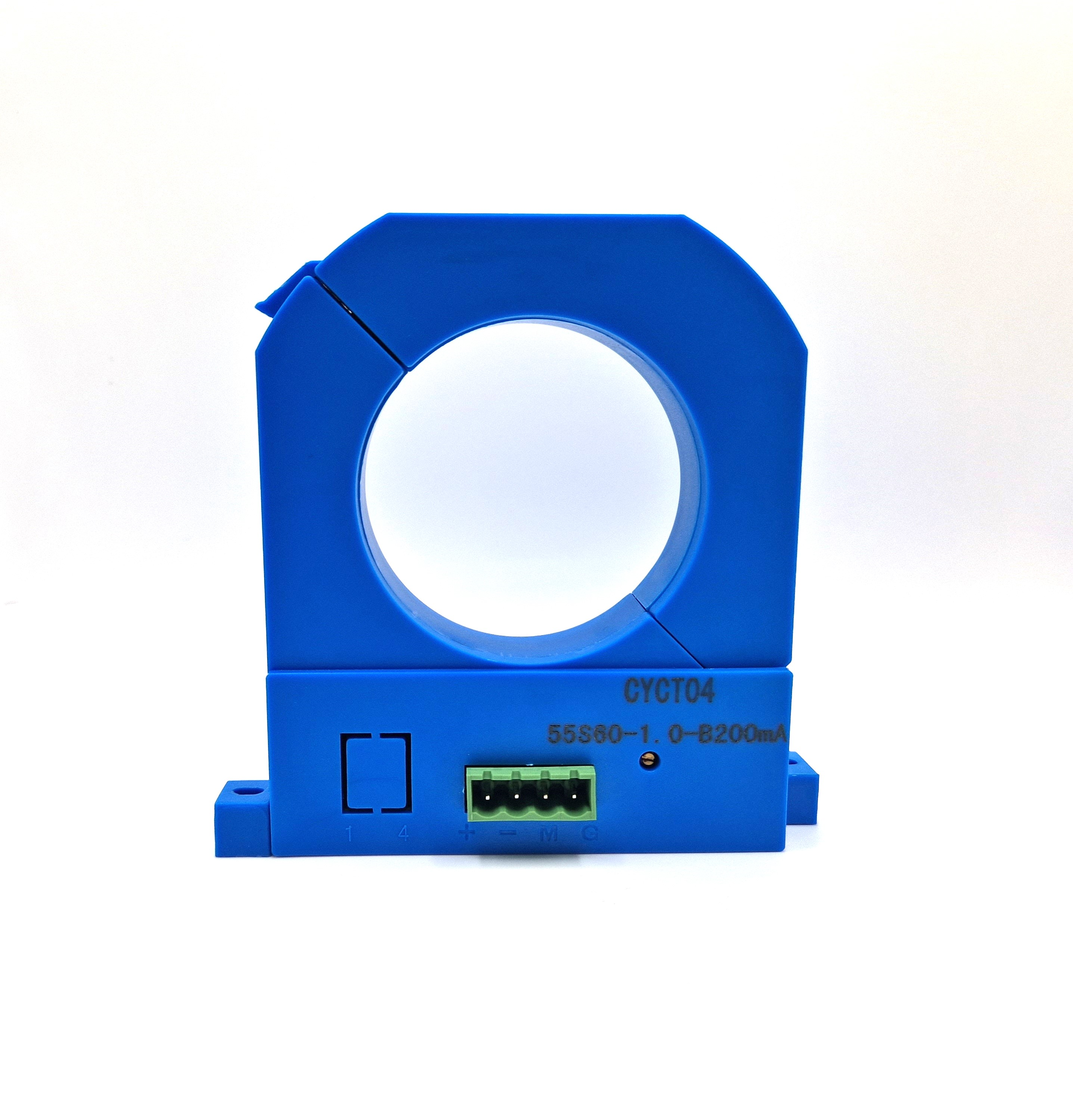

Bidirectional DC Leakage Current Sensor CYCT04-55S60, Output: 4-20mA DC, Power Supply: ±12V DC, Window: Ø60mm

Bidirectional DC Leakage Current Sensor CYCT04-55S60, Output: 4-20mA DC, Power Supply: ±12V DC, Window: Ø60mm
Quantity Unit price
until 4 € 83.81 *
from 5 € 76.20 *
from 10 € 69.27 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 1 pieces (3-4 weeks if more)

Nominal Input Current:

Description Technical Properties Data Sheets Product Safety Information
Description
This current sensor is based on magnetic modulation principle and can be used for measurement of... more
Close menu
Bidirectional DC Leakage Current Sensor CYCT04-55S60, Output: 4-20mA DC, Power Supply: ±12V DC, Window: Ø60mm

This current sensor is based on magnetic modulation principle and can be used for measurement of DC currents.

 Applications:

  • Isolation Monitoring of DC power systems and cable selection systems
  • Isolation measurement of small DC currents and leakage currents



Product Characteristics:

  • Application of Ageing Technology
  • 100% Ageing Processing and Thermal Drift Test under high operating temperature in order to guarantee the long term stability of the sensors
  • Custom makeable according to individual requirements
  • Various current and voltage outputs are selectable
  • Power supply options: +12V, +15V, +24V, ±12VDC and ±15VDC
  • Sensors with window for contactless measurement



Information about product safety:

Manufacturer/ EU Responsible Person:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100

Technical Properties
more
Close menu
Rated Input Current/Voltage: 0-10mA, 0-20mA, 0-50mA, 0-100mA, 0-200mA, 0-500mA, 0-1A, 0-2A, 0-3A, 0-4A, 0-5A
Current Type: DC
Direction: bidirectional
Accuracy: 1.0%
Operating Temperature: -25°C ~ +70°C
Output Signal: 4-20 mA DC
Power Supply: ±12 V DC
Response Time: ≤120ms
Window Size (mm): Ø 60
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
