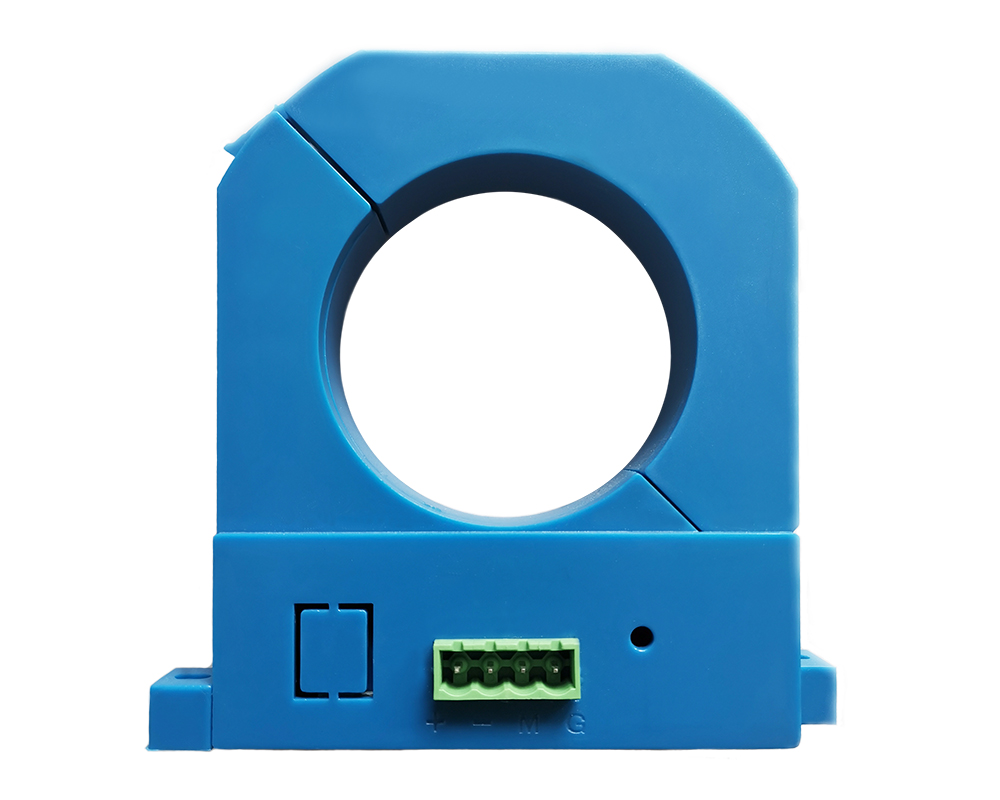

Bidirectional DC Leakage Current Sensor CYCT04-84S9, Output: 0-10 V DC, Power Supply: +24 V DC, Window: Ø 94 mm

Bidirectional DC Leakage Current Sensor CYCT04-84S9, Output: 0-10 V DC, Power Supply: +24 V DC, Window: Ø 94 mm
Quantity Unit price
until 4 € 112.88 *
from 5 € 102.63 *
from 10 € 93.30 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Current:

Description Technical Properties Data Sheets Product Safety Information
Description
This current sensor is based on magnetic modulation and compensation principle, and can be used... more
Close menu
Bidirectional DC Leakage Current Sensor CYCT04-84S9, Output: 0-10 V DC, Power Supply: +24 V DC, Window: Ø 94 mm

This current sensor is based on magnetic modulation and compensation principle, and can be used for measurement of small DC current and leakage current, current difference between two or more conductors.

Applications:

  • Isolation Monitoring of DC power systems and cable selection systems
  • Measurements of small DC currents and leakage currents etc.

Product Characteristics:

  • Application of Computer Aided Ageing Technology
  • 100% Ageing Processing and Thermal Drift Test under high operating temperature in order to guarantee the long term stability of the sensors
  • Custom makeable according to individual requirements
  • Various current and voltage outputs are selectable
  • Power supply options: ±12VDC and ±15VDC
  • Sensors with window for contactless measurements



Information about product safety:

Manufacturer/ EU Responsible Person:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100

Technical Properties
more
Close menu
Current Type: DC
Rated Input Current/Voltage: 0-10mA, 0-20mA, 0-50mA, 0-100mA, 0-200mA, 0-500mA, 0-1A, 0-2A, 0-5A
Window Type: Round
Direction: bidirectional
Accuracy: 1.0%
Operating Temperature: -25°C ~ +70°C
Output Signal: 0-10 V DC
Power Supply: +24 V DC
Response Time: ≤120ms
Window Size (mm): Ø 94
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
