Preview: Bidirectional Digital Hall Effect AC Current Sensor CYHCSD-S3; Digital Output: Current I; Analogue Output: 5VDC±5VAC; Power Supply: +24V DC; Interface: RS485 MODBUS; Window: Ø 20 mm

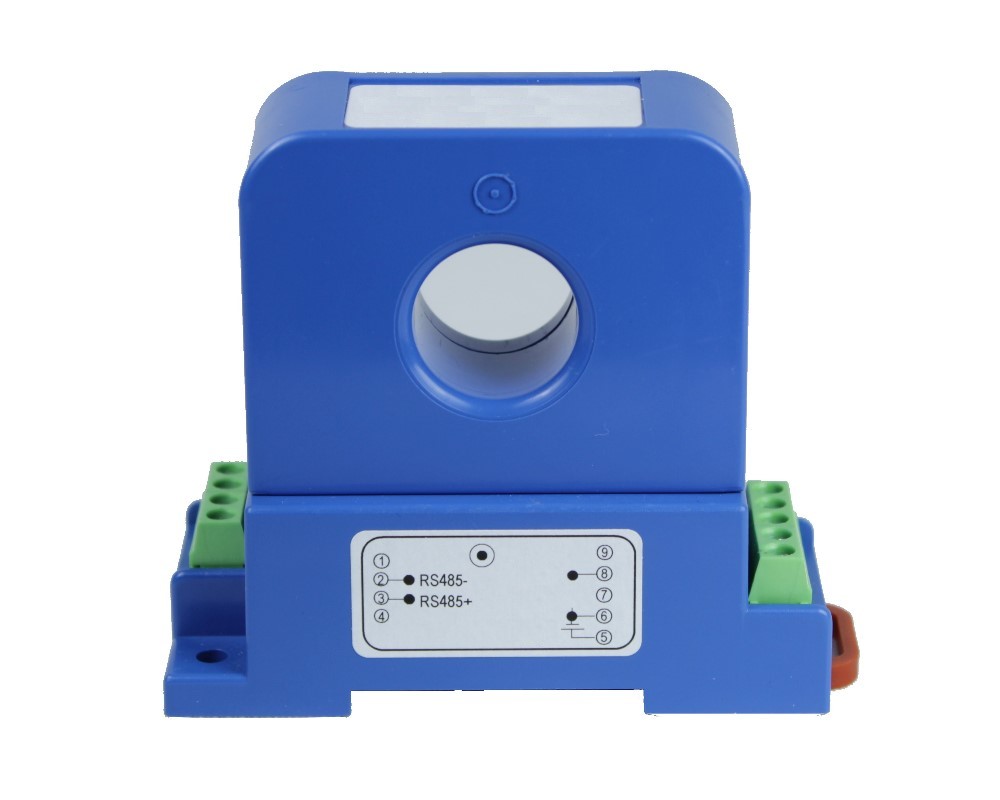

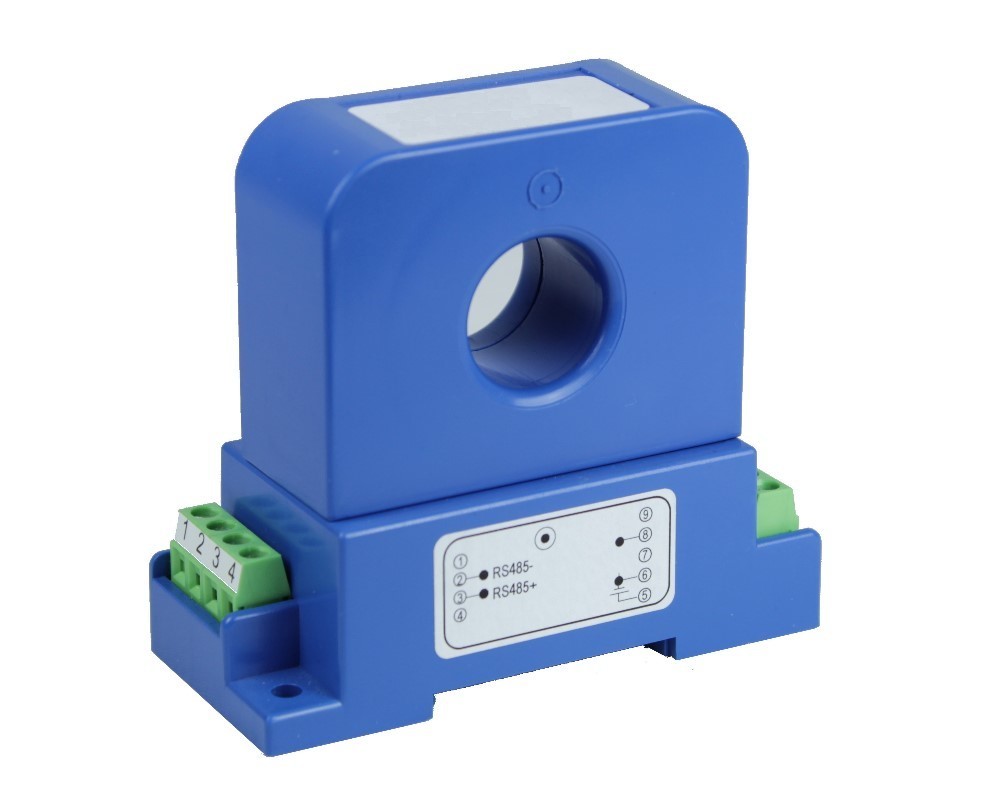

Bidirectional Digital Hall Effect AC Current Sensor CYHCSD-S3; Digital Output: Current I; Analogue Output: 5VDC±5VAC; Power Supply: +24V DC; Interface: RS485 MODBUS; Window: Ø 20 mm

Quantity	Unit price
until 4	€ 130.25 *
from 5	€ 118.83 *
from 10	€ 109.11 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Article-Nr: CYHCSD-S3-B25A-843
Serial-Nr: CYHCSD-S3
Request on this Article
Data sheet download

The sensor CYHCSD-S3 is a Hall Effect current sensor for the measurement of AC current. The... more

Close menu

Bidirectional Digital Hall Effect AC Current Sensor CYHCSD-S3; Digital Output: Current I; Analogue Output: 5VDC±5VAC; Power Supply: +24V DC; Interface: RS485 MODBUS; Window: Ø 20 mm

The sensor CYHCSD-S3 is a Hall Effect current sensor for the measurement of AC current. The sensor has galvanic isolation between the high-power primary conductor and the secondary electronic circuit. The sensor has analog and different digital output signals under different power supplies. The data communication between the sensor and digital equipment can be realized directly through the interface RS-485 MODBUS.

Applications

Photovoltaic equipment
Battery banks, such as, monitoring load current and charge current, verifying operation
Transportation, measuring traction power
Phase fired controlled heaters
Directly connect to PLC
Sense motor stalls and short circuits
Industrial instrumentation

Features and Advantages

AC current measurement
High measuring accuracy
Analog output voltage 2.5VDC±2.5VAC, 5VDC±5VAC
Digital outputs (RS-485 Modbus)
Protection against overvoltage
Protection against reversed polarity
Output protection against electrical disturbances

Information about product safety:

Manufacturer/ EU Responsible Person:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100

Close menu

Nominal Input Current:	0-25A, 0-30A, 0-40A, 0-50A, 0-60A, 0-70A, 0-80A, 0-90A, 0-100A, 0-200A, 0-300A
Power Supply:	+24V DC
Analogue Output Signal:	5V DC ± 5V AC
Digital Outputs:	Current I
Interface:	RS485, MODBUS
Baud Rate (bps):	1200, 2400, 4800, 9600 (default), 19.2K, 38.4K, 57.6K, 115.2K
Linearity:	0,5%, 0,2%
Accuracy:	0,5%, 1,0%
Window Type:	Round
Window Size (mm):	Ø 20
Operating Temperature:	-40°C ~ +70°C
