Bidirectional Hall Effect DC Current Sensor CYHCT-L20K, Output: tracing voltage ±5 V DC, Power Supply: +15 V DC, Window: Ø 20 mm

Preview: Bidirectional Hall Effect DC Current Sensor CYHCT-L20K, Output: tracing voltage ±5 V DC, Power Supply: +15 V DC, Window: Ø 20 mm Preview: Bidirectional Hall Effect DC Current Sensor CYHCT-L20K, Output: tracing voltage ±5 V DC, Power Supply: +15 V DC, Window: Ø 20 mm
Bidirectional Hall Effect DC Current Sensor CYHCT-L20K, Output: tracing voltage ±5 V DC, Power Supply: +15 V DC, Window: Ø 20 mm
Bidirectional Hall Effect DC Current Sensor CYHCT-L20K, Output: tracing voltage ±5 V DC, Power Supply: +15 V DC, Window: Ø 20 mm

Quantity Unit price
until 4 € 57.02 *
from 5 € 51.85 *
from 10 € 47.14 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Current:

Description Technical Properties Data Sheets Product Safety Information
Description
The sensor CYHCT-L20K is based on open loop principle and designed with a high galvanic... more
Close menu
Bidirectional Hall Effect DC Current Sensor CYHCT-L20K, Output: tracing voltage ±5 V DC, Power Supply: +15 V DC, Window: Ø 20 mm

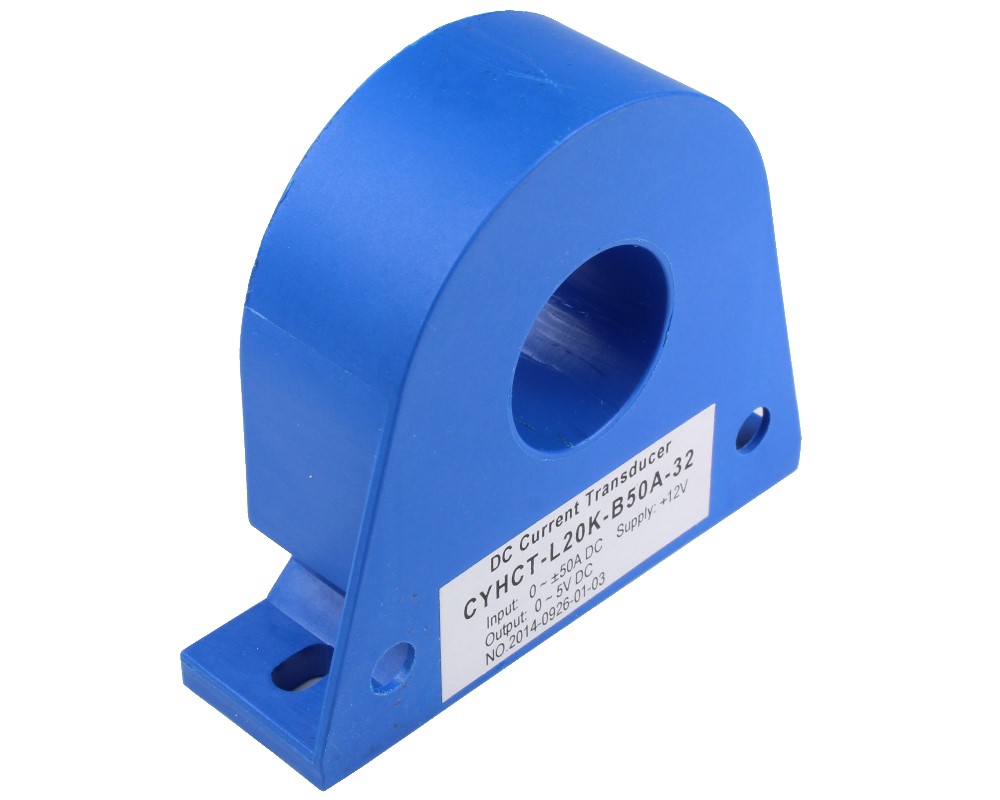

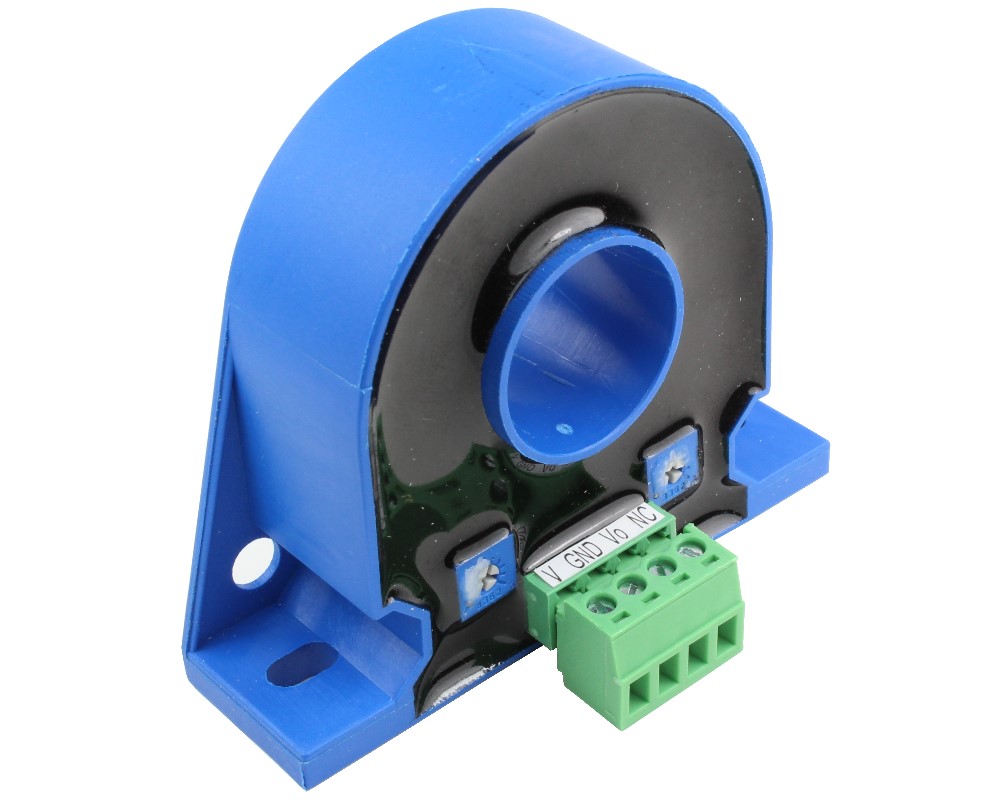

The sensor CYHCT-L20K is based on open loop principle and designed with a high galvanic isolation between primary conductor and secondary circuit. It can be used for measurement of DC current, DC pulse currents etc. The output of the transducer reflects the real wave of the current carrying conductor.

If the sensors offered don't have the input current which you require, contact us via our Contact Form.

Characteristics

  • DC current measurement
  • Output signal option (0-20mA, 4-20mA, 0-5V, 0-10V, ±5V)
  • High isolation between primary and secondary circuits
  • Protection against overvoltage
  • Protection against reversed polarity
  • Output protection against electrical disturbances

Applications

  • Photovoltaic equipment
  • Battery banks, such as, monitoring load current and charge current, verifying operation
  • Transportation, measuring traction power
  • Phase fired controlled heaters
  • Directly connect to PLC
  • Sense motor stalls and short circuits
  • Industrial instrumentation
Technical Properties
more
Close menu
Nominal Input Current: 0-25A, 0-30A, 0-40A, 0-50A, 0-60A, 0-70A, 0-80A, 0-90A, 0-100A, 0-200A, 0-300A, 0-400A, 0-500A
Sensor Type: Open-Loop
Power Supply: +15 V DC
Output Signal: tracing voltage ±5 V DC
Current Type: DC
Window Type: Round
Window Size (mm): Ø 20
Direction: bidirectional
Accuracy: ±1,0% for 25A~40A; ±0,5% for 50A~500A
Linearity: ±0,5% for 25A~40A; ±0,2% for 50A~500A
Operating Temperature: -40°C ~ +85°C
Frequency Bandwith: DC – 8kHz
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
