Bipolar Hall Effect Latching Switch Ics CYD402F, Power Supply: 3.8V -60V, supply current: 40mA

Preview: Bipolar Hall Effect Latching Switch Ics CYD402F, Power Supply: 3.8V -60V, supply current: 40mA Preview: Bipolar Hall Effect Latching Switch Ics CYD402F, Power Supply: 3.8V -60V, supply current: 40mA
Bipolar Hall Effect Latching Switch Ics CYD402F, Power Supply: 3.8V -60V, supply current: 40mA
Bipolar Hall Effect Latching Switch Ics CYD402F, Power Supply: 3.8V -60V, supply current: 40mA

Quantity Unit price
until 9 € 0.64 *
from 10 € 0.54 *
from 20 € 0.45 *
from 50 € 0.37 *
from 100 € 0.31 *
from 200 € 0.26 *
from 500 € 0.21 *
from 1000 € 0.18 *
from 3000 € 0.17 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 980 pieces (3-4 weeks if more)

Package:

Description Technical Properties Data Sheets
Description
The CYD402F is a high-voltage bipolar latching switch IC. The chip consists of a voltage... more
Close menu
Bipolar Hall Effect Latching Switch Ics CYD402F, Power Supply: 3.8V -60V, supply current: 40mA

The CYD402F is a high-voltage bipolar latching switch IC. The chip consists of a voltage regulator unit, a Hall voltage generator, a differential amplification circuit, a temperature compensation circuit, and open collector output with a built-in pull-up resistor (10kΩ) etc. The input is magnetic induction strength and the output is a digital voltage signal. It is resistant to high voltage shocks and has excellent noise resistance. Operating temperatures range is -40°C to 150°C and operating voltages from 3.8V to 60VDC, driving current up to 30mA. It is suitable for a variety of consumer electronics, automotive and industrial control and other fields. It is available in both TO92S and SOT23-3L packages, all of which are RoHS compliant.

Applications

  • Brushless DC motors
  • Speed measurement
  • Counting
  • Angle position detection
  • Proximity detection
  • Home applications
  • Home safety

Features

  • Operating voltages range 3.8V~ 60V
  • Overvoltage protection capacity 80V
  • ESD performance up to ±4kV
  • Built-in pull-up resistor 10kΩ
  • Operating temperature -40°C~150°C
  • Suitable for automotive and extreme industrial environments

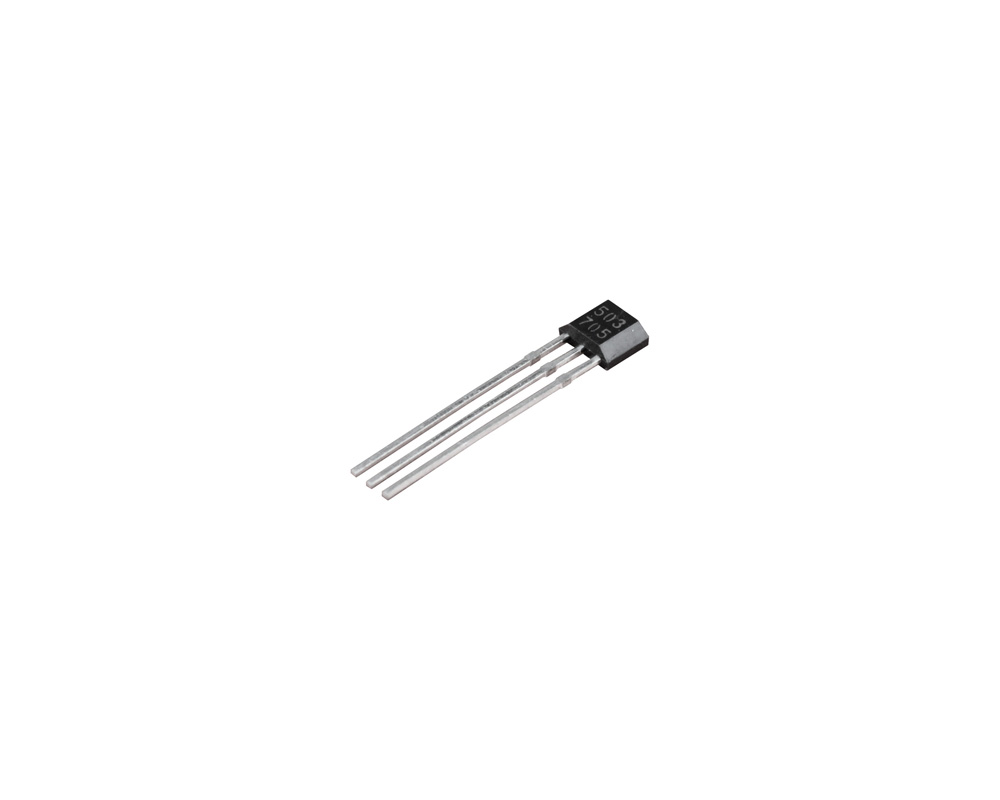

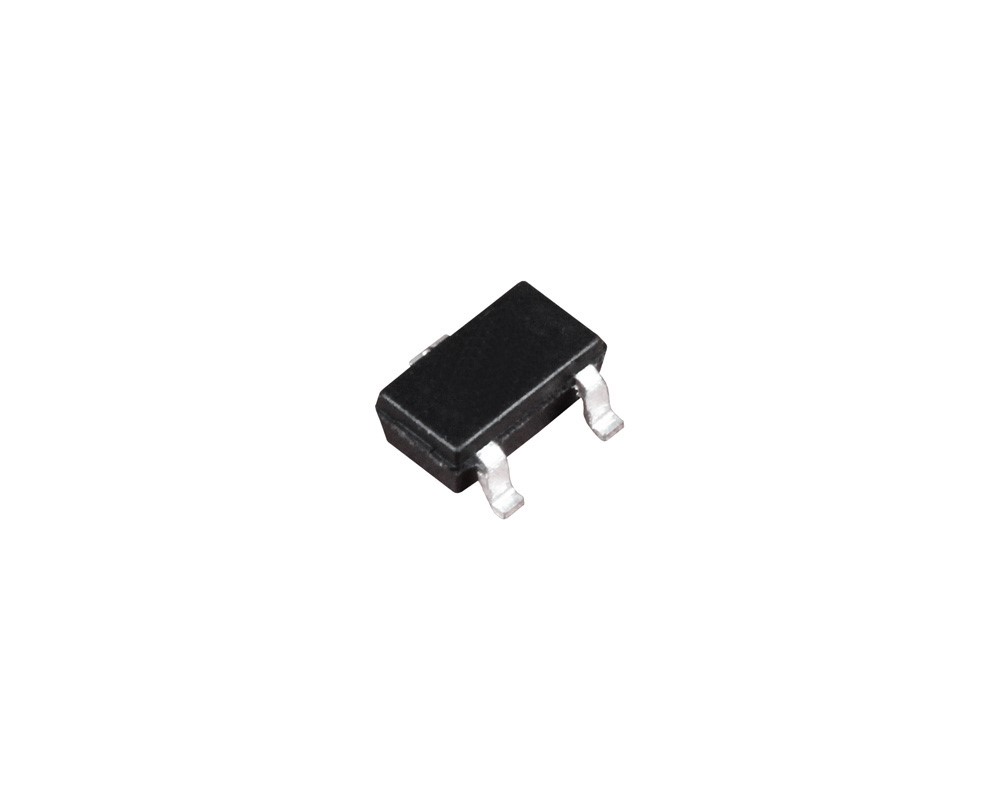

  • TO92S and SOT23-3L packages
Technical Properties
more
Close menu
Power Supply: 3.8V ~ 60V DC
Operating Temperature: -40°C ~ +150°C
Package/Size: TO92S/4.1x3.18x1.58mm, SOT23-3L/ 2.92 x 1.60 x 1.15 mm
Operation Point: 1.0 mT ~ 4.0 mT
Release Point: -4.0mT ~ -1.0mT
Hysteresis: 5.0mT
Max. Supply current/voltage: 40mA/80V
Data Sheets
more
Close menu
Data sheets to download:
