Bipolar Hall Effect Latching Switch Ics CYD504, Power Supply: 2.7V -30V, supply current: 25mA

Quantity	Unit price
until 9	€ 1.06 *
from 10	€ 0.88 *
from 20	€ 0.74 *
from 50	€ 0.61 *
from 100	€ 0.51 *
from 200	€ 0.43 *
from 500	€ 0.36 *
from 1000	€ 0.30 *
from 3000	€ 0.27 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Article-Nr: CYD504-UA
Serial-Nr: CYD504
Request on this Article
Data sheet download
Data sheet download (Deutsch)

CYD504 Hall Effect Switch is a monolithic integrated circuit which switches in response to... more

Close menu

Bipolar Hall Effect Latching Switch Ics CYD504, Power Supply: 2.7V -30V, supply current: 25mA

CYD504 Hall Effect Switch is a monolithic integrated circuit which switches in response to magnetic field. If a magnetic field with flux lines perpendicular to the sensitive area is applied to the sensor, the biased Hall plate forces a Hall voltage proportional to this field. The Hall voltage is compared with the actual threshold level in the comparator. If the magnetic field exceeds the threshold levels, the output stage is switched to the appropriate state. The built-in hysteresis eliminates oscillation and provides switching behavior of output without bouncing.

Applications

Brushless DC motors
Speed measurement
Counting
Angle position detection
Proximity detection
Home applications
Home safety

Features

2.7V to 30V operation voltage
Overvoltage protection capability up to 40 V
High accuracy bipolar switch
Built-in dynamic offset cancellation
Open drain output
Low thermal drift of magnetic sensing
Qualified according to AEC-Q100 test standard

Close menu

Operating Temperature:	-40°C ~ +150°C
Operation Point:	8 mT
Release Point:	-8.0 mT

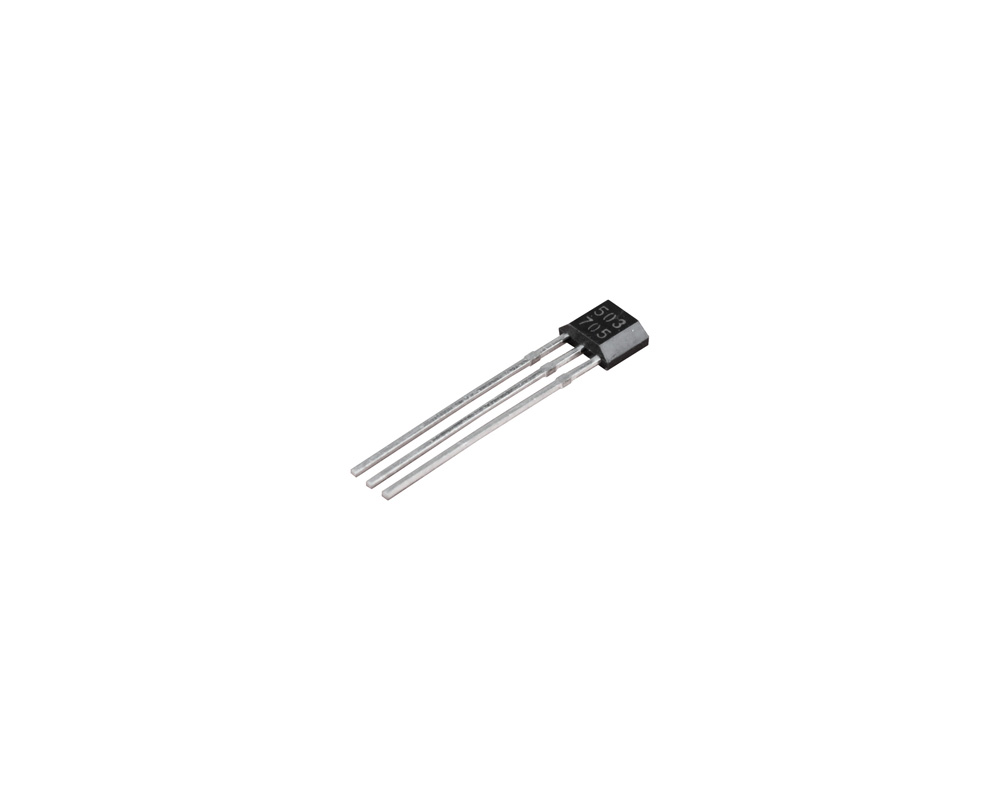

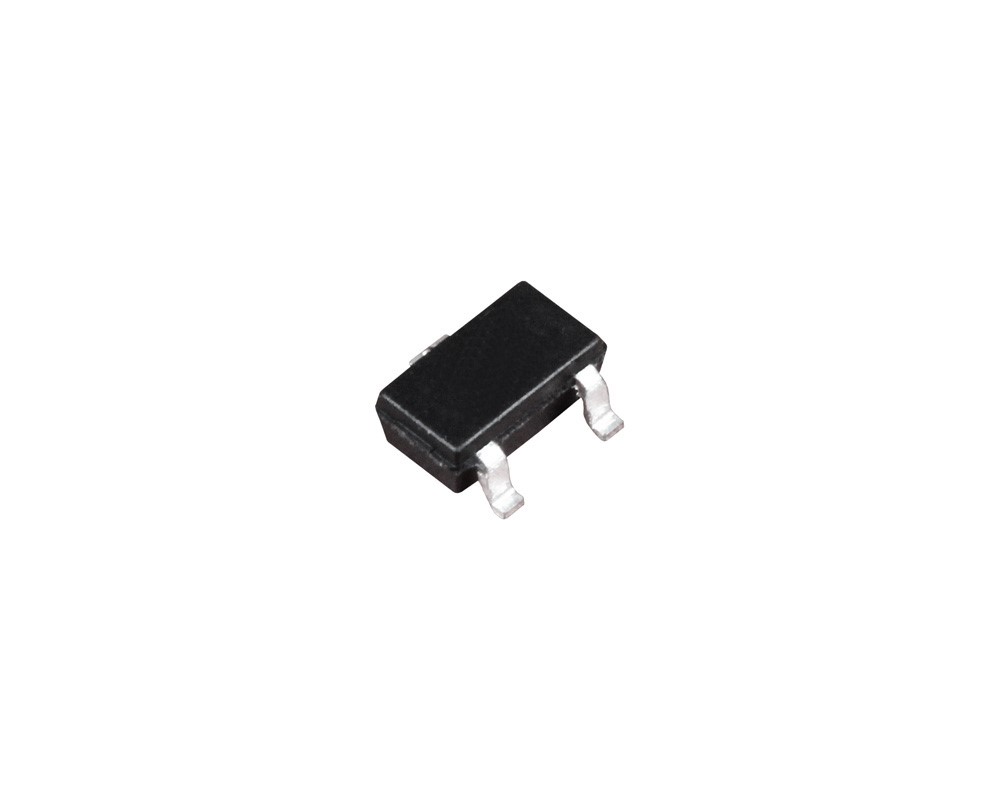

Package/Size:	TO92S/4.1x3.18x1.58mm, SOT23-3L/ 2.92 x 1.60 x 1.15 mm
Power Supply:	2.7V ~ 30V DC
Max. Supply current/voltage:	25mA/30V
Hysteresis:	16mT

Close menu
