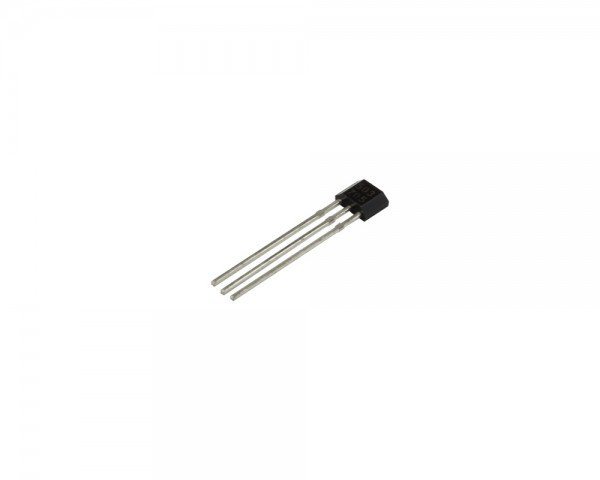

Bipolar Hall Effect Latching Switch Ics CYD72X,Power Supply: 2,4V -16 V, Supply Current: 10 mA, Operating Temperature: -20°C~+100°C

Bipolar Hall Effect Latching Switch Ics CYD72X,Power Supply: 2,4V -16 V, Supply Current: 10 mA, Operating Temperature: -20°C~+100°C
Quantity Unit price
until 9 € 0.83 *
from 10 € 0.70 *
from 20 € 0.58 *
from 50 € 0.49 *
from 100 € 0.40 *
from 200 € 0.33 *
from 500 € 0.29 *
from 1000 € 0.21 *
from 3000 € 0.19 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 1606 pieces (3-4 weeks if more)

CYD72X is a Hall sensor with latched digital output. It’s suitable for electronic commutation of... more
Bipolar Hall Effect Latching Switch Ics CYD72X,Power Supply: 2,4V -16 V, Supply Current: 10 mA, Operating Temperature: -20°C~+100°C

CYD72X is a Hall sensor with latched digital output. It’s suitable for electronic commutation of brushless DC motor applications. The CYD72X uses a chopper amplifier for magnetic signal amplification, which can achieve a low offset. Thus, it provides precise magnetic switching thresholds. If a magnetic flux density is larger than threshold Bop, NO is turned on (low). The output state is held until a magnetic flux density reversal falls below Brp causing NO to be turned off (high).

Features

  • Maximum output sink current 50mA
  • Reverse polarity protection
  • Open collector pre-driver
  • Package : SIP-3L
Package/Size: SIP3L/4.1x3.05x1.50mm
Max. Supply current/voltage: 10 mA
Operation Point: 2.5 mT
Release Point: -2.5 mT
Hysteresis: 5.0 mT
Power Supply: 2.4V ~ 16V DC
Operating Temperature: -20°C ~ +100°C
Daten zum Produkthersteller more

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
