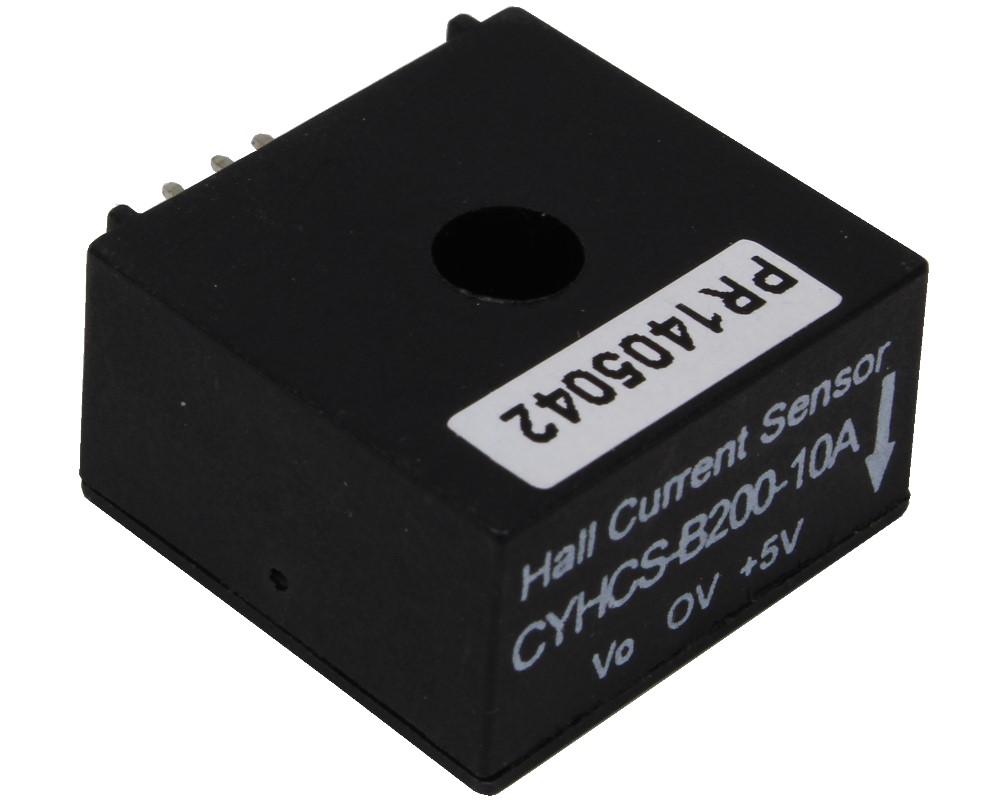

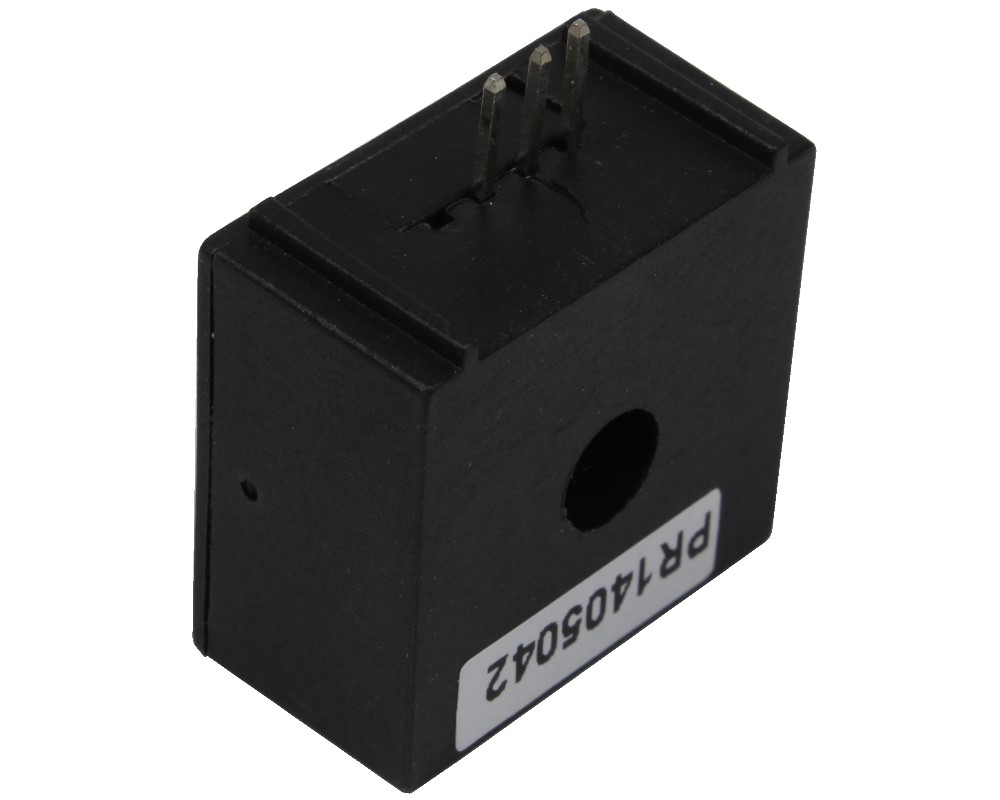

Closed Loop Hall Effect AC/DC Current Sensor CYHCS-B200, Output: +2.5 V DC ±1 V AC/DC, Power Supply: +5 V DC, Window: Ø 5 mm

Preview: Closed Loop Hall Effect AC/DC Current Sensor CYHCS-B200, Output: +2.5 V DC ±1 V AC/DC, Power Supply: +5 V DC, Window: Ø 5 mm Preview: Closed Loop Hall Effect AC/DC Current Sensor CYHCS-B200, Output: +2.5 V DC ±1 V AC/DC, Power Supply: +5 V DC, Window: Ø 5 mm
Closed Loop Hall Effect AC/DC Current Sensor CYHCS-B200, Output: +2.5 V DC ±1 V AC/DC, Power Supply: +5 V DC, Window: Ø 5 mm
Closed Loop Hall Effect AC/DC Current Sensor CYHCS-B200, Output: +2.5 V DC ±1 V AC/DC, Power Supply: +5 V DC, Window: Ø 5 mm

Quantity Unit price
until 4 € 15.89 *
from 5 € 14.45 *
from 10 € 13.14 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 146 pieces (3-4 weeks if more)

Nominal Input Current:

Description Technical Properties Data Sheets Product Safety Information
Description
This Hall Effect current sensor is based on closed loop principle and designed with a high... more
Close menu
Closed Loop Hall Effect AC/DC Current Sensor CYHCS-B200, Output: +2.5 V DC ±1 V AC/DC, Power Supply: +5 V DC, Window: Ø 5 mm

This Hall Effect current sensor is based on closed loop principle and designed with a high galvanic isolation between primary and secondary circuits. It can be used for measurement of DC and AC current, pulse currents etc. The output of the transducer reflects the real wave of the current carrying conductor.

Product Characteristics

  • Excellent accuracy
  • Very good linearity
  • Small size and encapsulated
  • Less power consumption
  • Current overload capability

Applications

  • Photovoltaic equipment
  • General Purpose Inverters
  • AC/DC Variable Speed Drivers
  • Battery Supplied Applications
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies
Technical Properties
more
Close menu
Nominal Input Current: 0-10A, 0-20A, 0-25A, 0-40A
Sensor Type: Closed-Loop
Power Supply: +5 V DC
Output Signal: +2,5 V ± 1 V AC/DC
Current Type: AC/DC
Window Type: Round
Window Size (mm): Ø 5
Direction: bidirectional
Accuracy: 0.7%
Linearity: 0.1%
Operating Temperature: -25°C ~ +85°C
Frequency Bandwith: DC ~ 200kHz
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
