Closed Loop Hall Effect AC/DC Current Sensor CYHCS-D8, Output: 100 mA / 200 mA AC/DC, Power Supply: ±15 V ~ ±24 V DC, Window: Ø 40,5 mm, Connector: Molex

Preview: Closed Loop Hall Effect AC/DC Current Sensor CYHCS-D8, Output: 100 mA / 200 mA AC/DC, Power Supply: ±15 V ~ ±24 V DC, Window: Ø 40,5 mm, Connector: Molex Preview: Closed Loop Hall Effect AC/DC Current Sensor CYHCS-D8, Output: 100 mA / 200 mA AC/DC, Power Supply: ±15 V ~ ±24 V DC, Window: Ø 40,5 mm, Connector: Molex
Closed Loop Hall Effect AC/DC Current Sensor CYHCS-D8, Output: 100 mA / 200 mA AC/DC, Power Supply: ±15 V ~ ±24 V DC, Window: Ø 40,5 mm, Connector: Molex
Closed Loop Hall Effect AC/DC Current Sensor CYHCS-D8, Output: 100 mA / 200 mA AC/DC, Power Supply: ±15 V ~ ±24 V DC, Window: Ø 40,5 mm, Connector: Molex

from € 68.88 *

Prices incl. VAT excl. Shipping Costs

Nominal Input Current:

Description Technical Properties Data Sheets Product Safety Information
Description
This Hall Effect current sensor is based on closed loop compensating principle and can be used... more
Close menu
Closed Loop Hall Effect AC/DC Current Sensor CYHCS-D8, Output: 100 mA / 200 mA AC/DC, Power Supply: ±15 V ~ ±24 V DC, Window: Ø 40,5 mm, Connector: Molex

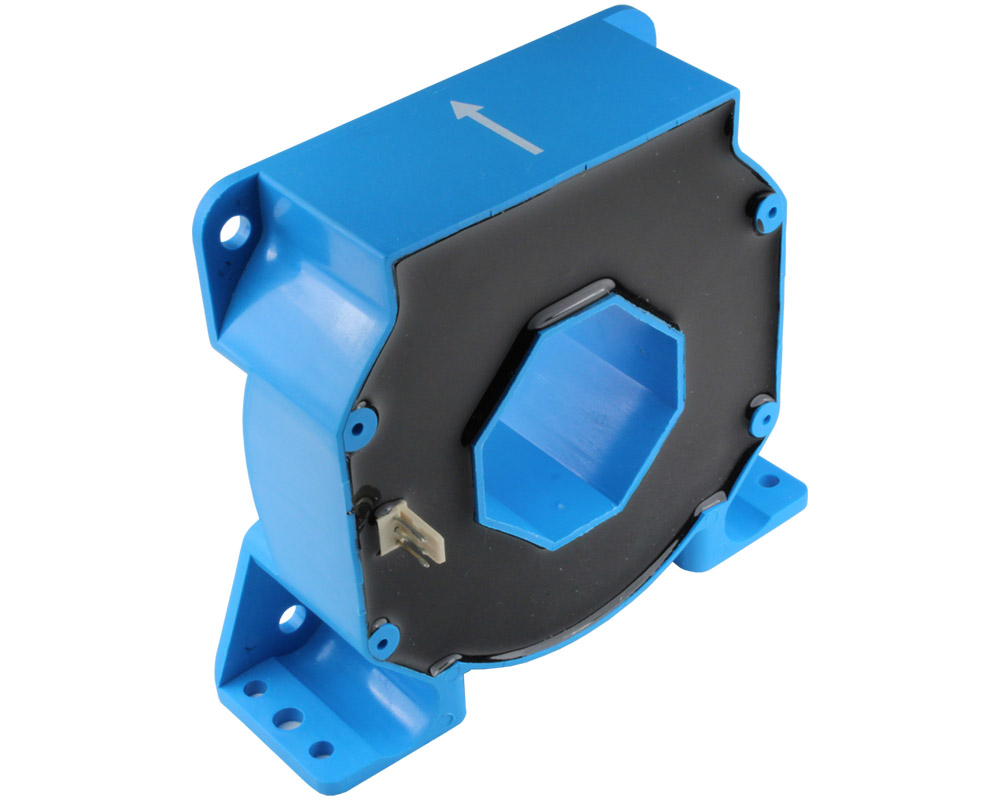

This Hall Effect current sensor is based on closed loop compensating principle and can be used for measurement of DC and AC current, pulse currents etc. The output of the transducer reflects the real wave of the current in the carrying conductor.

Product Characteristics

  • Excellent accuracy
  • Very good linearity
  • Small size and encapsulated
  • Less power consumption

Applications

  • Photovoltaic equipment
  • General Purpose Inverters
  • AC/DC Variable Speed Drivers
  • Battery Supplied Applications
  • Uninterruptible Power Supplies
  • Switched Mode Power Supplies



Technical Properties
more
Close menu
Nominal Input Current: 0-500A, 0-1000A
Sensor Type: Closed-Loop
Power Supply: ±15V ~ ±24V DC
Output Signal: ±100 mA AC/DC, ±200mA AC/DC
Current Type: AC/DC
Window Type: Round
Window Size (mm): Ø 40.5
Direction: bidirectional
Accuracy: 0,5%
Linearity: 0.1%
Operating Temperature: -25°C ~ +85°C
Frequency Bandwith: DC ~ 150kHz
