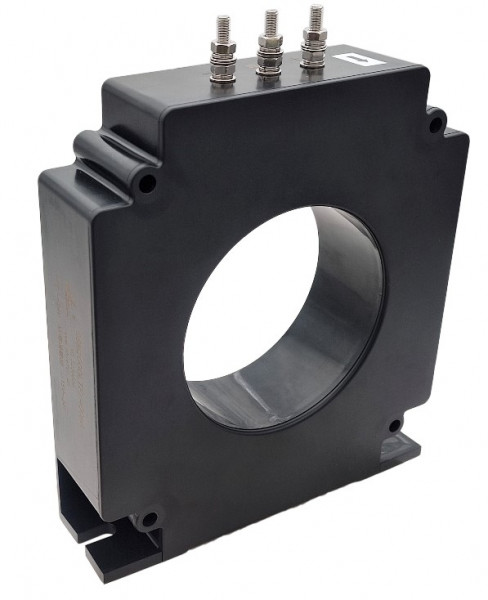

Closed Loop Hall Effect AC/DC Current Sensor CYHCS-LTF, Output: 200 / 400 / 600 mA AC/DC, Power Supply: ±15 V ~ ±24 V DC, Window: Ø 120 mm

Closed Loop Hall Effect AC/DC Current Sensor CYHCS-LTF, Output: 200 / 400 / 600 mA AC/DC, Power Supply: ±15 V ~ ±24 V DC, Window: Ø 120 mm
Quantity Unit price
until 4 € 452.90 *
from 5 € 431.33 *
from 10 € 410.79 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input/Output Current:

Description Technical Properties Data Sheets
Description
This Hall Effect current sensor is based on closed loop compensating principle and can be used... more
Close menu
Closed Loop Hall Effect AC/DC Current Sensor CYHCS-LTF, Output: 200 / 400 / 600 mA AC/DC, Power Supply: ±15 V ~ ±24 V DC, Window: Ø 120 mm

This Hall Effect current sensor is based on closed loop compensating principle and can be used for measurement of DC and AC current, pulse currents etc. The output of the transducer reflects the real wave of the current carrying conductor.

Product Characteristics

  • Excellent accuracy
  • Very good linearity
  • Small size and encapsulated
  • Less power consumption
  • Current overload capability

Applications

  • Photovoltaic equipment
  • General Purpose Inverters
  • AC/DC Variable Speed Drivers
  • Battery Supplied Applications
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies
Technical Properties
more
Close menu
Nominal Input Current: 0-1000A, 0-2000A, 0-3000A
Sensor Type: Closed-Loop
Power Supply: ±15V ~ ±24V DC
Output Signal: ±600mA AC/DC, ±200mA AC/DC, ±400 mA AC/DC
Current Type: AC/DC
Window Type: Round
Window Size (mm): ø 120
Direction: bidirectional
Accuracy: 0,3%
Linearity: 0.1%
Operating Temperature: -40°C ~ +85°C
Frequency Bandwith: DC ~ 100kHz
Data Sheets
more
Close menu
Data sheets to download:
