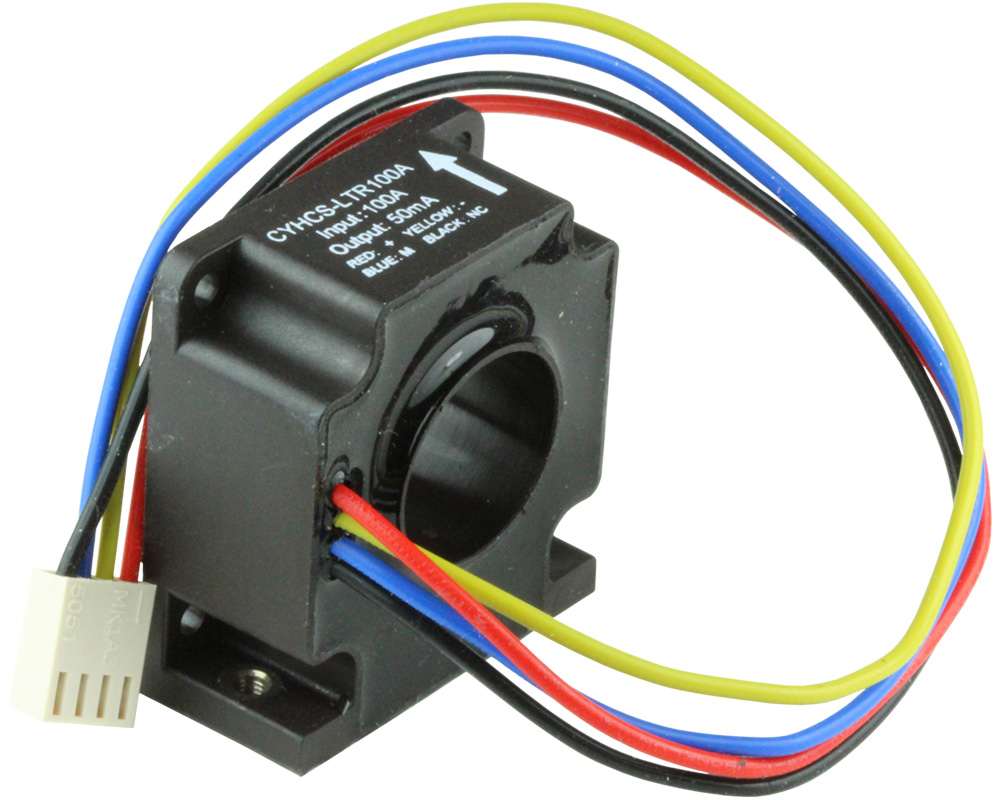

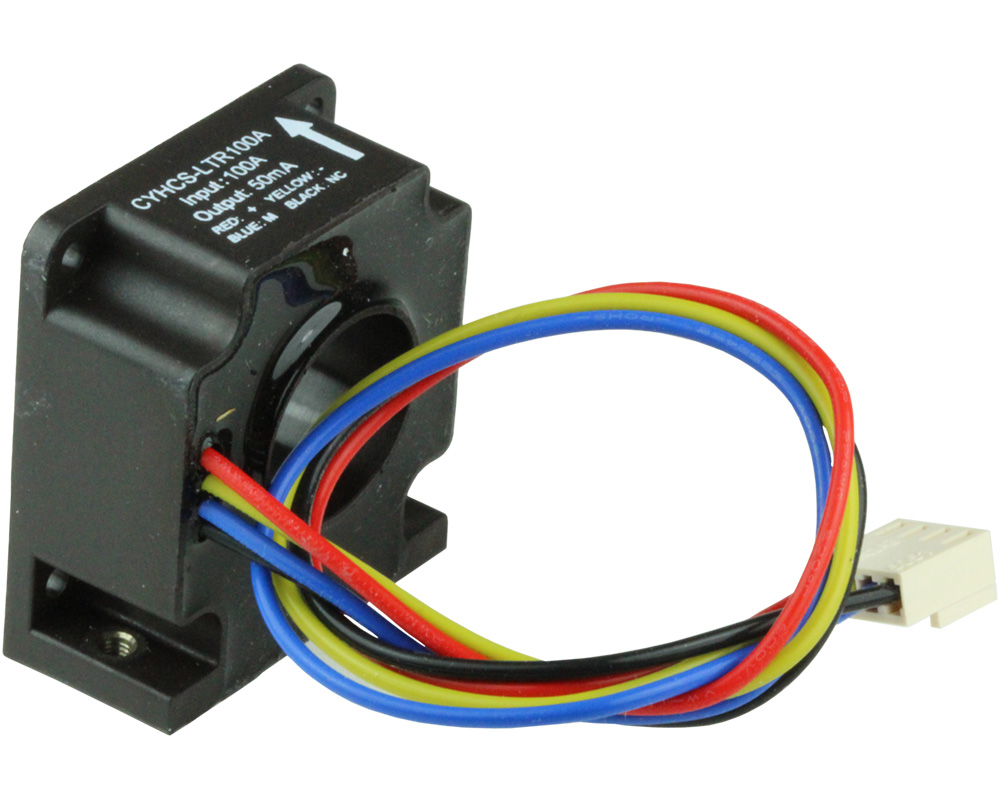

SONNECY Closed Loop Hall Effect AC/DC Current Sensor CYHCS-L...

Preview: Closed Loop Hall Effect AC/DC Current Sensor CYHCS-LTR, Output: 50 mA-100 mA AC/DC, Power Supply: ±12 V ~ ±18 V DC, Window: Ø 20.2 mm

Closed Loop Hall Effect AC/DC Current Sensor CYHCS-LTR, Output: 50 mA-100 mA AC/DC, Power Supply: ±12 V ~ ±18 V DC, Window: Ø 20.2 mm

Quantity	Unit price
until 4	€ 21.25 *
from 5	€ 19.31 *
from 10	€ 17.56 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
for quantities up to available stock of 36 pieces (3-4 weeks if more)

This Hall Effect current sensor is based on closed loop compensating principle and designed with... more

Close menu

Closed Loop Hall Effect AC/DC Current Sensor CYHCS-LTR, Output: 50 mA-100 mA AC/DC, Power Supply: ±12 V ~ ±18 V DC, Window: Ø 20.2 mm

This Hall Effect current sensor is based on closed loop compensating principle and designed with a high galvanic isolation between primary conductor and secondary circuit. The output from the current sensor is the balancing current which is a perfect image of the primary current reduced by the number of secondary turns. It can be used for measurement of DC and AC current, pulse currents etc. The output of the transducer reflects the real wave of the current carrying conductor.

Product Characteristics

Excellent accuracy
Very good linearity
Small size and encapsulated
Less power consumption
Current overload capability

Applications

Photovoltaic equipment
General Purpose Inverters
AC/DC Variable Speed Drivers
Battery Supplied Applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies

Close menu

Nominal Input Current:	0-100A, 0-200A, 0-300A
Sensor Type:	Closed-Loop
Power Supply:	±12V ~ ±18V DC
Output Signal:	±50 mA AC/DC, ±100 mA AC/DC
Current Type:	AC/DC
Window Type:	Round
Window Size (mm):	Ø 20.2
Direction:	bidirectional
Accuracy:	0,5%
Linearity:	0.1%
Operating Temperature:	-25°C ~ +85°C
Frequency Bandwith:	DC ~ 100kHz

Close menu

Data sheets to download:
