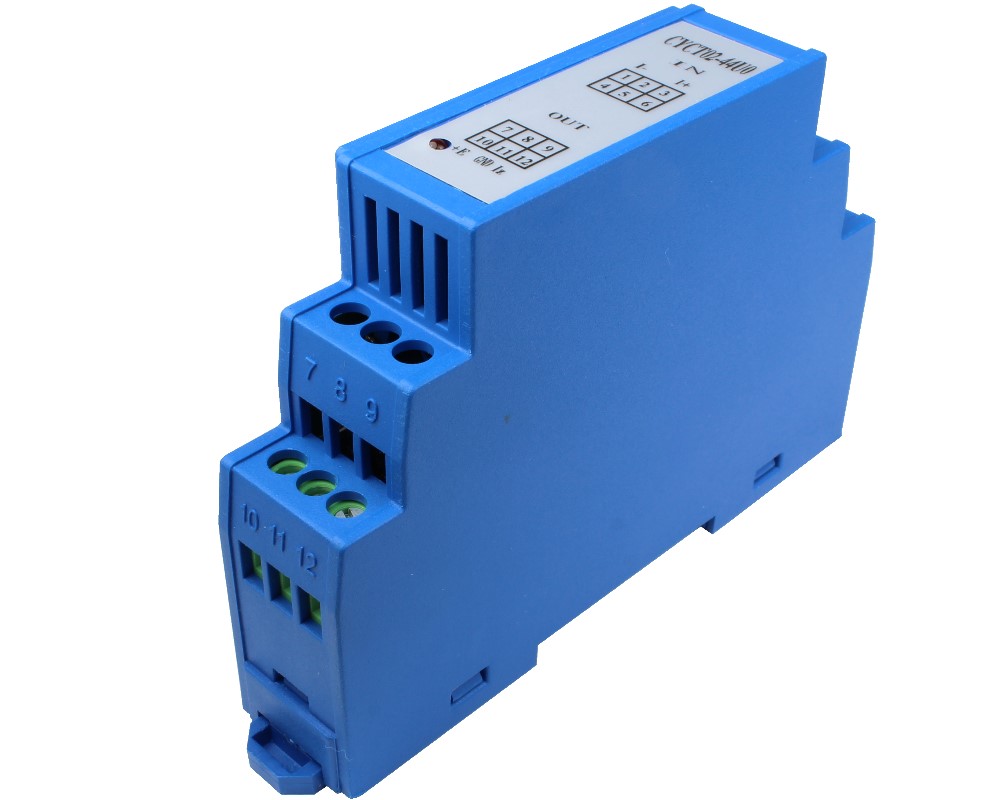

DC Current Sensor CYCT02-84U0, Output: 0-10 V DC, Power Supply: +24 V DC

Preview: DC Current Sensor CYCT02-84U0, Output: 0-10 V DC, Power Supply: +24 V DC Preview: DC Current Sensor CYCT02-84U0, Output: 0-10 V DC, Power Supply: +24 V DC
DC Current Sensor CYCT02-84U0, Output: 0-10 V DC, Power Supply: +24 V DC
DC Current Sensor CYCT02-84U0, Output: 0-10 V DC, Power Supply: +24 V DC

Quantity Unit price
until 4 € 84.49 *
from 5 € 76.80 *
from 10 € 69.83 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Current:

Description Technical Properties Data Sheets Product Safety Information
Description
The CYCT02-xnU0 DC current sensor/transducer works according Magnetic Modulation and is designed... more
Close menu
DC Current Sensor CYCT02-84U0, Output: 0-10 V DC, Power Supply: +24 V DC

The CYCT02-xnU0 DC current sensor/transducer works according Magnetic Modulation and is designed for applications to measurement and monitoring of DC current. The output signal (DC voltage or current) of this transducer is proportional to the input DC current. They are suitable for measurements and long time monitoring of DC currents and can applied to power supply management, DC motor drivers, battery chargers and systems etc.

Technical Properties
more
Close menu
Nominal Input Current: 0-1mA, 0-5mA, 0-10mA, 0-50mA, 0-100mA, 0-500mA, 0-1A, 0-2A, 0-3A, 0-4A, 0-5A
Current Type: DC
Output Signal: 0-10 V DC
Power Supply: +24 V DC
Response Time: ≤350ms
Operating Temperature: -10°C ~ +60°C
Direction: unidirectional
Window Type: No Window
Accuracy: 0.2%
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
