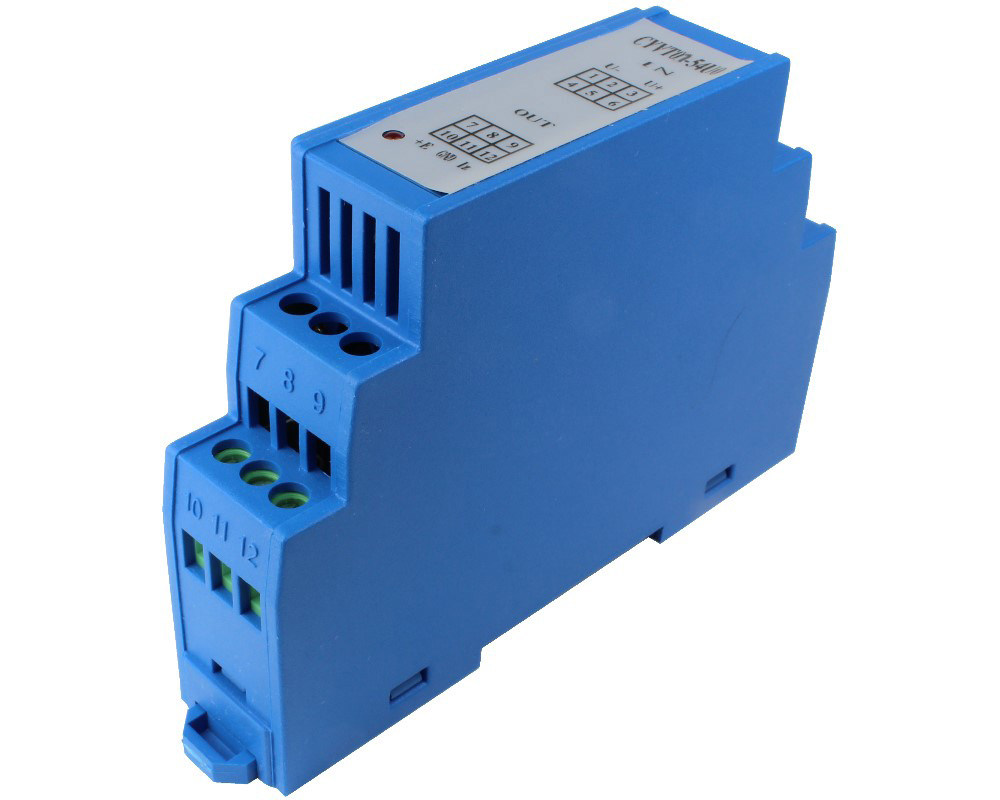

DC Voltage Sensor CYVT01-84U0, Output: 0-10 V DC, Power Supply: +24 V DC,

Preview: DC Voltage Sensor CYVT01-84U0, Output: 0-10 V DC, Power Supply: +24 V DC, Preview: DC Voltage Sensor CYVT01-84U0, Output: 0-10 V DC, Power Supply: +24 V DC,
DC Voltage Sensor CYVT01-84U0, Output: 0-10 V DC, Power Supply: +24 V DC,
DC Voltage Sensor CYVT01-84U0, Output: 0-10 V DC, Power Supply: +24 V DC,

Quantity Unit price
until 4 € 111.44 *
from 5 € 101.32 *
from 10 € 92.11 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Voltage:

Description Technical Properties Data Sheets
Description
The CYVT01-xnU0 DC voltage sensor/transducer works according to Linear Photoelectrical Isolation... more
Close menu
DC Voltage Sensor CYVT01-84U0, Output: 0-10 V DC, Power Supply: +24 V DC,

The CYVT01-xnU0 DC voltage sensor/transducer works according to Linear Photoelectrical Isolation and is designed for applications to measurement and monitoring of DC voltage. The output signal (DC voltage or current) of this transducer is proportional to the input DC voltage. They are suitable for measurements and long time monitoring of DC voltages and can applied to power supply management, DC motor drivers, battery chargers and systems etc.



Technical Properties
more
Close menu
Current Type: DC
Input Voltage Range: 0-10mV DC, 0-20mV DC, 0-50mV DC, 0-100mV DC, 0-200mV DC, 0-500mV DC, 0-1V DC, 0-2V DC, 0-5V DC, 0-10V DC, 0-20V DC, 0-50V DC, 0-100V DC, 0-200V DC, 0-500V DC, 0-1000V DC
Power Supply: +24V DC
Direction: unidirectional
Isolation voltage: 1.5-2.5kV DC, 1min
Thermal drift: 100-350ppm/°C;
Response Time: ≤350ms
Operating Temperature: -10°C ~ +60°C
Accuracy: 0,2%
Output Signal: 0-10V DC
Data Sheets
more
Close menu
Data sheets to download:
