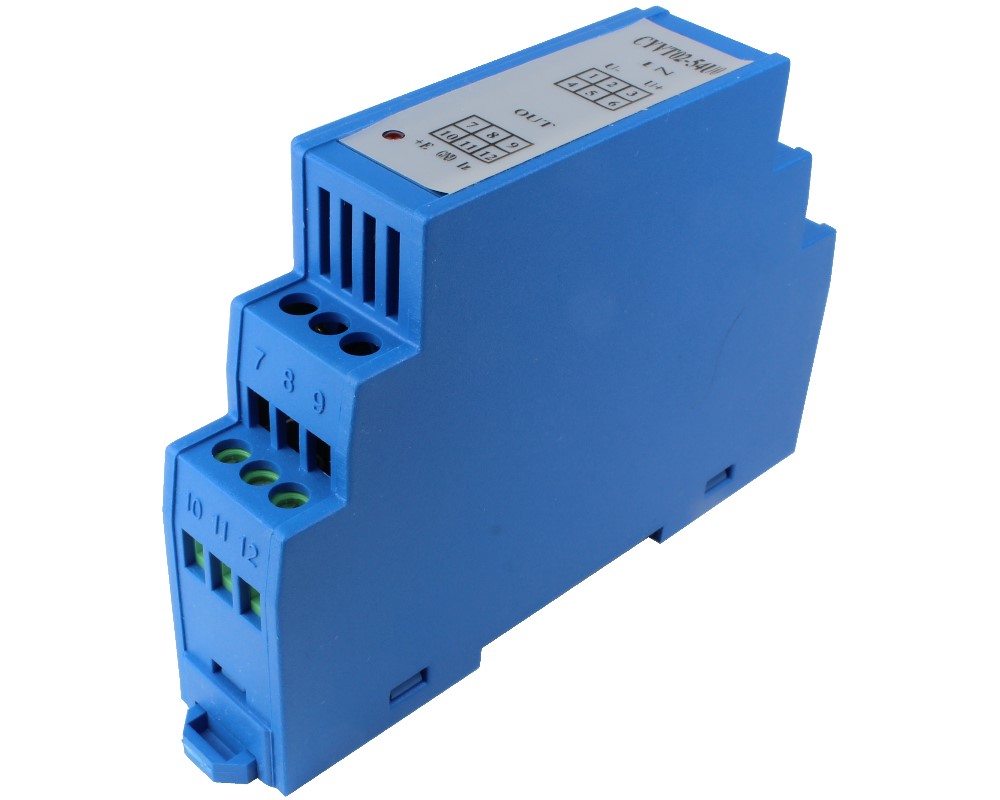

DC Voltage Sensor CYVT02-84U0, Output: 0-10 V DC, Power Supply: +24 V DC

Preview: DC Voltage Sensor CYVT02-84U0, Output: 0-10 V DC, Power Supply: +24 V DC Preview: DC Voltage Sensor CYVT02-84U0, Output: 0-10 V DC, Power Supply: +24 V DC
DC Voltage Sensor CYVT02-84U0, Output: 0-10 V DC, Power Supply: +24 V DC
DC Voltage Sensor CYVT02-84U0, Output: 0-10 V DC, Power Supply: +24 V DC

Quantity Unit price
until 4 € 68.02 *
from 5 € 61.84 *
from 10 € 56.22 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Voltage:

Description Technical Properties Data Sheets
Description
The CYVT02-xnU0 DC voltage sensor/transducer works according Magnetic Modulation and is designed... more
Close menu
DC Voltage Sensor CYVT02-84U0, Output: 0-10 V DC, Power Supply: +24 V DC

The CYVT02-xnU0 DC voltage sensor/transducer works according Magnetic Modulation and is designed for applications to measurement and monitoring of DC voltage. The output signal (DC voltage or current) of this transducer is proportional to the input DC voltage. They are suitable for measurements and long time monitoring of DC voltages and can applied to power supply management, DC motor drivers, battery chargers and systems etc.

Technical Properties
more
Close menu
Current Type: DC
Direction: unidirectional
Accuracy: 0,2%
Operating Temperature: -10°C ~ +60°C
Response Time: ≤350ms
Isolation voltage: 2.5 kV DC, 1min
Thermal drift: 100ppm/°C
Input Voltage Range: 0-1000V DC
Power Supply: +24V DC
Output Signal: 0-10V DC
Data Sheets
more
Close menu
Data sheets to download:
