Dual Channel Hall Effect Switch CYD8526 With Speed and Direction Outputs, Power Supply: 3.5 ~ 24 V

Preview: Dual Channel Hall Effect Switch CYD8526 With Speed and Direction Outputs, Power Supply: 3.5 ~ 24 V Preview: Dual Channel Hall Effect Switch CYD8526 With Speed and Direction Outputs, Power Supply: 3.5 ~ 24 V Preview: Dual Channel Hall Effect Switch CYD8526 With Speed and Direction Outputs, Power Supply: 3.5 ~ 24 V
Dual Channel Hall Effect Switch CYD8526 With Speed and Direction Outputs, Power Supply: 3.5 ~ 24 V
Dual Channel Hall Effect Switch CYD8526 With Speed and Direction Outputs, Power Supply: 3.5 ~ 24 V
Dual Channel Hall Effect Switch CYD8526 With Speed and Direction Outputs, Power Supply: 3.5 ~ 24 V

Quantity Unit price
until 9 € 1.34 *
from 10 € 1.13 *
from 20 € 0.94 *
from 50 € 0.86 *
from 100 € 0.81 *
from 200 € 0.77 *
from 500 € 0.74 *
from 1000 € 0.70 *
from 3000 € 0.67 *
from 5000 € 0.64 *
from 10000 € 0.63 *
from 50000 € 0.61 *
from 100000 € 0.60 *
from 600000 € 0.56 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Description Technical Properties Data Sheets Product Safety Information
Description
The CYD8526 is a dual-channel Hall-effect sensor IC ideal for use in speed and direction sensing... more
Close menu
Dual Channel Hall Effect Switch CYD8526 With Speed and Direction Outputs, Power Supply: 3.5 ~ 24 V

The CYD8526 is a dual-channel Hall-effect sensor IC ideal for use in speed and direction sensing applications incorporating encode ring-magnet targets. The Hall elements are both photo lithographically aligned to better than 1um. Maintaining accurate displacement between the two active Hall elements eliminates the major manufacturing hurdle encountered in fine-pitch detection applications. The CYD8526 is a sensitive, temperature-stable magnetic device suitable for use in harsh automotive and industrial environments..

The Hall elements of the sensor CYD8526 are spaced 1.4mm apart, which provides excellent speed and ddirection information for small-geometric targets. Extremely low-drift amplifiers guarantee symmetry between the switches to maintain signal quadrature. An on-chip regulator allows the use of this device over a wide operating voltage range of 3.5V to 24V.

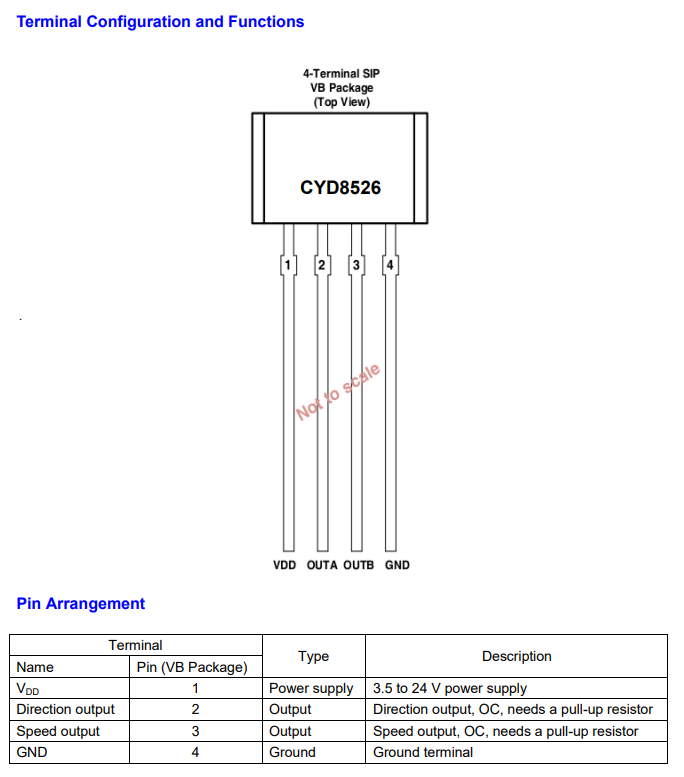

The CYD8526 is available in a 4-pin SIP package and a plastic SOT89B package. The packages are lead (Pb) free, with 100% matte tin leadframe plating.

Features

  • Two matched Hall switches on a substrate
  • Dual channel outputs for speed and direction
  • Good temperature stability
  • High sensitivity (BOP and BRP)
  • 3.5V to 24V supply voltage
  • Solid-state reliability
  • Small package sizes
  • RoHS compliant

Applications

  • Anti-pinch electric motor control
  • Motor and fan control
  • Magnetic encoder
  • Rotating shaft monitoring
  • Auto-motive transmission position
  • Garage door openers
  • Power sliding doors
  • Sunroofs motors
Technical Properties
more
Close menu
Operating Temperature: -40°C~ +150°C

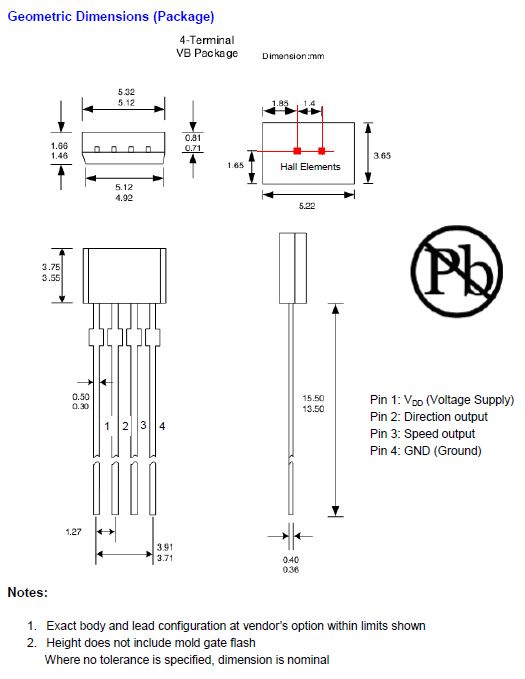

Package/Size: SIP4/5.22x3.65x1.55mm
Power Supply: 3.5V ~ 24V DC
Max. Supply current/voltage: 6.5 mA
Operation Point: 7.0 mT ~ 13.0 mT
Release Point: -13.0 mT ~ -7.0 mT
Hysteresis: 20.0 mT
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
