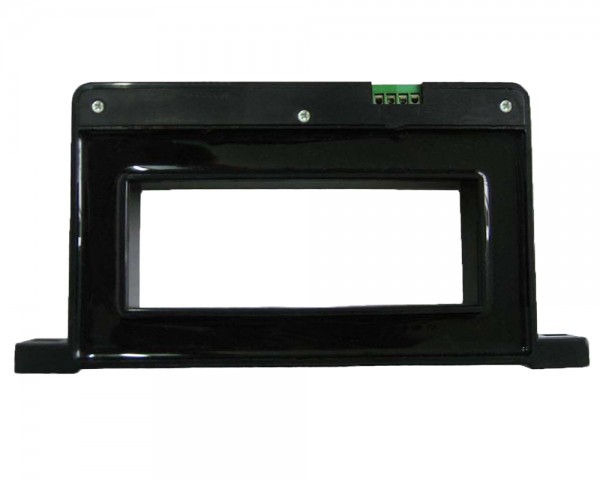

Hall Effect AC Current Sensor CYHCS-HBV, Output: 0-4V DC, Power Supply: +12V DC, Window:140x50

Hall Effect AC Current Sensor CYHCS-HBV, Output: 0-4V DC, Power Supply: +12V DC, Window:140x50
Quantity Unit price
until 4 € 221.83 *
from 5 € 201.66 *
from 10 € 183.32 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Current:

Description Technical Properties Data Sheets
Description
This Hall Effect current sensor is based on open-loop principle and designed with high galvanic... more
Close menu
Hall Effect AC Current Sensor CYHCS-HBV, Output: 0-4V DC, Power Supply: +12V DC, Window:140x50

This Hall Effect current sensor is based on open-loop principle and designed with high galvanic isolation between the primary conductor and the secondary circuit. It can be used for measurement of AC current, pulse currents, etc. The output of the transducer reflects the rectified average value of the current in the carrying conductor.

Product Characteristics:

  • Excellent accuracy
  • Very good linearity
  • easy mounting
  • Less power consumption
  • Window structure
  • Electrically isolating the output of the transducer from the current-carrying conductor
  • No insertion loss
  • Current overload capability

Applications:

  • Photovoltaic equipment
  • Frequency conversion timing equipment
  • Various power supply
  • Uninterruptible power supplies (UPS)
  • Electric welding machines
  • Transformer substation
  • Numerical controlled machine tools
  • Electrically powered locomotive
  • Microcomputer monitoring
  • Electric power network monitoring



Technical Properties
more
Close menu
Sensor Type: Open-Loop
Nominal Input Current: 0-2000A, 0-3000A, 0-4000A, 0-5000A, 0-6000A, 0-8000A, 0-9000A
Power Supply: +12 V DC
Output Signal: 0-4 V DC
Current Type: AC
Window Type: Rectangle
Window Size (mm): 140 x 50
Direction: bidirectional
Accuracy: 1%
Linearity: 0.5%
Operating Temperature: -25°C ~ +85°C
Frequency Bandwith: 20Hz - 20 kHz
Data Sheets
more
Close menu
Data sheets to download:
