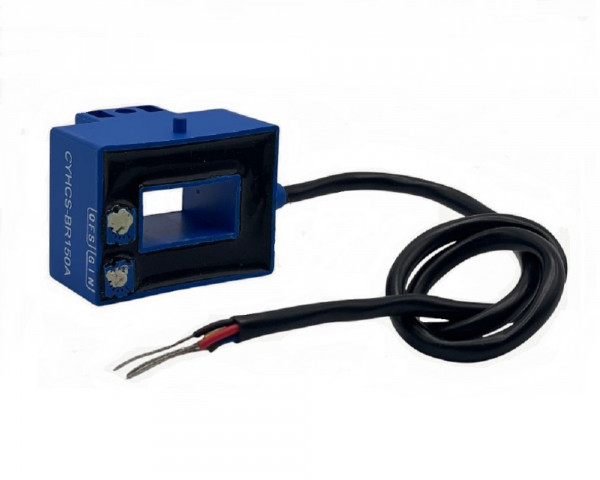

Hall Effect Current Sensor CYHCS-BR, Output: ±4V AC/DC, Power Supply: ±15V DC, Window: 20,5x10,5mm

Hall Effect Current Sensor CYHCS-BR, Output: ±4V AC/DC, Power Supply: ±15V DC, Window: 20,5x10,5mm
Quantity Unit price
until 4 € 11.46 *
from 5 € 10.42 *
from 10 € 9.47 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Current:

Description Technical Properties Data Sheets
Description
This Hall Effect current sensor is based on open loop principle and designed with a high... more
Close menu
Hall Effect Current Sensor CYHCS-BR, Output: ±4V AC/DC, Power Supply: ±15V DC, Window: 20,5x10,5mm

This Hall Effect current sensor is based on open loop principle and designed with a high galvanic isolation between primary conductor and secondary circuit. It can be used for measurement of DC and AC current, pulse currents etc. The output of the transducer reflects the real wave of the current carrying conductor.

Product Characteristics

  • Excellent accuracy
  • Very good linearity
  • Small size
  • Light in weight
  • Less power consumption
  • Window structure
  • Electrically isolating the output of the transducer from the current carrying conductor
  • No insertion loss
  • Current overload capability

Applications

  • Photovoltaic equipment
  • Frequency conversion timing equipment
  • Various power supply
  • Uninterruptible power supplies (UPS)
  • Electric welding machines
  • Transformer substation
  • Numerical controlled machine tools
  • Electrolyzing and electroplating equipment
  • Electric powered locomotive
  • Microcomputer monitoring
  • Electric power network monitoring
Technical Properties
more
Close menu
Nominal Input Current: 0-50A, 0-100A, 0-200A, 0-300A, 0-400A, 0-500A, 0-600A
Sensor Type: Open-Loop
Power Supply: ±15 V DC
Output Signal: ±4V AC/DC
Current Type: AC/DC
Window Type: Rectangle
Window Size (mm): 20.5 x 10.5
Direction: bidirectional
Accuracy: 1%
Linearity: 1%
Operating Temperature: -25°C ~ +85°C
Frequency Bandwith: DC ~ 50kHz
Data Sheets
more
Close menu
Data sheets to download:
