Hall Effect Gear Tooth Sensor CYGTS101DC, Output: NPN (OC), Power Supply: 4.5 V ~ 24 V DC, Cable length: 150 mm, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell)

Preview: Hall Effect Gear Tooth Sensor CYGTS101DC, Output: NPN (OC), Power Supply: 4.5 V ~ 24 V DC, Cable length: 150 mm, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell) Preview: Hall Effect Gear Tooth Sensor CYGTS101DC, Output: NPN (OC), Power Supply: 4.5 V ~ 24 V DC, Cable length: 150 mm, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell) Preview: Hall Effect Gear Tooth Sensor CYGTS101DC, Output: NPN (OC), Power Supply: 4.5 V ~ 24 V DC, Cable length: 150 mm, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell) Preview: Hall Effect Gear Tooth Sensor CYGTS101DC, Output: NPN (OC), Power Supply: 4.5 V ~ 24 V DC, Cable length: 150 mm, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell)
Hall Effect Gear Tooth Sensor CYGTS101DC, Output: NPN (OC), Power Supply: 4.5 V ~ 24 V DC, Cable length: 150 mm, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell)
Hall Effect Gear Tooth Sensor CYGTS101DC, Output: NPN (OC), Power Supply: 4.5 V ~ 24 V DC, Cable length: 150 mm, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell)
Hall Effect Gear Tooth Sensor CYGTS101DC, Output: NPN (OC), Power Supply: 4.5 V ~ 24 V DC, Cable length: 150 mm, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell)
Hall Effect Gear Tooth Sensor CYGTS101DC, Output: NPN (OC), Power Supply: 4.5 V ~ 24 V DC, Cable length: 150 mm, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell)

Quantity Unit price
until 4 € 24.56 *
from 5 € 22.51 *
from 10 € 20.47 *
from 50 € 17.62 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 503 pieces (3-4 weeks if more)

Description Technical Properties Data Sheets Product Safety Information
Description
CYGTS101DC Hall Effect Gear Tooth Sensor uses a magnetically biased Hall Effect integrated... more
Close menu

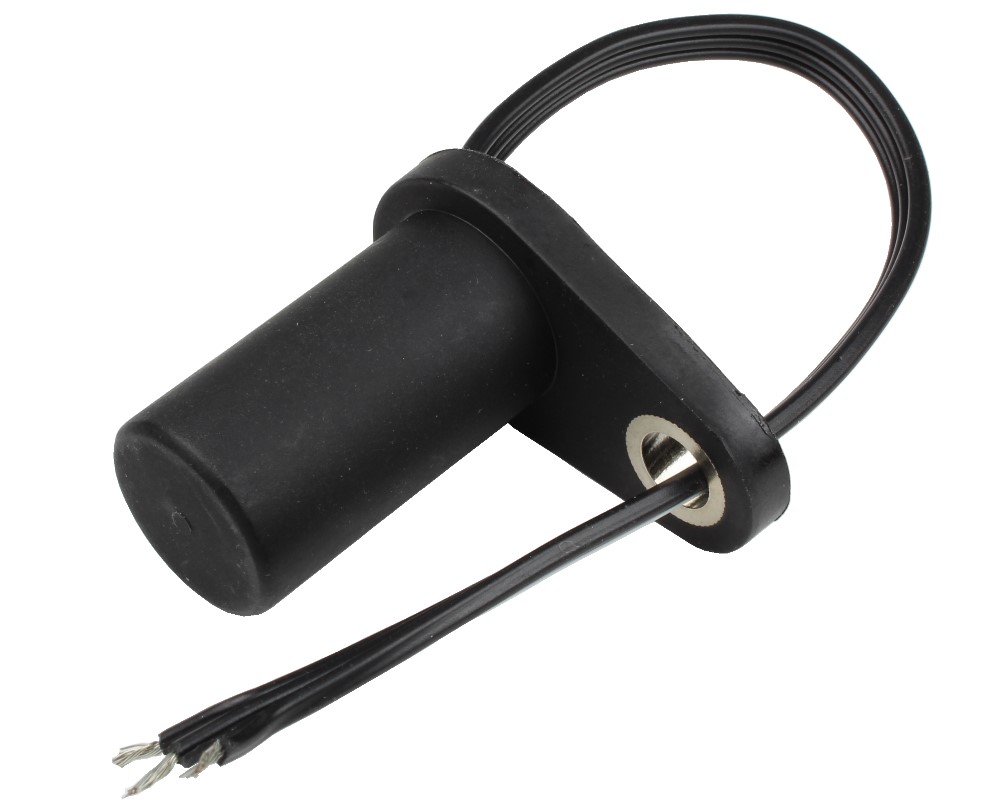

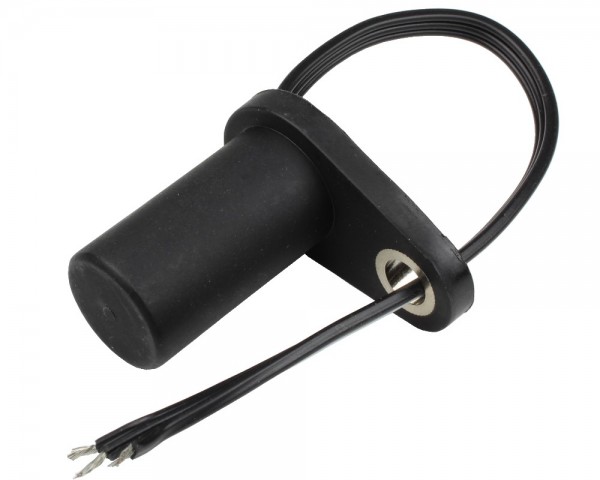

Hall Effect Gear Tooth Sensor CYGTS101DC, Output: NPN (OC), Power Supply: 4.5 V ~ 24 V DC, Cable length: 150 mm, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell)

CYGTS101DC Hall Effect Gear Tooth Sensor uses a magnetically biased Hall Effect integrated circuit to accurately sense movement of ferrous metal targets. This specially designed gear tooth sensor IC with bias magnet and discrete capacitor is sealed in plastic for physical protection and cost effective installation. The GTS IC works according to peak magnetic field detection. This Unit functions under power supply from 4.5 to 24VDC. Output is digital, current sinking (open collector, NPN). Reverse polarity protection is standard. The sensor will not be damaged if power is inadvertently wired backwards.

If you require a different cable length, please send us a request via our Contact Form.

Characteristics

  • Sensing ferrous metal targets
  • Digital current sinking output NPN (open collector)
  • Good signal-to-noise ratio
  • Excellent low speed performance
  • Output amplitude not dependent on RPM
  • Fast operating speed, over 15kHz
  • EMI resistant
  • Reverse polarity protection and transient protection
  • Wide operating temperature -40°C ~ +135°C.

Applications

Automotive and Heavy Duty Vehicles:

  • Camshaft and crankshaft speed and position
  • Transmission speed
  • Tachometers
  • Anti-skid/traction control

Industrial Areas:

  • Sprocket speed
  • Chain link conveyor speed/distance
  • Stop motion detector
  • High speed and low cost proximity
  • Tachometers, counters.
Technical Properties
more
Close menu
Diameter/Screw Size: 17,9 (diameter)
Frequency Bandwith: over 15kHz
Length: 150 mm
Operating Temperature: -40°C ~+135°C
Output type: NPN (OC)
Power Supply: 4.5V ~ 24V DC
Rise/Fall time: 10µs / 2µs
Sensing gap/distance: 0.2mm ~ 4.0mm
Sensing Object : ferrous metal targets
Cross Reference: 1GT101DC, 1GT103DC, 1GT105DC
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
