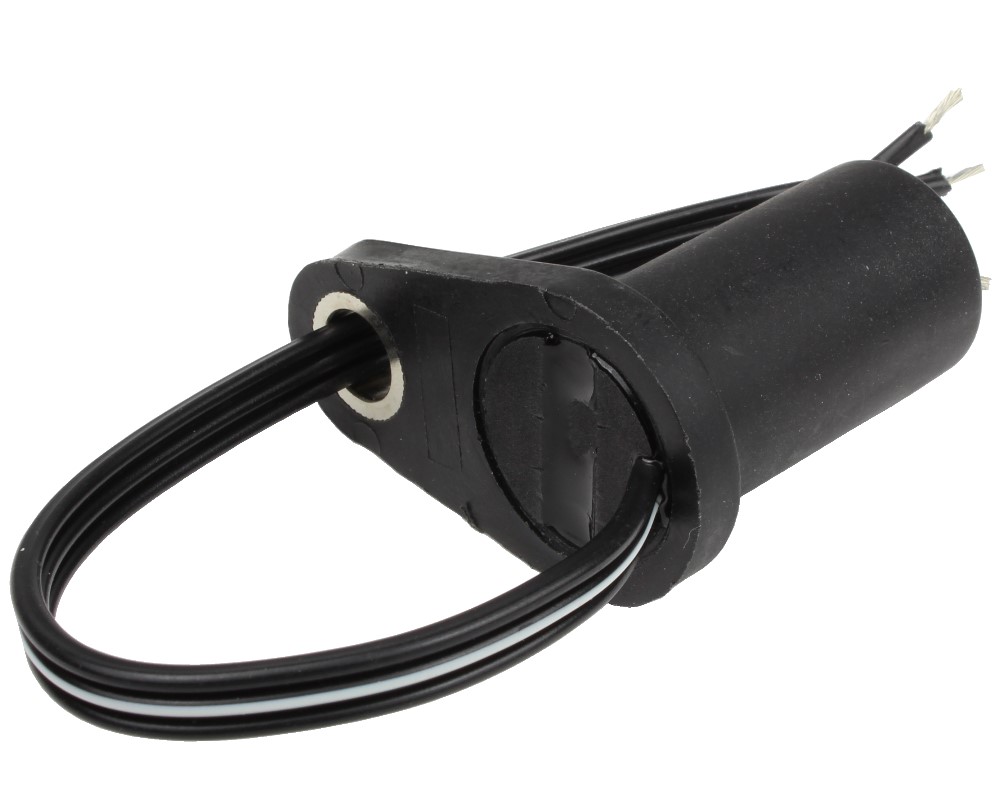

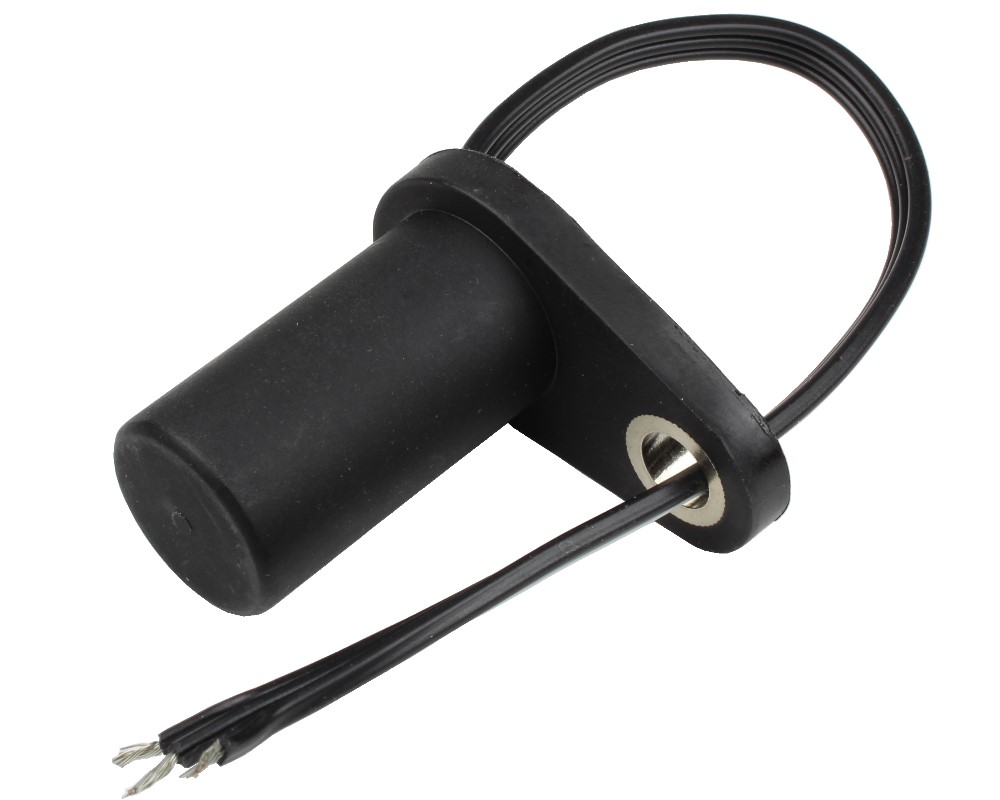

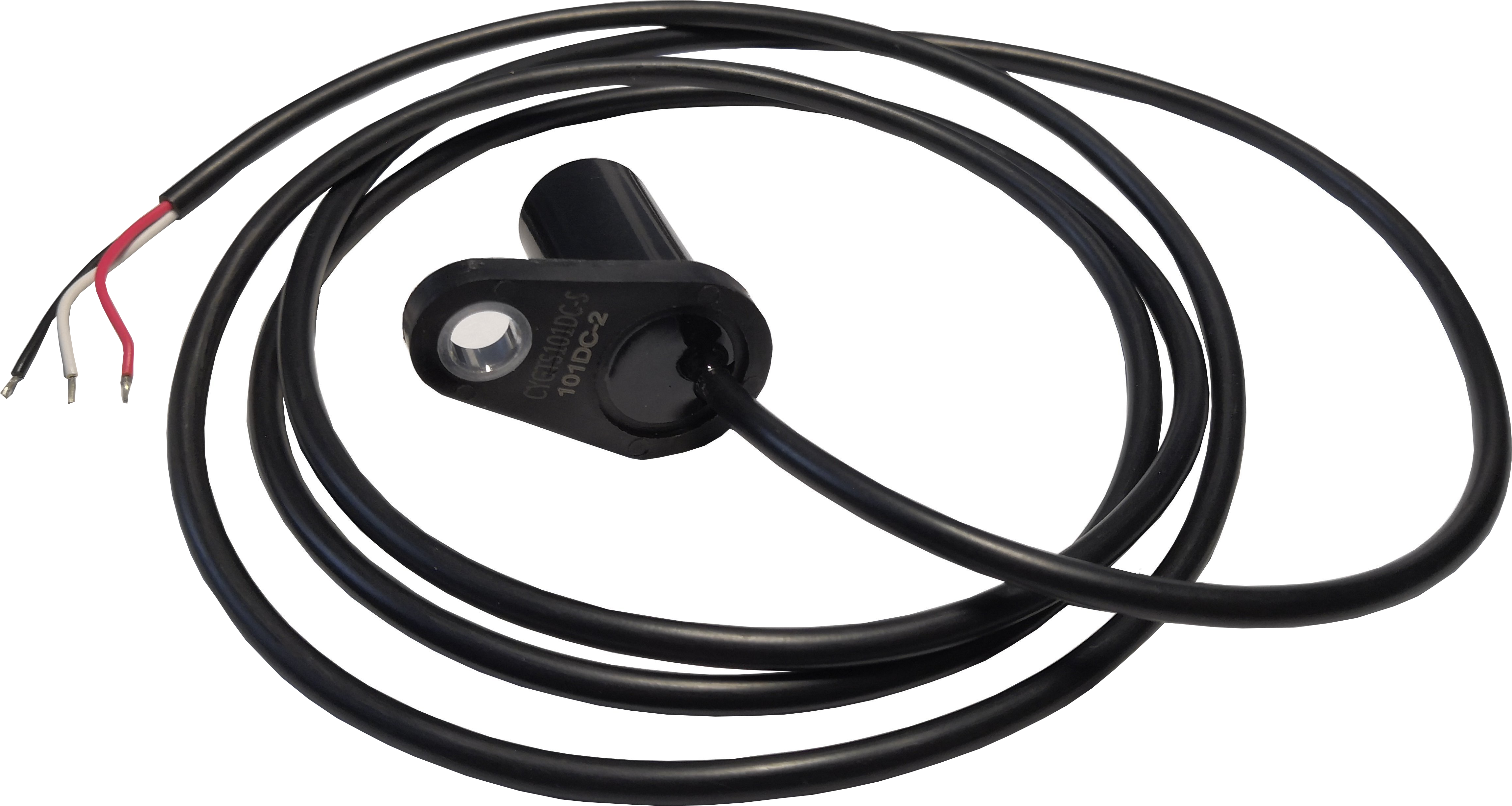

Hall Effect Gear Tooth Sensor CYGTS101RC, Output: RC (NPN or PNP), Power Supply: 4.5 V ~ 24 V DC, Cable length: 75 mm, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell)

Preview: Hall Effect Gear Tooth Sensor CYGTS101RC, Output: RC (NPN or PNP), Power Supply: 4.5 V ~ 24 V DC, Cable length: 75 mm, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell) Preview: Hall Effect Gear Tooth Sensor CYGTS101RC, Output: RC (NPN or PNP), Power Supply: 4.5 V ~ 24 V DC, Cable length: 75 mm, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell) Preview: Hall Effect Gear Tooth Sensor CYGTS101RC, Output: RC (NPN or PNP), Power Supply: 4.5 V ~ 24 V DC, Cable length: 75 mm, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell) Preview: Hall Effect Gear Tooth Sensor CYGTS101RC, Output: RC (NPN or PNP), Power Supply: 4.5 V ~ 24 V DC, Cable length: 75 mm, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell)
Hall Effect Gear Tooth Sensor CYGTS101RC, Output: RC (NPN or PNP), Power Supply: 4.5 V ~ 24 V DC, Cable length: 75 mm, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell)
Hall Effect Gear Tooth Sensor CYGTS101RC, Output: RC (NPN or PNP), Power Supply: 4.5 V ~ 24 V DC, Cable length: 75 mm, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell)
Hall Effect Gear Tooth Sensor CYGTS101RC, Output: RC (NPN or PNP), Power Supply: 4.5 V ~ 24 V DC, Cable length: 75 mm, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell)
Hall Effect Gear Tooth Sensor CYGTS101RC, Output: RC (NPN or PNP), Power Supply: 4.5 V ~ 24 V DC, Cable length: 75 mm, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell)

Quantity Unit price
until 4 € 37.56 *
from 5 € 35.27 *
from 10 € 32.65 *
from 50 € 28.88 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 10 pieces (3-4 weeks if more)

Output Type:

Description Technical Properties Data Sheets
Description
CYGTS101RC Hall Effect Gear Tooth Sensor uses a magnetically biased Hall Effect integrated... more
Close menu
Hall Effect Gear Tooth Sensor CYGTS101RC, Output: RC (NPN or PNP), Power Supply: 4.5 V ~ 24 V DC, Cable length: 75 mm, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell)

CYGTS101RC Hall Effect Gear Tooth Sensor uses a magnetically biased Hall Effect integrated circuit to accurately sense movement of ferrous metal targets. This specially designed gear tooth sensor IC with bias magnet and discrete capacitor is sealed in plastic for physical protection and cost effective installation. The GTS IC works according to peak magnetic field detection. This unit functions under power supply from 4.5 to 24VDC. Output is digital, current sinking (NPN) or current sourcing (PNP) and RC. Reverse polarity protection is standard. The sensor will not be damaged if power is inadvertently wired backwards.

Features

  • Sensing ferrous metal targets
  • Digital current sinking or sourcing output
  • Good signal-to-noise ratio
  • Excellent low speed performance
  • Output amplitude not dependent on RPM
  • Fast operating speed, over 15kHz
  • EMI resistant
  • Reverse polarity protection and transient protection
  • Wide operating temperature -40°C ~ +135°C.

Applications

Automotive and Heavy Duty Vehicles:

  • Camshaft and crankshaft speed and position
  • Transmission speed
  • Tachometers
  • Anti-skid/traction control

Industrial Areas:

  • Sprocket speed
  • Chain link conveyor speed/distance
  • Stop motion detector
  • High speed low cost proximity
  • Tachometers, counters.
Technical Properties
more
Close menu
Diameter/Screw Size: 17,9 (diameter)
Frequency Bandwith: over 15kHz
Length: 75 mm
Operating Temperature: -40°C ~+135°C
Output type: NPN (RC), PNP (RC)
Power Supply: 4.5V ~ 24V DC
Rise/Fall time: 10µs / 2µs
Sensing gap/distance: 0.2mm ~ 4.0mm
Sensing Object : ferrous metal targets
Cross Reference: 1GT101DC, 1GT103DC, 1GT105DC
Data Sheets
more
Close menu
Data sheets to download:
