SONNECY Hall Effect Gear Tooth Sensor CYGTS104U-S, Output: N...

Preview: Hall Effect Gear Tooth Sensor CYGTS104U-S, Output: NPN (OC) two output signals, Power Supply: 4.5 V ~ 24 V DC, Cable length: 1000 mm, Alternative for: Honeywell SNDH Series

Hall Effect Gear Tooth Sensor CYGTS104U-S, Output: NPN (OC) two output signals, Power Supply: 4.5 V ~ 24 V DC, Cable length: 1000 mm, Alternative for: Honeywell SNDH Series

Quantity	Unit price
until 4	€ 49.47 *
from 5	€ 45.35 *
from 10	€ 41.21 *
from 50	€ 35.46 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
for quantities up to available stock of 43 pieces (3-4 weeks if more)

Hall Effect Gear Tooth Sensor CYGTS104U-S uses two magnetically biased Hall Effect integrated... more

Close menu

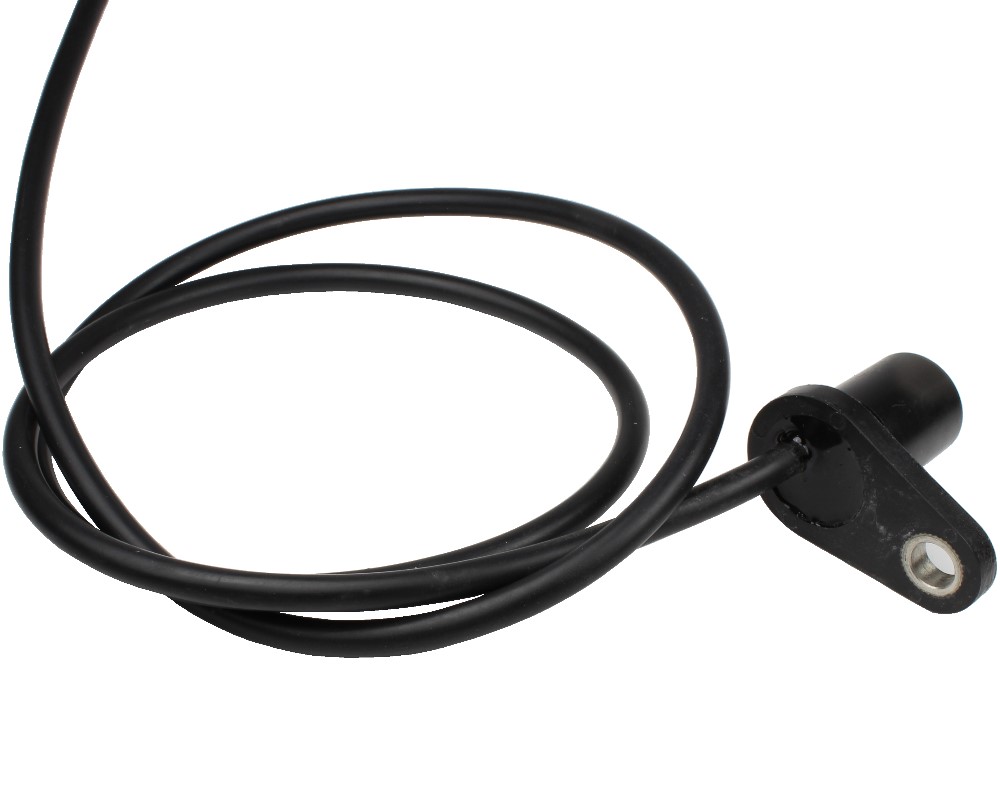

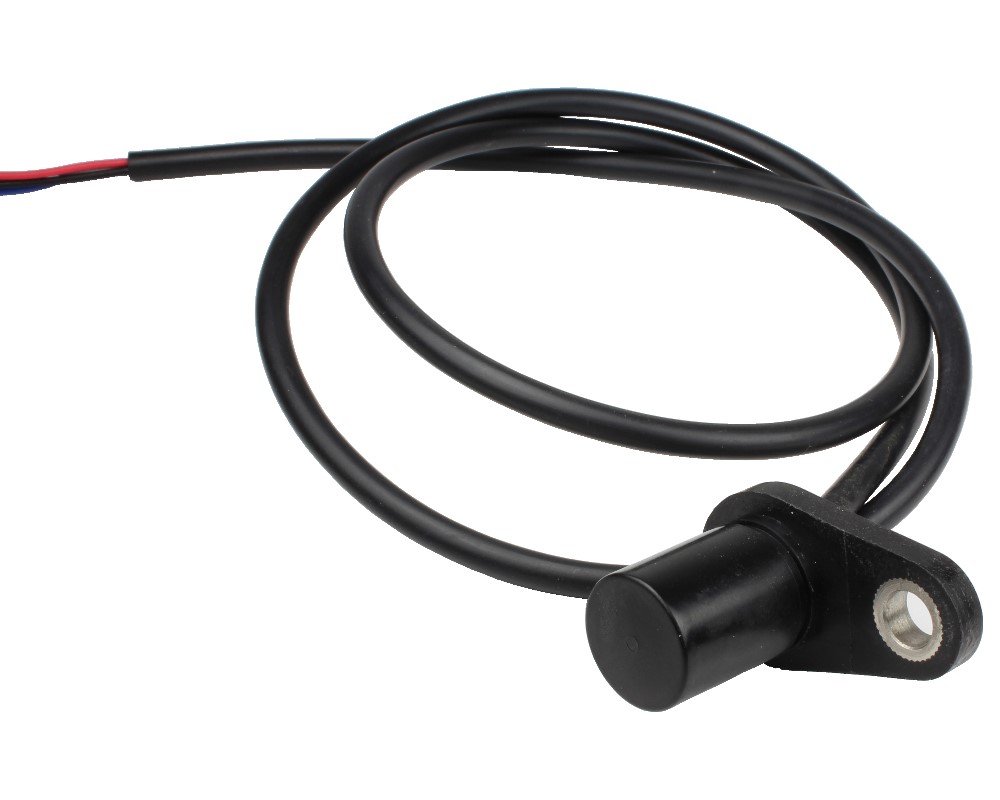

Hall Effect Gear Tooth Sensor CYGTS104U-S, Output: NPN (OC) two output signals, Power Supply: 4.5 V ~ 24 V DC, Cable length: 1000 mm, Alternative for: Honeywell SNDH Series

Hall Effect Gear Tooth Sensor CYGTS104U-S uses two magnetically biased Hall Effect integrated circuits (ICs) to accurately sense movement of ferrous metal target (measuring) wheel. These specially designed integrated circuits, with bias magnet and discrete capacitor, are sealed in plastic package for physical protection and cost effective installation. The GTS ICs work according to differential magnetic field detection. This sensor functions under power supply from 4.5 to 24VDC. Two output signals are impulse, current sinking (open collector, NPN), which can be used for rotary speed measurement with direction detection. It has the advantage of reverse polarity protection. The sensor will not be damaged if power is inadvertently wired backwards.

If you require a different cable length, please send us a request via our Contact Form.

Characteristics

Sensing ferrous metal target wheels
Two impulse current sinking outputs NPN (OC) for speed measurement with direction detection
Good signal-to-noise ratio
Excellent low speed performance (0.1Hz)
Output amplitude not dependent on RPM
Fast operating speed, over 20kHz
EMI resistant
Reverse polarity protection and transient protection
Wide operating temperature -40°~+135/150°C

Applications

Automotive and Heavy Duty Vehicles:

Camshaft and crankshaft speed and position
Transmission speed
Tachometers
Anti-skid/traction control

Industrial Areas:

Sprocket speed
Chain link conveyor speed/distance
Stop motion detector
High speed low cost proximity
Tachometers, counters.

Close menu

Diameter/Screw Size:	17,8 (diameter)
Frequency Bandwith:	over 20kHz
Length:	1000 mm
Operating Temperature:	-40°C ~+135°C
Output type:	NPN (OC), two output signals
Power Supply:	4.5V ~ 24V DC
Rise/Fall time:	10µs / 10µs
Sensing gap/distance:	0.5mm ~ 5.0mm
Sensing Object :	ferrous metal targets
Cross Reference:	Honeywell SNDH Serie

Close menu

Data sheets to download:
