Hall Effect Gear Tooth Sensor CYGTS104XH, Output: NPN (OC) two output signals, Power Supply: 4.5 V ~ 24 V DC, Cable length: 1500 mm, Alternative for: Honeywell SNDH Series

Quantity Unit price
until 4 € 36.66 *
from 5 € 33.61 *
from 10 € 30.56 *
from 50 € 29.33 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 66 pieces (3-4 weeks if more)

Hall Effect Gear Tooth Sensor CYGTS104X uses two magnetically biased Hall Effect integrated... more

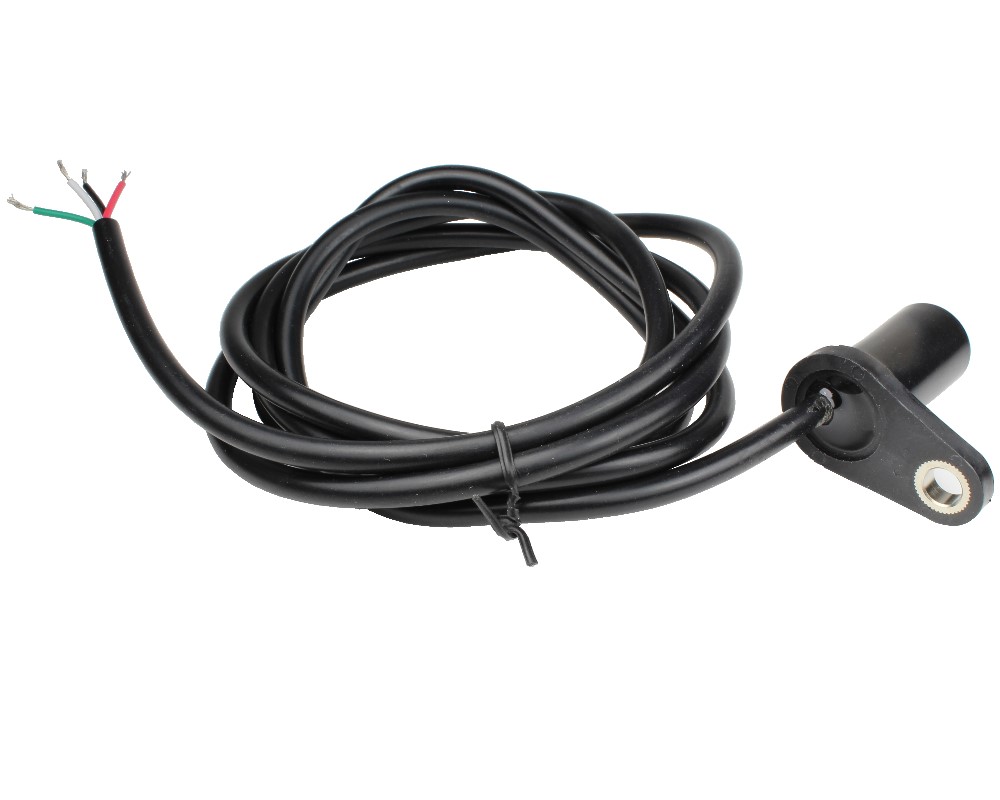

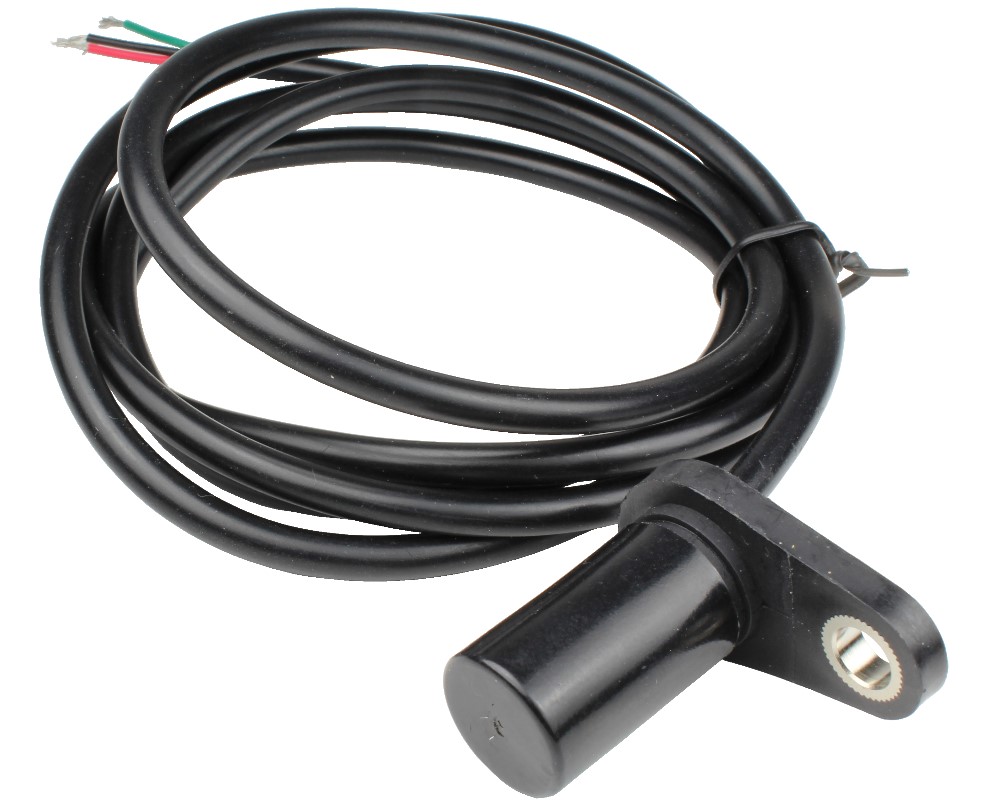

Hall Effect Gear Tooth Sensor CYGTS104XH, Output: NPN (OC) two output signals, Power Supply: 4.5 V ~ 24 V DC, Cable length: 1500 mm, Alternative for: Honeywell SNDH Series

Hall Effect Gear Tooth Sensor CYGTS104X uses two magnetically biased Hall Effect integrated circuits (ICs) to accurately sense movement of ferrous metal target (measuring) wheel. These specially designed integrated circuits, with bias magnet and discrete capacitor, are sealed in plastic package for physical protection and cost effective installation. The GTS IC works according to differential magnetic field detection. This sensor functions under power supply from 4.5 to 24VDC. Two output signals are impulse, current sinking (open collector, NPN), which can be used for rotary speed measurement with direction detection. It has the advantage of reverse polarity protection. The sensor will not be damaged if power is inadvertently wired backwards.

The standard cable length 1.5 m. If you require a different cable length, please send us a request via our Contact Form.

Characteristics

  • Sensing ferrous metal target wheels
  • Two impulse current sinking outputs NPN (OC) for speed measurement with direction detection
  • Good signal-to-noise ratio
  • Excellent low speed performance (0.1Hz)
  • Output amplitude not dependent on RPM
  • Fast operating speed, over 20kHz
  • EMI resistant
  • Reverse polarity protection and transient protection
  • Wide operating temperature -40°~+135/150°C

Applications

 Automotive and Heavy Duty Vehicles:

  • Camshaft and crankshaft speed and position
  • Transmission speed
  • Tachometers
  • Anti-skid/traction control

Industrial Areas:

  • Sprocket speed
  • Chain link conveyor speed/distance
  • Stop motion detector
  • High speed low cost proximity
  • Tachometers, counters.
Diameter/Screw Size: 17,8 (diameter)
Frequency Bandwith: over 20kHz
Length: 1500 mm
Operating Temperature: -40°C ~+135°C
Output type: NPN (OC), two output signals
Power Supply: 4.5V ~ 24V DC
Rise/Fall time: 10µs / 10µs
Sensing gap/distance: 0.2mm ~ 5.0mm
Sensing Object : ferrous metal targets
Cross Reference: Honeywell SNDH Serie
Daten zum Produkthersteller more

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
