SONNECY Hall Effect Gear Tooth Sensors CYGTS212B-NR6, Output...

Preview: Hall Effect Gear Tooth Sensors CYGTS212B-NR6, Output: PNP (RC), Power Supply: 6 V ~ 30 V DC

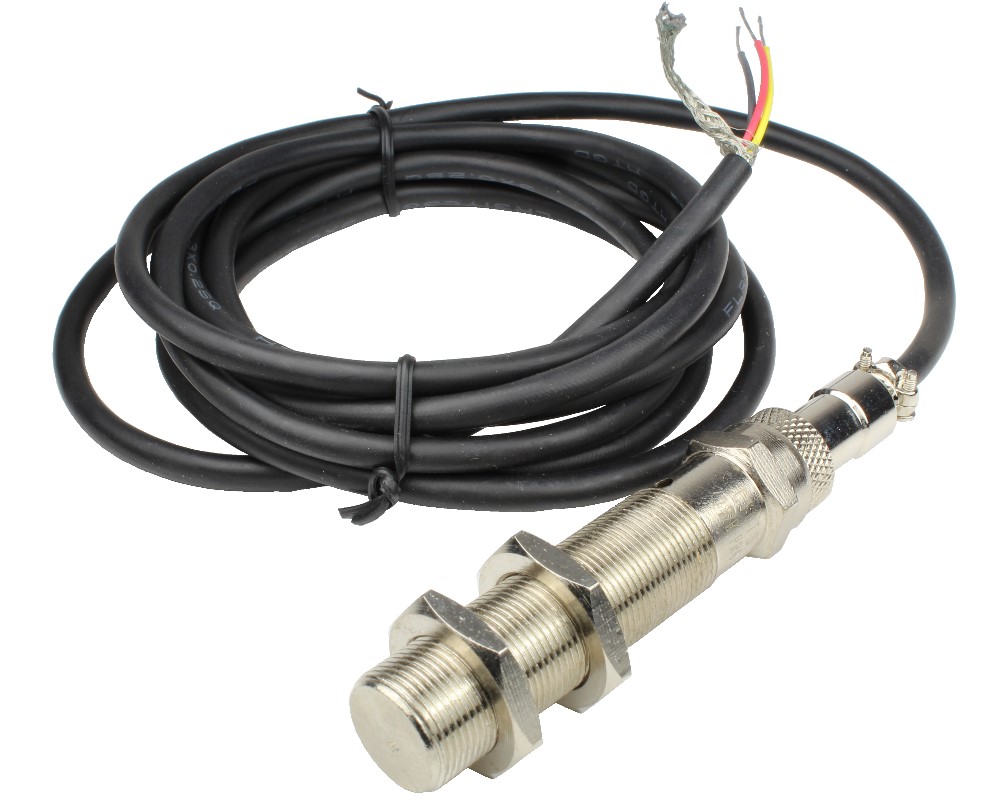

Hall Effect Gear Tooth Sensors CYGTS212B-NR6, Output: PNP (RC), Power Supply: 6 V ~ 30 V DC

This product is currently not available.

Quantity	Unit price
until 4	€ 65.14 *
from 5	€ 61.18 *
from 10	€ 50.11 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Article-Nr: CYGTS212B-NR6
Serial-Nr: CYGTS212
Request on this Article
Data Sheet Download (German)

Hall Effect gear tooth sensors CYGTS212 are applied to the non-contact speed measurement of... more

Close menu

Hall Effect Gear Tooth Sensors CYGTS212B-NR6, Output: PNP (RC), Power Supply: 6 V ~ 30 V DC

Hall Effect gear tooth sensors CYGTS212 are applied to the non-contact speed measurement of rotational gears. The measuring range is 1-20000rpm and the output square-wave signal can be directly connected with TTL, CMOS electric circuits and general tachometers to constitute the tachometric measuring and control systems. The CYGTS sensors use the standard cylinder structure and have advantages of the waterproofing, dustproof, guards against the greasy dirt. They can reliably work in adverse circumstances, specially are suitable for industry control and military applications.

If you require a different cable length, please send us a request via our Contact Form.

Measuring Principle

CYGTS212 gear tooth sensors use a magnetically biased Hall Effect integrated circuit to accurately sense rotational movement of ferrous metal gears. This specially designed integrated circuit with bias magnet is sealed in metal package for physical protection and cost effective installation. Thanks to the advanced Hall Effect measurement technology, these sensors can distinguish the addendum and tooth valley of the rotated gear and transform them to a square-wave output signal. Corresponding to a pair of addendum and tooth valley the sensor outputs a period of square-wave signal (namely conversion ratio K=1). The Hall Effect gear velocity sensors can be used to measure gears with a modulus ≥0.5mm.

Characteristics

Sensing ferrous metal targets
Digital current sinking output (RC)
Good signal-to-noise ratio
Excellent low speed performance
Output amplitude not dependent on RPM
Reverse polarity protection and output short circuit protection

Applications

Automotive and Heavy Duty Vehicles:

Camshaft and crankshaft speed and position
Transmission speed
Tachometers, counters
Anti-skid/traction control

Industrial Areas:

Sprocket speed
Chain link conveyor speed/distance
Stop motion detector
High speed low cost proximity

Close menu

Diameter/Screw Size:	M16x1mm
Frequency Bandwith:	1Hz ~ 20kHz
Operating Temperature:	-40°C ~ +125°C
Output type:	NPN (RC)
Power Supply:	6.0V ~ 30V DC
Rise/Fall time:	2µs / 2µs
Sensing gap/distance:	typ. <3mm
Sensing Object :	ferrous metal targets
