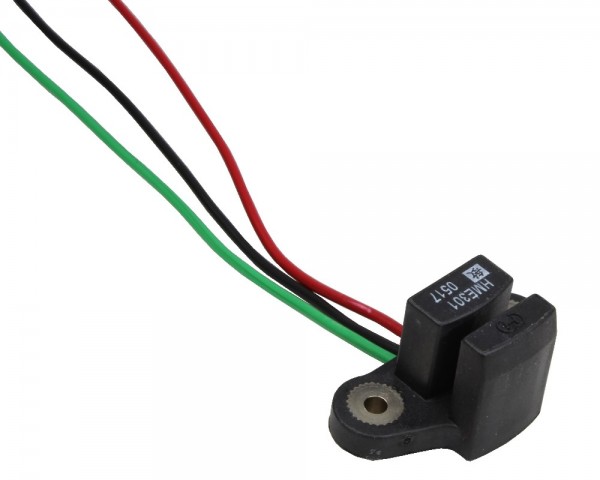

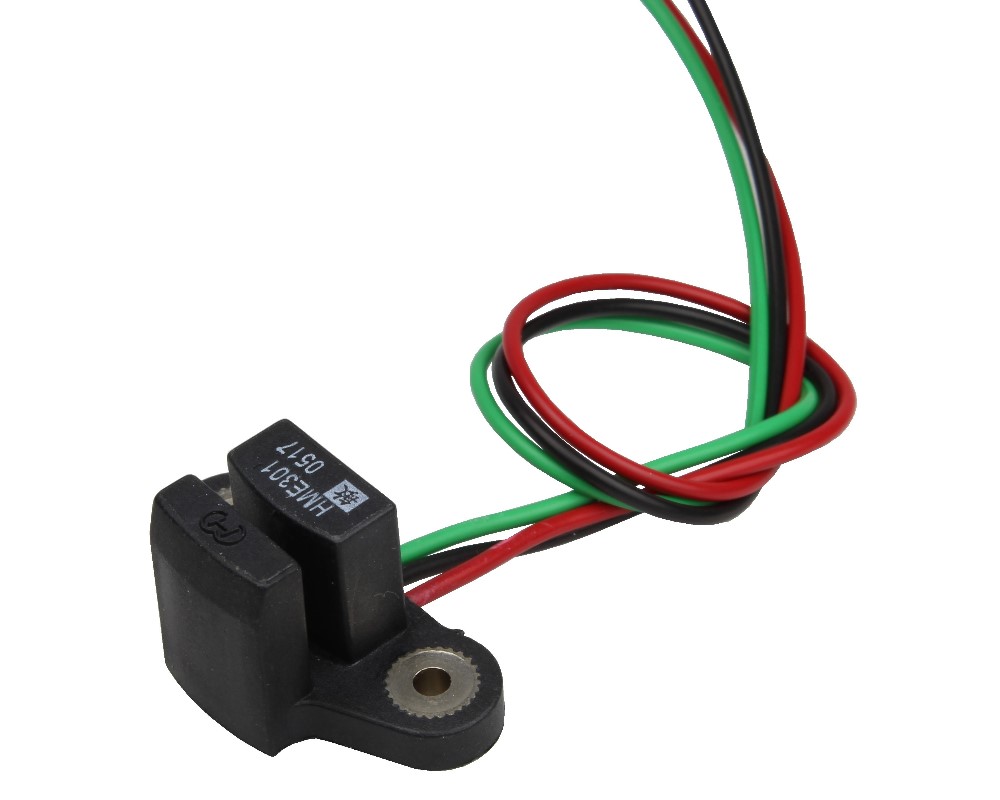

Hall-Effect Vane Sensor CYHME301, Output: NPN (OC), Power Supply: 4.5 V ~ 24 V DC, Alternative for: HKZ101, HKZ101S, HKZ121 (Siemens)

Quantity Unit price
until 4 € 14.51 *
from 5 € 12.69 *
from 10 € 10.88 *
from 50 € 9.42 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 176 pieces (3-4 weeks if more)

ChenYang Automotive Shaft Position Monitoring Sensor CYHME301 is designed to work in the... more
Hall-Effect Vane Sensor CYHME301, Output: NPN (OC), Power Supply: 4.5 V ~ 24 V DC, Alternative for: HKZ101, HKZ101S, HKZ121 (Siemens)

ChenYang Automotive Shaft Position Monitoring Sensor CYHME301 is designed to work in the conditions of automobile environment. The device is produced in compliance with the international standard and features: modern design, accurateness, endurance, narrow temperature drifting, smooth and clean output curve as well as non instantaneous dithering.

It is applicable to engines with electronic ejection. The main applications are in automobile industry, i.e. as a breakerless trigger in electronic systems, in control engineering, especially in those areas where switches/sensors must operate maintenance-free under harsh environmental conditions, e.g. rpm sensors, limit switches, position sensors, speed measurements, shaft encoders, scanning of coding disks etc.

The CYHME301 is replacement of the similar products (HKZ101, HKZ101S, HKZ121) of SIEMENS. They are compatible in electrical and mechanical properties but with different circuitry principle.

Features:

  • Contactless switch/sensor with open collector output (40mA)
  • Static switching/sensing
  • High switching/sensing frequency
  • Hermetically sealed with plastic
  • Unaffected by dirt, light and vibration
  • Large temperature and voltage ranges
  • Integrated protection of overvoltage etc.

If you require a different cable length, please send us a request via our Contact Form.

Rise/Fall time: 2µs / 2µs
Cross Reference: HKZ101, HKZ101S, HKZ121
Operating Temperature: -40°C~ +150°C
Operation/Release distance: 1.45mm / 2.29mm
Output type: NPN (OC)
Power Supply: 4.5V ~ 24V DC
