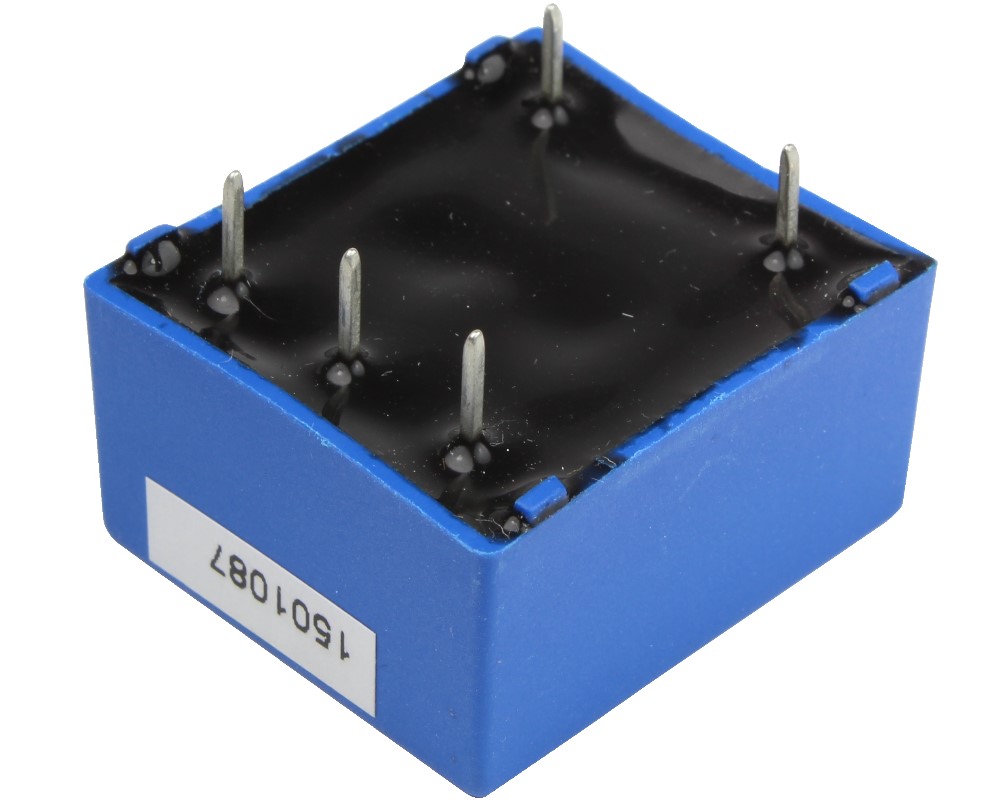

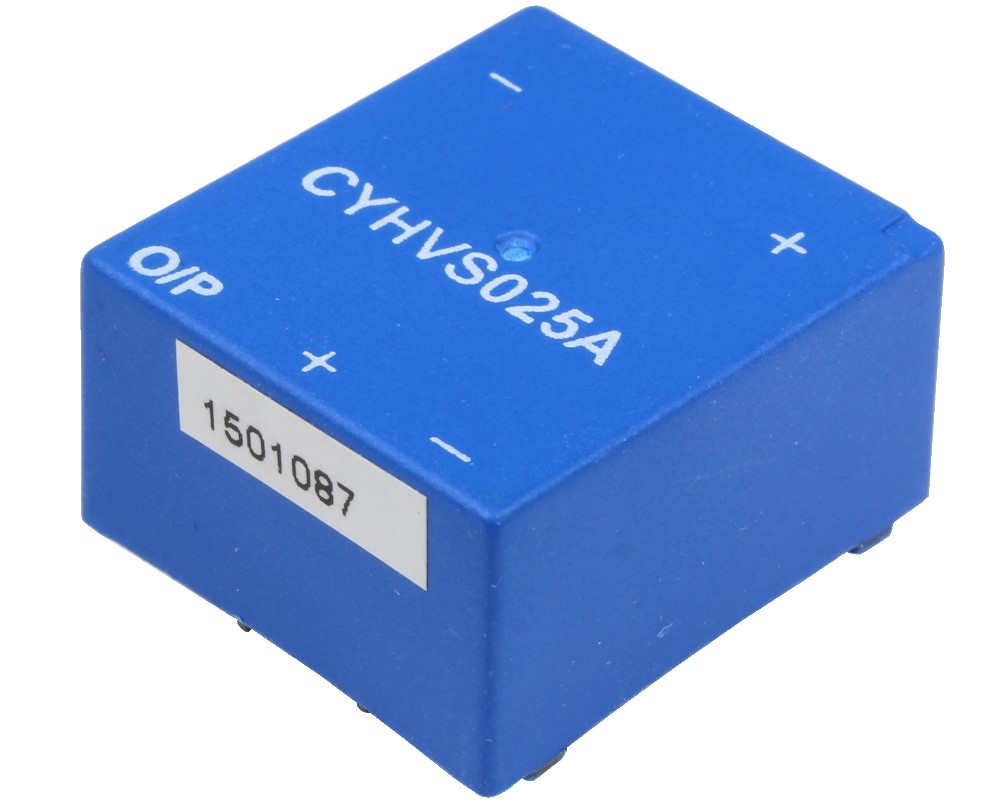

Hall Effect Voltage Sensor CYHVS025A, Output: ±25 mA, Power Supply: ±15 V DC, Measuring range: 0 ~ 500 V AC/DC

Preview: Hall Effect Voltage Sensor CYHVS025A, Output: ±25 mA, Power Supply: ±15 V DC, Measuring range: 0 ~ 500 V AC/DC Preview: Hall Effect Voltage Sensor CYHVS025A, Output: ±25 mA, Power Supply: ±15 V DC, Measuring range: 0 ~ 500 V AC/DC
Hall Effect Voltage Sensor CYHVS025A, Output: ±25 mA, Power Supply: ±15 V DC, Measuring range: 0 ~ 500 V AC/DC
Hall Effect Voltage Sensor CYHVS025A, Output: ±25 mA, Power Supply: ±15 V DC, Measuring range: 0 ~ 500 V AC/DC

Quantity Unit price
until 4 € 21.35 *
from 5 € 19.41 *
from 10 € 17.64 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 118 pieces (3-4 weeks if more)

Description Technical Properties Data Sheets
Description
CYHVS025A is a Hall Effect Voltage sensor, which is based on closed loop and magnetic... more
Close menu
Hall Effect Voltage Sensor CYHVS025A, Output: ±25 mA, Power Supply: ±15 V DC, Measuring range: 0 ~ 500 V AC/DC

CYHVS025A is a Hall Effect Voltage sensor, which is based on closed loop and magnetic compensation principle. This sensor can be used for measuring DC and AC voltage with different wave forms. It has high electric isolation.

 Characteristics

  • High electrical isolation
  • High reliability
  • Good overload capability
  • Small sizes
  • Insulated plastic case recognized according to UL94-V0
  • Very good property-price ratio

Applications

  • Switched Mode Power Supplies
  • Uninterruptible power supplies (UPS)
  • Overvoltage protection
  • Feedback of control systems
  • Electric power network monitoring
  • AC frequency conversion servo-motors
  • Various power supplies
  • Power supply for welding applications
Technical Properties
more
Close menu
Output Signal: ±25 mA AC/DC
Operating Temperature: -40°C ~ +85°C
Measuring range: 0-500V
Response Time: <40 µs
Power Supply: ±15 V DC
Rated Input Current/Voltage: ±10mA
Accuracy: 0.5%
Data Sheets
more
Close menu
Data sheets to download:
