SONNECY High Sensitivity Speed Sensor IC CYGTS9633 with Dual...

Preview: High Sensitivity Speed Sensor IC CYGTS9633 with Dual Quadrature Outputs, Output Signal: Dual Quadrature Outputs, Power Supply: 3.8 V ~ 24 V DC

High Sensitivity Speed Sensor IC CYGTS9633 with Dual Quadrature Outputs, Output Signal: Dual Quadrature Outputs, Power Supply: 3.8 V ~ 24 V DC

Quantity	Unit price
until 9	€ 5.51 *
from 10	€ 4.59 *
from 20	€ 3.83 *
from 50	€ 3.49 *
from 100	€ 3.31 *
from 200	€ 3.15 *
from 500	€ 3.01 *
from 1000	€ 2.87 *
from 3000	€ 2.71 *
from 5000	€ 2.63 *
from 10000	€ 2.56 *
from 50000	€ 2.48 *
from 100000	€ 2.38 *
from 600000	€ 2.31 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
for quantities up to available stock of 1761 pieces (3-4 weeks if more)

Article-Nr: CYGTS9633
Serial-Nr: CYGTS9633
Request on this Article
Data sheet download
Data sheet download (Deutsch)

CYGTS9633 is a differential Hall Effect sensor IC with two independent channels providing... more

Close menu

High Sensitivity Speed Sensor IC CYGTS9633 with Dual Quadrature Outputs, Output Signal: Dual Quadrature Outputs, Power Supply: 3.8 V ~ 24 V DC

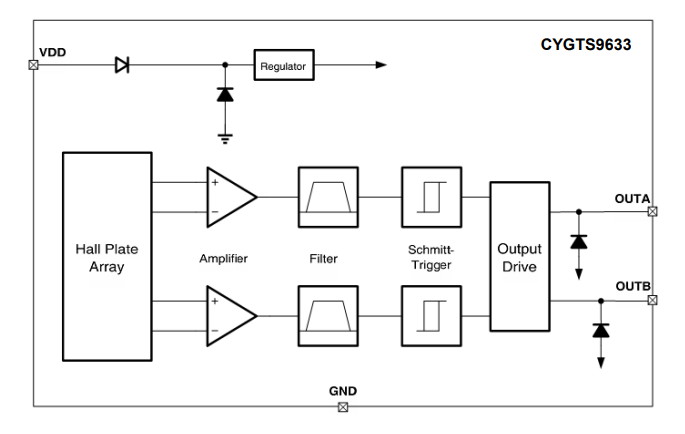

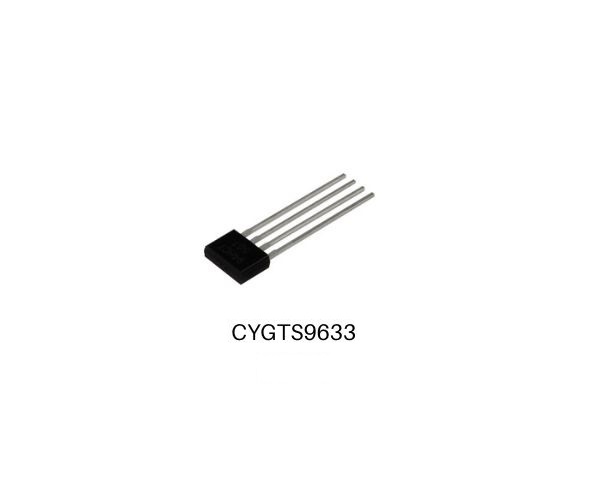

CYGTS9633 is a differential Hall Effect sensor IC with two independent channels providing quadrature outputs. The device provides a high sensitivity and a superior stability over temperature and symmetrical thresholds in order to achieve a stable duty cycle. The integrated circuit is response to changing differential magnetic fields created by rotating ring magnets and by ferrous targets when coupled with a magnet. By use of the A and B quadrature outputs, the device is particularly suitable for speed and direction of magnetic ring or ferromagnetic toothed wheels. The device is packaged in a 4-pin plastic SIP. It is lead (Pb) free, with 100% matte tin plated lead frame.

Features

Two independent digital quadrature A/B outputs
Accurate true zero-crossing switch-point
South and North pole pre-induction possible
Large air gap
3.8V to 24V supply operating range
Low power consumption 6.5mA (typ.)
Wide operating temperature range -40°C ~150°C
Protection against over-voltage in all PIN
Reverse-current protection in power supply VDD PIN
Output protection against electrical disturbances

Applications

Automotive and Heavy Duty Vehicles Industrial:

AreasCamshaft and crankshaft speed and position
Transmission speed
Tachometers
Anti-skid/traction control

Industrial Areas:

Sprocket speed
Chain link conveyor speed/distance
Stop motion detector
High speed low cost proximity
Tachometers, counters.

Close menu

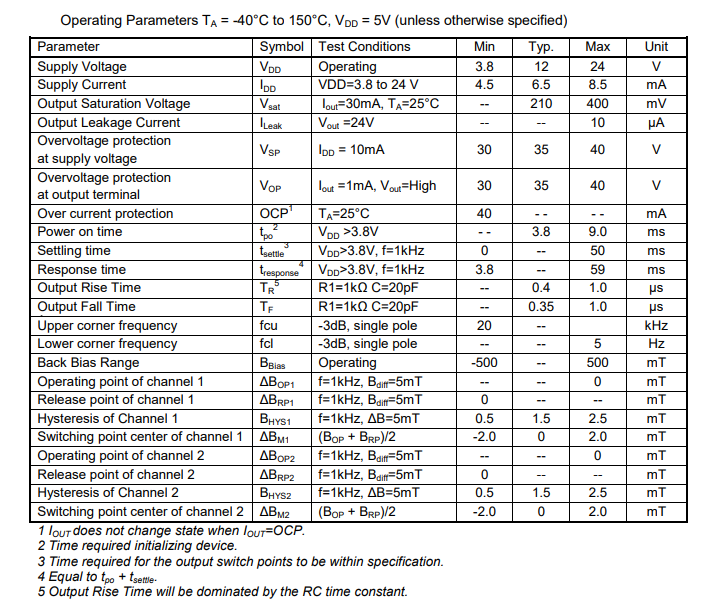

Operating Temperature:	-40°C~ +150°C
Power Supply:	3.8V ~ 24V DC
Bias Magnetic Field:	-500~500mT

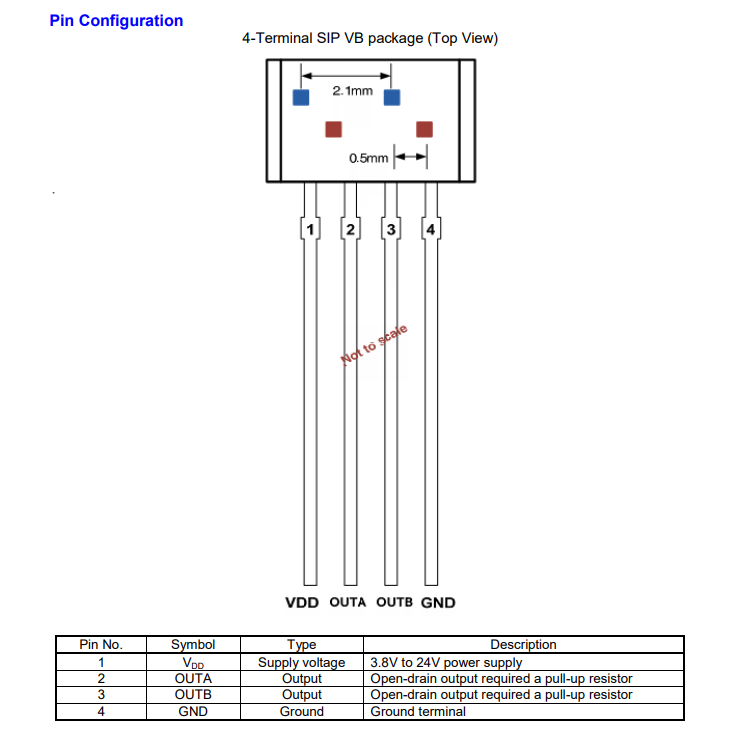

Package/Size:	SIP4/5.13x3.60x1.60mm
Rise/Fall time:	0.4µs / 0.35µs
Sensing gap/distance:	0.2mm ~ 2.0mm
Output Signal:	Dual Quadrature Outputs
