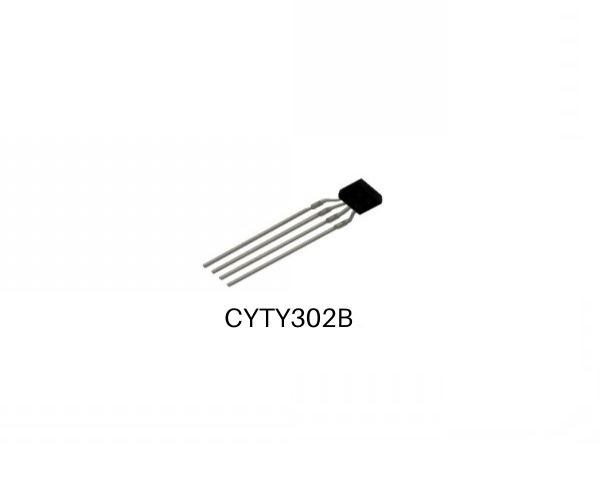

InSb Hall Effect Elements CYTY302B, Max. Sensitivity: 6.72 - 16.6 (mV/mT)

InSb Hall Effect Elements CYTY302B, Max. Sensitivity: 6.72 - 16.6 (mV/mT)
from € 0.51 *

Prices incl. VAT excl. Shipping Costs

Output Hall Voltage:

Description Technical Properties Data Sheets Product Safety Information
Description
Hall-effect element CYTY302B is made of compound semiconductor material indium stibnite (InSb),... more
Close menu
InSb Hall Effect Elements CYTY302B, Max. Sensitivity: 6.72 - 16.6 (mV/mT)

Hall-effect element CYTY302B is made of compound semiconductor material indium stibnite (InSb), which utilizes the Hall-effect principle. It can convert a magnetic flux density signal linearly into voltage output.

Characteristics

  • High Magnetic Sensitivity
  • Low Offset Voltage
  • Miniature Package

Application

  • Magnetic Field Measurement
  • Current Sensor
  • Detection of Speed
  • DC Brushless Motor
  • Position Control
Technical Properties
more
Close menu
Package/Size: SIP/2.7x2.35x0.95mm
Max. Sensitivity: 6.72 ~ 16.6 mV/mT
Input/Output Resistance: 240 ~ 550kΩ/240 ~ 550kΩ
Max. Supply current/voltage: 20 mA
Operating Temperature: -40°C ~ +110°C
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100

Similar products Customers also bought Customers also viewed
Similar products
InSb Hall Effect Elements CYTY322B, Max. Sensitivity: 9.12 - 14.8 (mV/mT) InSb Hall Effect Elements CYTY322B, Max....
from € 0.98 *

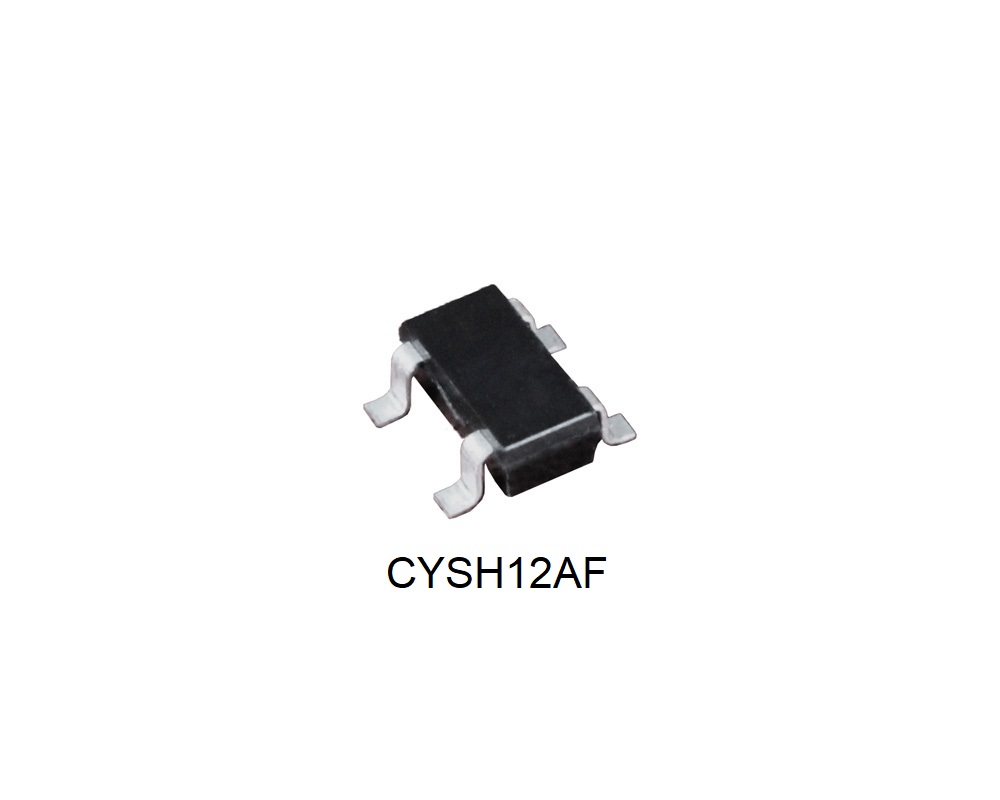

InSb Hall Effect Elements CYSH12AF, Max. Sensitivity: 7.84 - 16.6 (mV/mT) InSb Hall Effect Elements CYSH12AF, Max....
from € 0.13 *

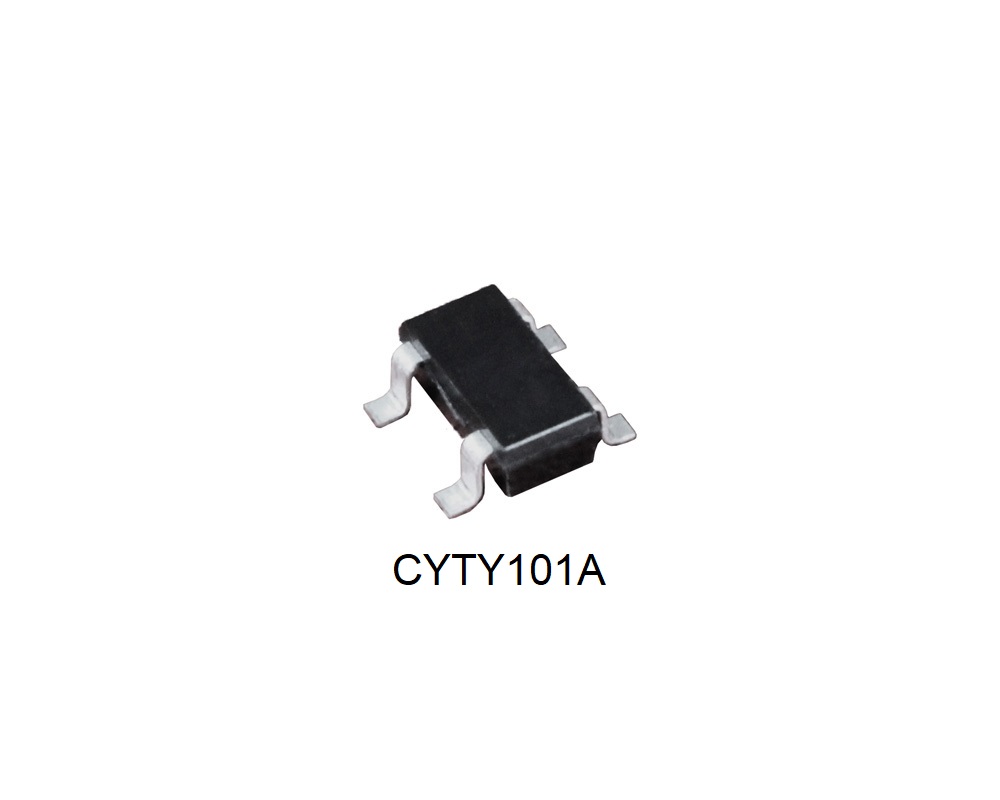

InSb Hall Effect Elements CYTY101A, Max. Sensitivity: 9.12 - 14.8 (mV/mT) InSb Hall Effect Elements CYTY101A, Max....
from € 0.13 *
InSb Hall Effect Elements CYTY108A, Max. Sensitivity: 7.84 - 12.8 (mV/mT) InSb Hall Effect Elements CYTY108A, Max....
from € 0.13 *

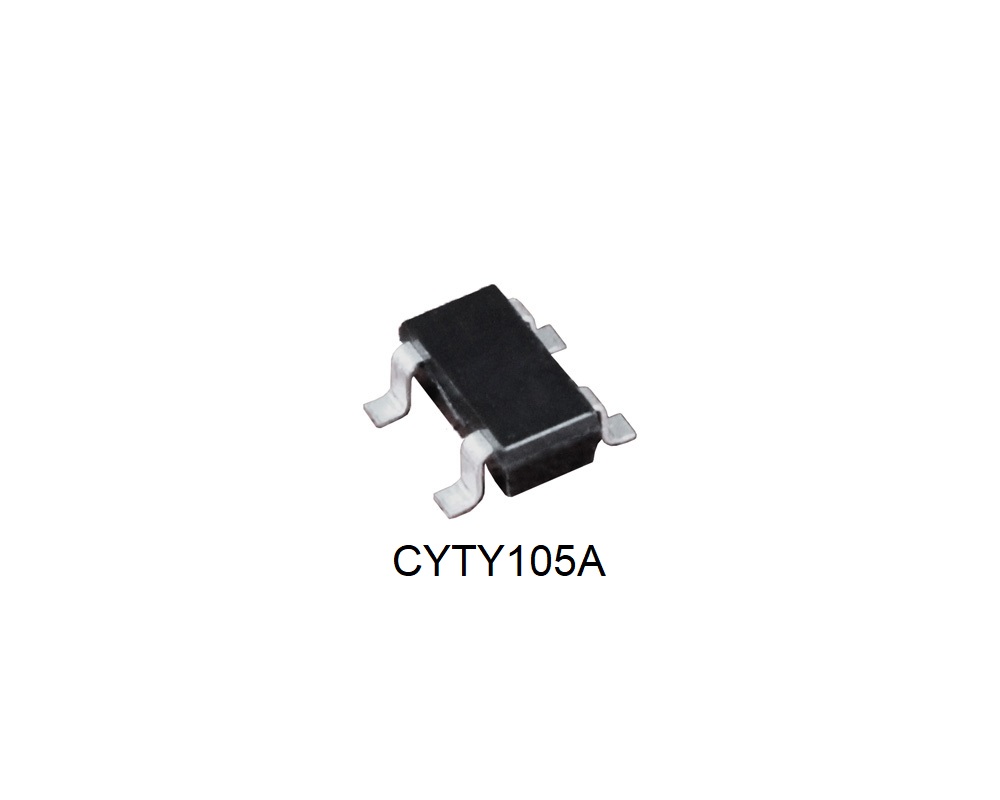

InSb Hall Effect Elements CYTY105A, Max. Sensitivity: 6.72 - 10.96 (mV/mT) InSb Hall Effect Elements CYTY105A, Max....
