Linear Hall Effect Sensors Ics CYL3503, Max. Sensitivity: 7.5-25 (mV/mT) , Measuring range: 80mT

Preview: Linear Hall Effect Sensors Ics CYL3503, Max. Sensitivity: 7.5-25 (mV/mT) , Measuring range: 80mT Preview: Linear Hall Effect Sensors Ics CYL3503, Max. Sensitivity: 7.5-25 (mV/mT) , Measuring range: 80mT Preview: Linear Hall Effect Sensors Ics CYL3503, Max. Sensitivity: 7.5-25 (mV/mT) , Measuring range: 80mT Preview: Linear Hall Effect Sensors Ics CYL3503, Max. Sensitivity: 7.5-25 (mV/mT) , Measuring range: 80mT Preview: Linear Hall Effect Sensors Ics CYL3503, Max. Sensitivity: 7.5-25 (mV/mT) , Measuring range: 80mT
Linear Hall Effect Sensors Ics CYL3503, Max. Sensitivity: 7.5-25 (mV/mT) , Measuring range: 80mT
Linear Hall Effect Sensors Ics CYL3503, Max. Sensitivity: 7.5-25 (mV/mT) , Measuring range: 80mT
Linear Hall Effect Sensors Ics CYL3503, Max. Sensitivity: 7.5-25 (mV/mT) , Measuring range: 80mT
Linear Hall Effect Sensors Ics CYL3503, Max. Sensitivity: 7.5-25 (mV/mT) , Measuring range: 80mT
Linear Hall Effect Sensors Ics CYL3503, Max. Sensitivity: 7.5-25 (mV/mT) , Measuring range: 80mT

Quantity Unit price
until 9 € 1.06 *
from 10 € 0.88 *
from 20 € 0.74 *
from 50 € 0.62 *
from 100 € 0.51 *
from 200 € 0.43 *
from 500 € 0.36 *
from 1000 € 0.30 *
from 3000 € 0.21 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 87 pieces (3-4 weeks if more)

Description Technical Properties Data Sheets Product Safety Information
Description
CYL3503 linear Hall-effect integrated circuit includes a voltage regulator, Hall-voltage... more
Close menu
Linear Hall Effect Sensors Ics CYL3503, Max. Sensitivity: 7.5-25 (mV/mT) , Measuring range: 80mT

CYL3503 linear Hall-effect integrated circuit includes a voltage regulator, Hall-voltage generator, linear amplifier, and emitter-follower output stage. The output of the ICs changes linearly with the magnetic flux density of the input.

Characteristics

  • Small Size
  • High Accuracy
  • High Sensitivity
  • Excellent Reliability
  • High Linearity

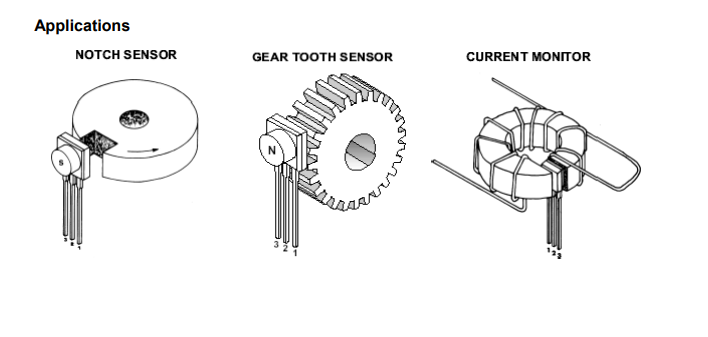

Applications

  • Motion Detector
  • Gear Tooth Sensors
  • Proximity Detector
  • Current Detecting Sensor
  • Velocity Detecting of Motor Bicycle
Technical Properties
more
Close menu

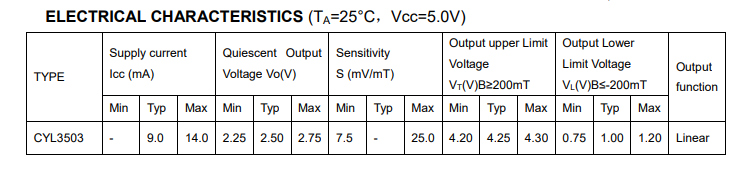

Operating Temperature: -20°C ~ +85°C
Quiescent Output voltage: 2.25 V ~ 2.75 V
Measuring range: 80mT

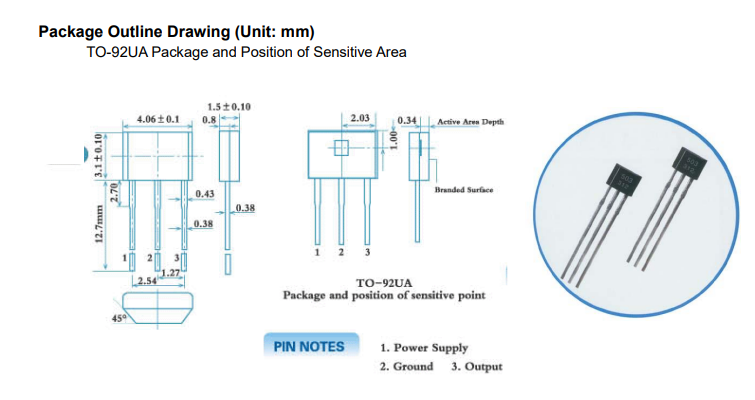

Package/Size: TO92/4.06x3.1x1.5mm
Max. Sensitivity: 7.50 ~ 25 mV/mT
Max. Supply current/voltage: 14 mA/8 V
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100

Similar products Customers also bought Customers also viewed
Similar products
Linear Hall Effect Sensors Ics CYL8405, Max. Sensitivity: 49.0-51.0 (mV/mT) , Measuring range: 64mT Linear Hall Effect Sensors Ics CYL8405, Max....
from € 0.42 *
Linear Hall Effect Sensosr Ics CYL8403, Max. Sensitivity: 30.5-32.0 (mV/mT) , Measuring range: 64mT Linear Hall Effect Sensosr Ics CYL8403, Max....
from € 0.38 *
Linear Hall Effect Sensors Ics CYL49E, Max. Sensitivity: 14-18 (mV/mT) , Measuring range: 100mT Linear Hall Effect Sensors Ics CYL49E, Max....
from € 0.21 *
Linear Hall Effect Sensors Ics CYL49F, Max. Sensitivity: 17-24 (mV/mT) , Measuring range: 100mT Linear Hall Effect Sensors Ics CYL49F, Max....
from € 0.25 *

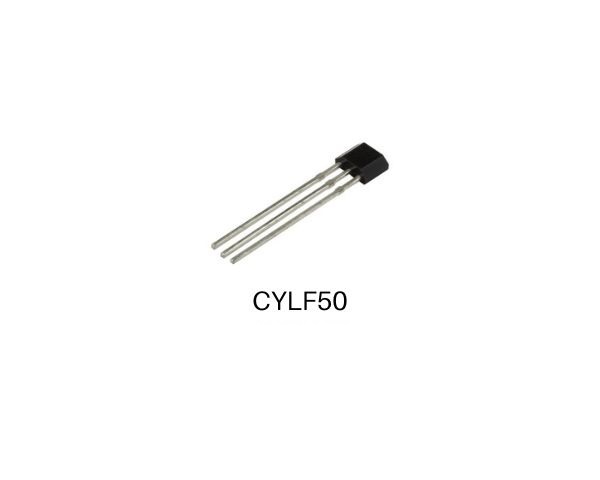

Linear Hall Effect Sensors Ics CYLF50, Max. Sensitivity: 10-14 (mV/mT) , Measuring range: 100mT Linear Hall Effect Sensors Ics CYLF50, Max....
