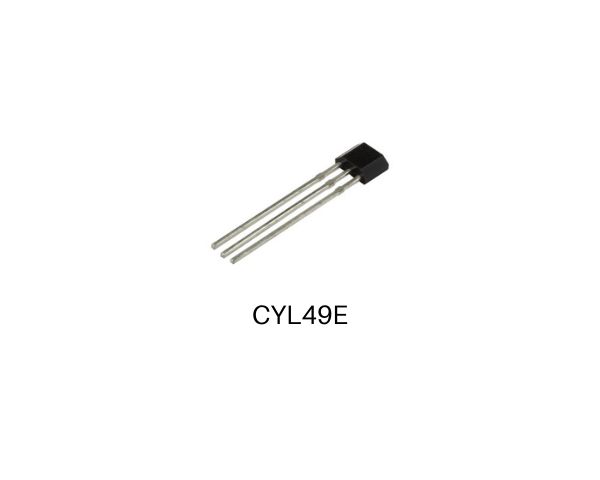

Linear Hall Effect Sensors Ics CYL49E, Max. Sensitivity: 14-18 (mV/mT) , Measuring range: 100mT
Quantity | Unit price |
---|---|
until 9 | € 1.24 * |
from 10 | € 1.04 * |
from 20 | € 0.86 * |
from 50 | € 0.71 * |
from 100 | € 0.60 * |
from 200 | € 0.50 * |
from 500 | € 0.42 * |
from 1000 | € 0.35 * |
from 3000 | € 0.21 * |
Prices incl. VAT excl. Shipping Costs
Ready for shipping, delivery time 1-3 workdays
for quantities up to available stock of 2032 pieces (3-4 weeks if more)
- Article-Nr: CYL49E
- Serial-Nr: CYL49E
- Request on this Article
- Data Sheet Download
- Data Sheet Download (German)
- RoHS Declaration of Conformity
CYL49E linear Hall-effect integrated circuit is based on Hall-Effect principle, which includes a... more
Linear Hall Effect Sensors Ics CYL49E, Max. Sensitivity: 14-18 (mV/mT) , Measuring range: 100mT
CYL49E linear Hall-effect integrated circuit is based on Hall-Effect principle, which includes a voltage regulator, Hall-voltage generator, linear amplifier, and emitter-follower output stage. The output of the ICs changes linearly with the magnetic flux density that should be measured.
Characteristics
- Small Size
- High Accuracy
- High Sensitivity
- Excellent Reliability
- Low Power
Application
- Motion Detector
- Gear Tooth Sensors
- Proximity Detector
- Speed Regulator for Sports Appliance
- Current Detecting Sensor

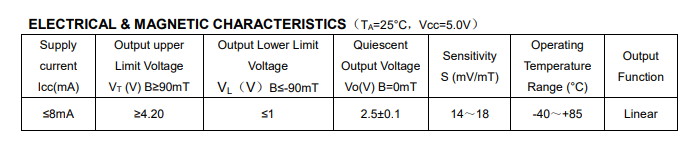

Operating Temperature: | -40°C ~ +85°C |
Quiescent Output voltage: | 2.40 V ~ 2.60 V |
Measuring range: | 100mT |

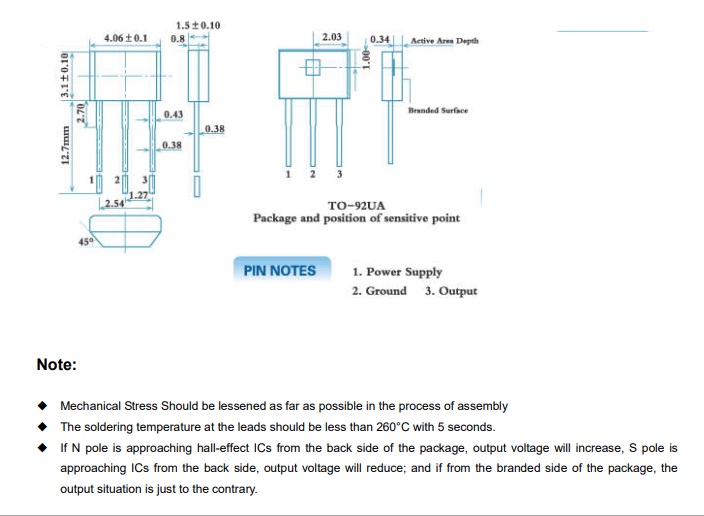

Package/Size: | TO92/4.06x3.1x1.5mm |
Max. Sensitivity: | 14.0 ~ 18.0 mV/mT |
Max. Supply current/voltage: | 8 mA/9 V |
