Linear Hall Effect Sensors Ics CYLF50, Max. Sensitivity: 10-14 (mV/mT) , Measuring range: 100mT

Quantity	Unit price
until 9	€ 0.73 *
from 10	€ 0.61 *
from 20	€ 0.51 *
from 50	€ 0.43 *
from 100	€ 0.36 *
from 200	€ 0.30 *
from 500	€ 0.25 *
from 1000	€ 0.20 *
from 3000	€ 0.19 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
for quantities up to available stock of 1237 pieces (3-4 weeks if more)

The CYLF50 Hall-effect sensors accurately track extremely small changes in magnetic flux... more

Close menu

Linear Hall Effect Sensors Ics CYLF50, Max. Sensitivity: 10-14 (mV/mT) , Measuring range: 100mT

The CYLF50 Hall-effect sensors accurately track extremely small changes in magnetic flux density-changes generally too small to operate Hall-effect switches.

As motion detectors, gear tooth sensors, and proximity detectors, they are magnetically driven mirrors of mechanical events. As sensitive monitors of electromagnets, they can effectively measure a system’s performance with negligible system loading while providing isolation from contaminated and electrically noisy environments.

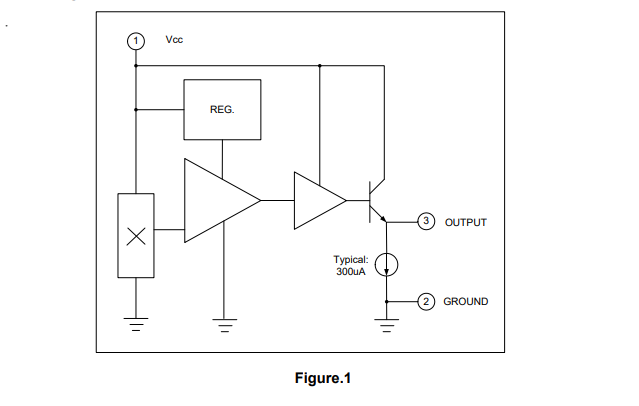

Each Hall-effect integrated circuit includes a Hall sensing element, linear amplifier, and emitter-follower output stage. Problems associated with handling tiny analog signals are minimized by having the Hall cell and amplifier on a single chip.

Characteristics

Very high sensitive
Flat response to 23 kHz
Lower low-noise output
2.7V to 7V power supply
Package : SIP-3L

Close menu

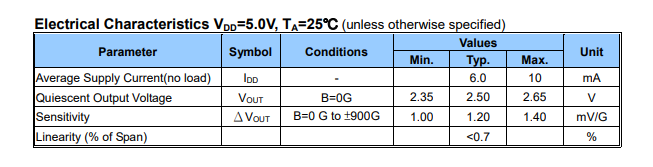

Operating Temperature:	-20°C ~ +85°C
Quiescent Output voltage:	2.35 V ~ 2.65 V
Measuring range:	100mT

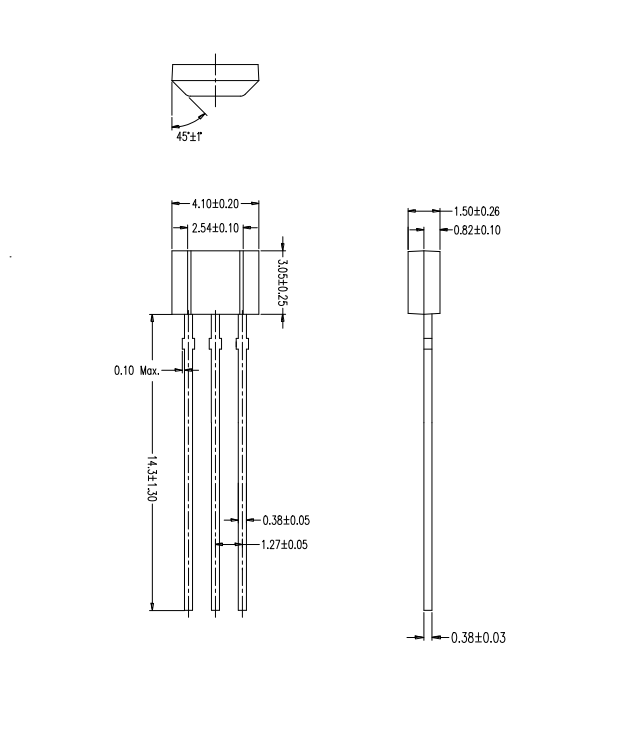

Package/Size:	SIP3L/4.1x3.05x1.50mm
Max. Sensitivity:	10.0 ~ 14.0 mV/mT
Max. Supply current/voltage:	10 mA/7 V
Linearity:	0.7 %
