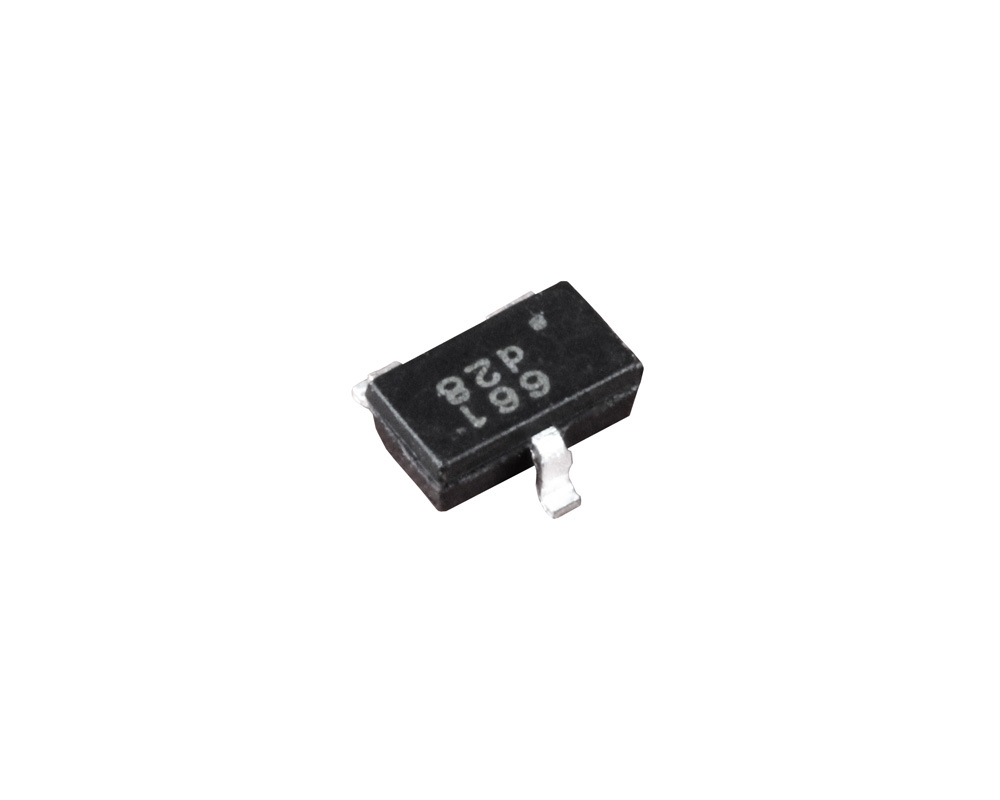

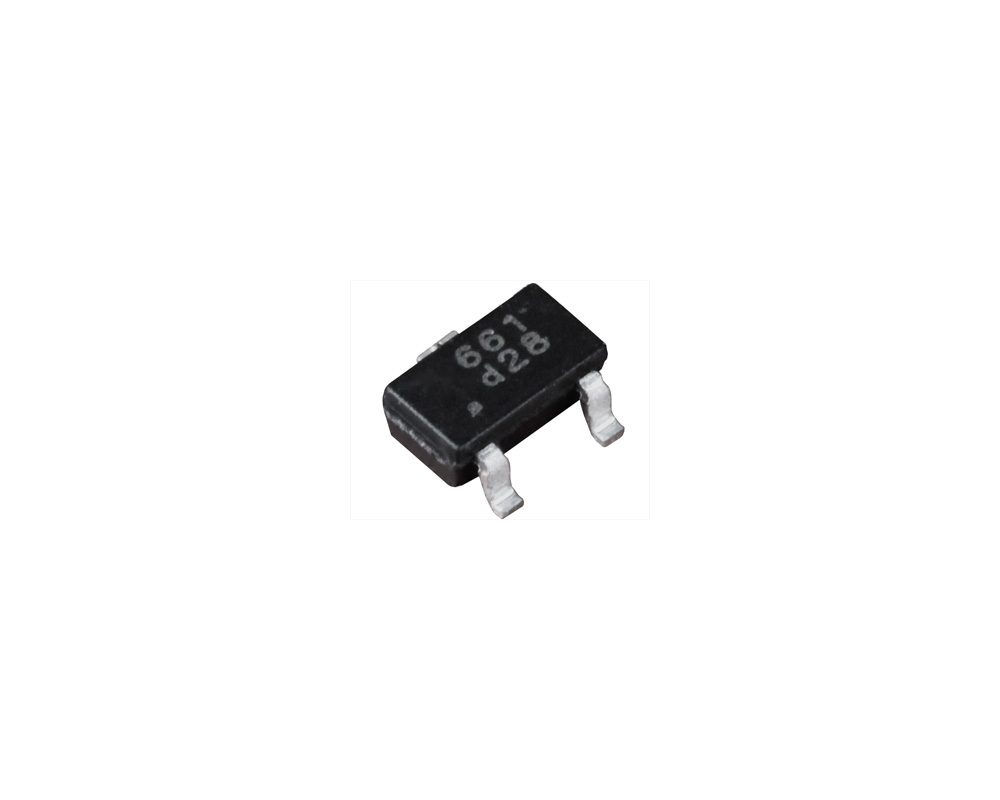

Omni-polar Hall Effect Switch CYD3661-BC, Power Supply: 2,4V~6V, Operating Temperature: -40°C~+85°C

Omni-polar Hall Effect Switch CYD3661-BC, Power Supply: 2,4V~6V, Operating Temperature: -40°C~+85°C
Quantity Unit price
until 9 € 0.65 *
from 10 € 0.55 *
from 20 € 0.45 *
from 50 € 0.38 *
from 100 € 0.32 *
from 200 € 0.26 *
from 500 € 0.23 *
from 1000 € 0.18 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 3885 pieces (3-4 weeks if more)

Description Technical Properties Data Sheets
Description
The CYD3661-BC is ultra-sensitive, pole independent Hall-Effect switches with a latched digital... more
Close menu
Omni-polar Hall Effect Switch CYD3661-BC, Power Supply: 2,4V~6V, Operating Temperature: -40°C~+85°C

The CYD3661-BC is ultra-sensitive, pole independent Hall-Effect switches with a latched digital output. It is very suitable for operation in battery-operated, hand-held equipment such as cellular and cordless phone, PDA, pagers palmtop computers. The built-in dynamic offset cancellation of pre-amplifier stage achieves optimal symmetrical magnetic sensing. The supply voltage range is from 2.4V to 6.0V and the max output current is 5mA. Unlike other Hall-effect switches, either a north or south pole of sufficient strength will turn the output on. In the absence of a magnetic field, the output is off. The polarity independence and minimal power requirement allows this device to easily replace reed switches for superior reliability.

Features

  •  Micro-power operation (5-7µW), Omni-polar
  •  2.4V to 6.0V power supply
  •  Built-in dynamic offset cancellation
  •  Thin SOT package
  •  ESD protected to 5KV
  •  High balance and low thermal drift magnetic sensing
  •  ROHS compliant

Applications

  •  Cover detector
  •  Battery-operated
  •  Hand-held equipment
  •  Door sensors
Technical Properties
more
Close menu
Operating Temperature: -40°C ~ +85°C
Operation Point: N pole: -3.5mT~-5.5mT, S pole: 1.8mT ~ 4.7mT
Release Point: S pole: 1.4mT ~ 4.3mT
Hysteresis: 0.6 mT
Package/Size: SOT23/2.9x1.8x1.1mm
Power Supply: 2.4V ~ 6.0V DC
Max. Supply current/voltage: 6.0 V
Data Sheets
more
Close menu
Data sheets to download:
