| Quantity | Unit price |
|---|---|
| until 4 | € 10.32 * |
| from 5 | € 9.39 * |
| from 10 | € 8.53 * |
Prices incl. VAT excl. Shipping Costs
Ready for shipping, delivery time 1-3 workdays
for quantities up to available stock of 2 pieces (3-4 weeks if more)

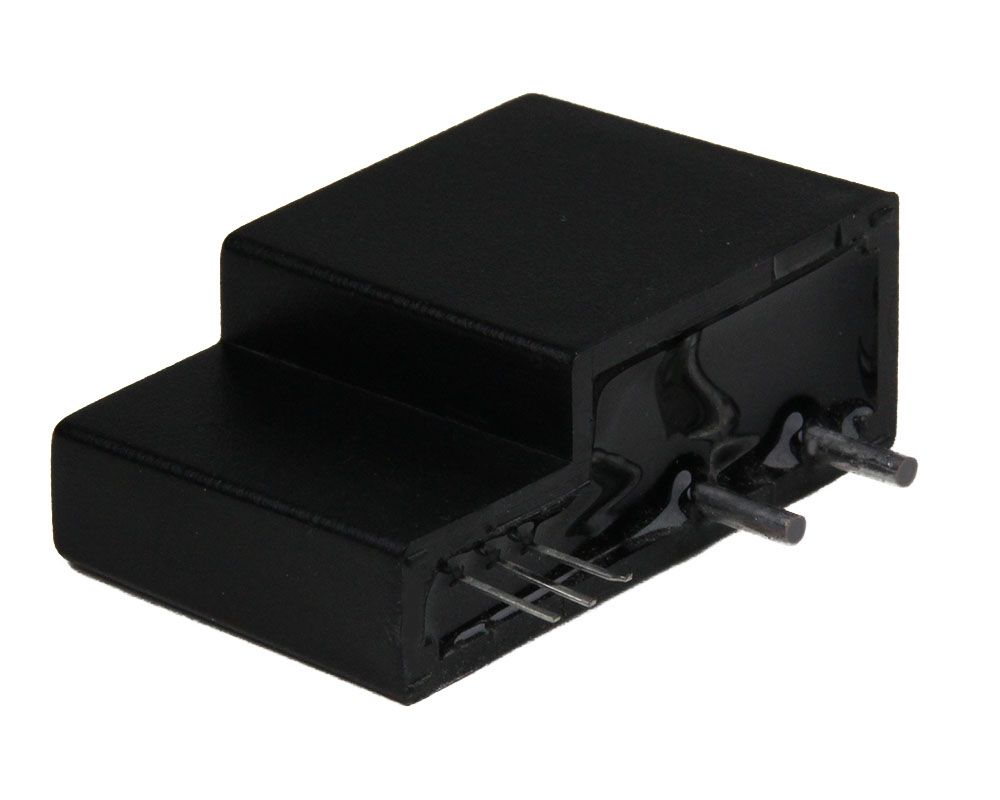

This Hall Effect current sensor is based on open loop principle and can be used for measurement of DC and AC current, pulse currents etc. The output of the transducer reflects the real wave of the current carrying conductor.
Product Characteristics
Applications
| Nominal Input Current: | 0-5A, 0-10A, 0-15A, 0-20A, 0-25A, 0-30A, 0-40A, 0-50A |
| Sensor Type: | Open-Loop |
| Power Supply: | +5 V DC |
| Output Signal: | +2,5 V ± 1 V AC/DC |
| Current Type: | AC/DC |
| Window Type: | No Window, PCB Mounted |
| Direction: | bidirectional |
| Accuracy: | 1% |
| Linearity: | 1% |
| Operating Temperature: | -25°C ~ +85°C |
| Frequency Bandwith: | DC ~ 50kHz |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
