Optical Reflective Gear Tooth Sensor CYGTS102OR, Output: Sinusoid wave/ square waves, Power supply: 4.5 V ~ 24 V DC

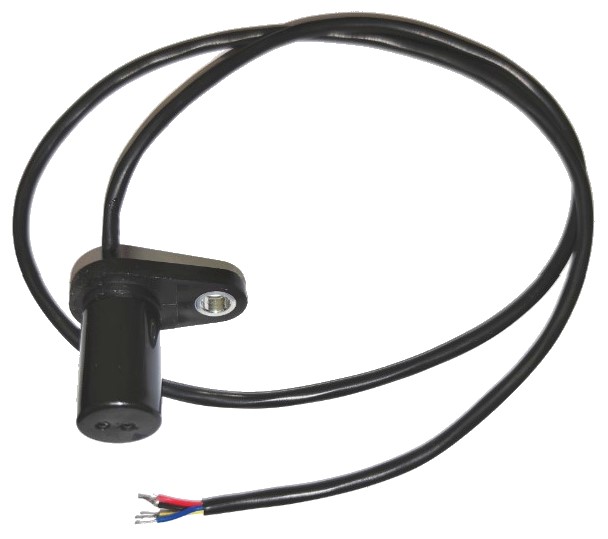

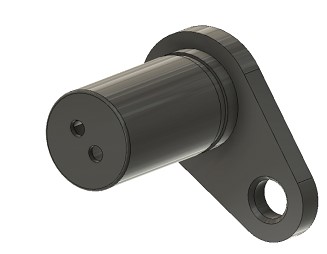

CYGTS102OR optical reflective gear tooth sensor is designed by using a high brightness red LED and a high output linearity phototransistor to detect the speed signal of a white target gear through the reflected light. It is sealed in resin environmentally friendly and has a low installation cost. This specially designed optical gear tooth sensor has a wide measurement range and high stability. The sensor works by detecting the intensity of the light reflected from the target wheel. This Unit functions under a power supply from 4.5VDC to 24VDC. Two signals (one sinusoid wave and one square wave) are output directly through the output terminal of the operational amplifier. The sensor will not be damaged if power is inadvertently wired inversely.

Applications

Automotive and Heavy-Duty Vehicles:

  •  Camshaft and crankshaft speed and position
  • Transmission speed
  • Tachometers
  • Anti-skid/traction control

Industrial Areas:

  • Sprocket speed
  • Chain link conveyor speed/distance
  • Stop motion detector
  • High speed and low-cost proximity
  • Tachometers, counters

Features

  • Sensing reflective target wheels
  • Operational amplifier directly output signal
  • Good signal-to-noise ratio
  • Excellent low-speed performance
  • Output amplitude not dependent on RPM
  • Fast operating speed, over 15kHz
  • EMI resistant
  • Large sensing distance range 1.5mm ~14mm
  • Reverse polarity protection and transient protection
  • Wide operating temperature -40°C ~ +85°C



Information about product safety:

Manufacturer/ EU Responsible Person:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100

Technical Properties
more
Close menu
Diameter/Screw Size: 17,9 (diameter)
Frequency Bandwith: over 15kHz
Operating Temperature: -40°C ~ +85°C
Output type: Sinusoid wave, Square Wave
Power Supply: 4.5V ~ 24V DC
Rise/Fall time: 8,4µs/ 12.8µs
Sensing gap/distance: 3.0mm ~ 7.0mm
Sensing Object : reflective target wheels
