| Quantity | Unit price |
|---|---|
| until 49 | € 0.98 * |
| from 50 | € 0.81 * |
| from 200 | € 0.67 * |
| from 1000 | € 0.56 * |
Prices incl. VAT excl. Shipping Costs
Article not in stock, Delivery time 3-4 Weeks

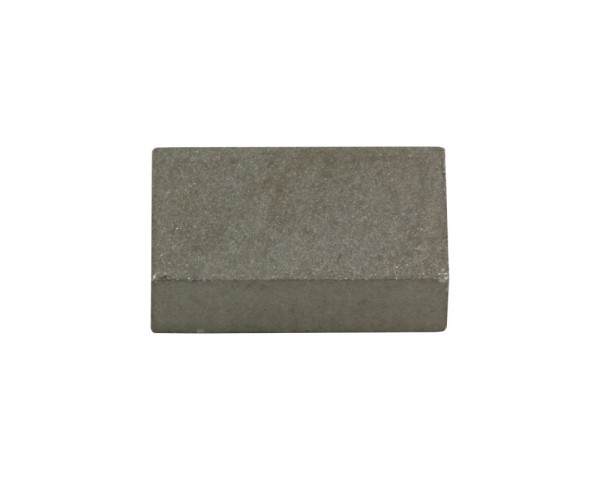

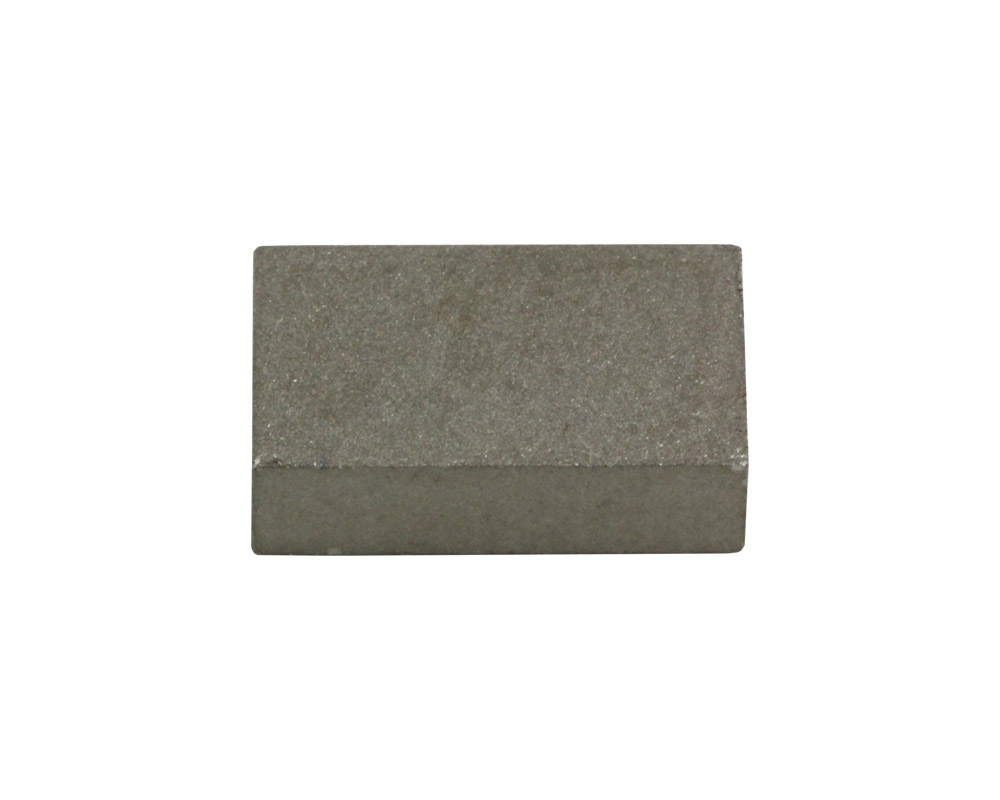

SmCo magnets (Samarium Cobalt) have also a very strong magnetic field. They tend to resist demagnetization extremely well. Unlike Neodymium magnets, it is also very corrosion resistant. SmCo magnets can operate at higher temperatures up to 300°C and are widely used in applications in which higher operating temperature and higher corrosion and oxidation resistance are crucial. The temperature coefficient of remanence is usually less than ±0.05%. Two common compositions of SmCo magnets are SmCo5 and Sm 2Co17. They can be sintered and bonded. Generally, the cost of SmCo magnets is higher than NdFeB magnets. But NdFeB magnets are stronger than SmCo magnets.
Material Information
| Coating: | none |
| Dimensions: | 12x4x2, 12x6x2.5, 12x8x3, 12x10x5 |
| Form: | Block |
| Magnetization Direction: | through height |
| Material: | Sm2Co17 |
| Material Grade: | S240 |
| Curie Temperature (°C): | 700-800 |
| Maximum Operating Temperature (°C): | 350 |
| Resistivity (µ ohm.cm): | 50-90 |
| Hardness (Hv): | 450-600 |
| Density (g/cm3 ): | 8.0-8.5 |
| Relative Recoil Permeability (µrec) : | 1.10 |
| Saturation Field Strength, kOe (kA/m) : | 37.5 (3000) |
| Temperature Coefficient of Br (%/°C): | -0.05 ~ -0.03 |
| Temperature Coefficient of iHc (%/°C) : | -0.25 ~ -0.19 |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
