Split Core Hall Effect AC/DC Current Sensor CYHCS-EKFS, Output: 2.5 V DC ±1.5 V AC/DC, Power Supply: +5V DC ±5%, Window: Ø 62 mm

Split Core Hall Effect AC/DC Current Sensor CYHCS-EKFS, Output: 2.5 V DC ±1.5 V AC/DC, Power Supply: +5V DC ±5%, Window: Ø 62 mm
Quantity Unit price
until 4 € 94.07 *
from 5 € 85.51 *
from 10 € 77.74 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Current:

Description Technical Properties Data Sheets Product Safety Information
Description
This Hall Effect current sensor is based on the open-loop principle and designed with a split... more
Close menu
Split Core Hall Effect AC/DC Current Sensor CYHCS-EKFS, Output: 2.5 V DC ±1.5 V AC/DC, Power Supply: +5V DC ±5%, Window: Ø 62 mm

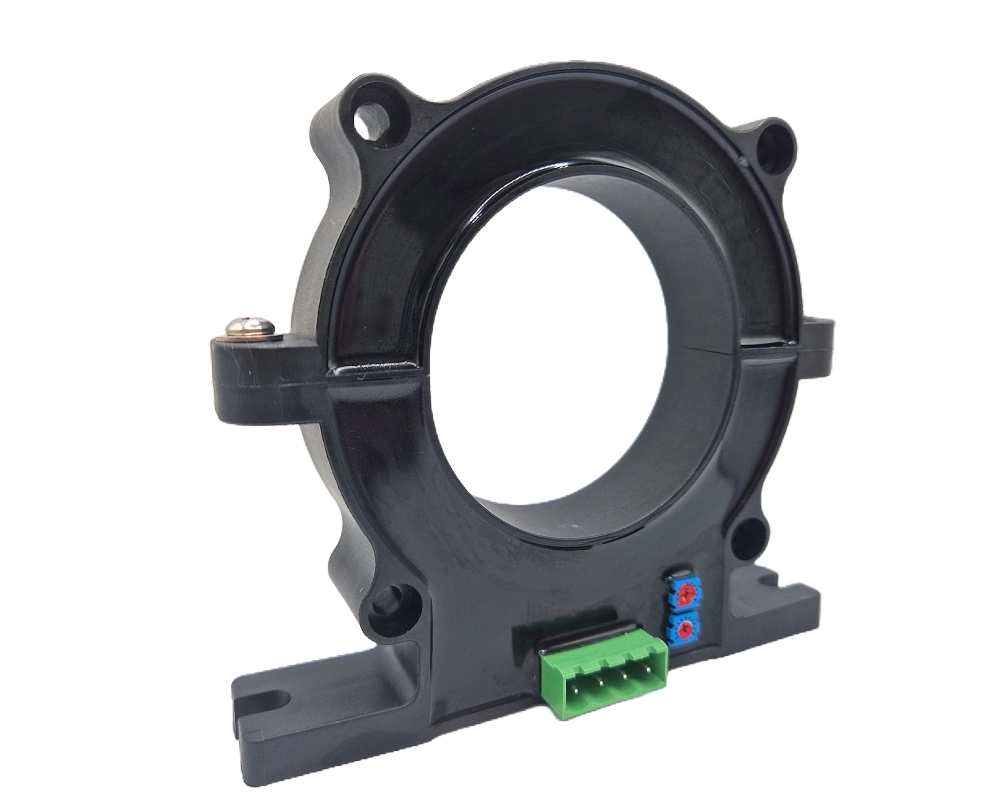

This Hall Effect current sensor is based on the open-loop principle and designed with a split core and high galvanic isolation between the primary conductor and secondary circuit. It can be used for the measurement of AC/DC current etc. The output of the transducer reflects the real wave of the current-carrying conductor.

Applications

  • Photovoltaic equipment
  • Frequency conversion timing equipment
  • Various power supply
  • Uninterruptible power supplies (UPS)
  • Electric welding machines
  • Electrolyzing and electroplating equipment
  • Electrically powered locomotive
  • Electric power network monitoring

Features

  • Excellent accuracy
  • Very good linearity
  • Less power consumption
  • Split core window structure
  • Electrically isolating the output of the transducer from the current-carrying conductor
  • No insertion loss
  • Current overload capability



Information about product safety:

Manufacturer/ EU Responsible Person:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de



Phone: +49 8121 2574100

Technical Properties
more
Close menu
Nominal Input Current: 0-300A, 0-400A, 0-500A, 0-600A, 0-800A, 0-1000A, 0-2000A, 0-4000A, 0-6000A
Sensor Type: Open-Loop
Power Supply: +5 V DC
Output Signal: +2,5 V ± 1,5 V AC/DC
Current Type: AC/DC
Window Type: Round
Window Size (mm): ø 62
Direction: bidirectional
Accuracy: 1%
Linearity: 1,0%
Operating Temperature: -25°C ~ +85°C
Frequency Bandwith: DC ~ 20kHz
