Two-Wire High Accuracy Differential Speed Sensor IC CYGTS9641 with Continuous Calibration, Output Signal: Two-wire current output, Power Supply: 4.5 V ~ 24 V DC

Preview: Two-Wire High Accuracy Differential Speed Sensor IC CYGTS9641 with Continuous Calibration, Output Signal: Two-wire current output, Power Supply: 4.5 V ~ 24 V DC Preview: Two-Wire High Accuracy Differential Speed Sensor IC CYGTS9641 with Continuous Calibration, Output Signal: Two-wire current output, Power Supply: 4.5 V ~ 24 V DC Preview: Two-Wire High Accuracy Differential Speed Sensor IC CYGTS9641 with Continuous Calibration, Output Signal: Two-wire current output, Power Supply: 4.5 V ~ 24 V DC Preview: Two-Wire High Accuracy Differential Speed Sensor IC CYGTS9641 with Continuous Calibration, Output Signal: Two-wire current output, Power Supply: 4.5 V ~ 24 V DC Preview: Two-Wire High Accuracy Differential Speed Sensor IC CYGTS9641 with Continuous Calibration, Output Signal: Two-wire current output, Power Supply: 4.5 V ~ 24 V DC
Two-Wire High Accuracy Differential Speed Sensor IC CYGTS9641 with Continuous Calibration, Output Signal: Two-wire current output, Power Supply: 4.5 V ~ 24 V DC
Two-Wire High Accuracy Differential Speed Sensor IC CYGTS9641 with Continuous Calibration, Output Signal: Two-wire current output, Power Supply: 4.5 V ~ 24 V DC
Two-Wire High Accuracy Differential Speed Sensor IC CYGTS9641 with Continuous Calibration, Output Signal: Two-wire current output, Power Supply: 4.5 V ~ 24 V DC
Two-Wire High Accuracy Differential Speed Sensor IC CYGTS9641 with Continuous Calibration, Output Signal: Two-wire current output, Power Supply: 4.5 V ~ 24 V DC
Two-Wire High Accuracy Differential Speed Sensor IC CYGTS9641 with Continuous Calibration, Output Signal: Two-wire current output, Power Supply: 4.5 V ~ 24 V DC

Quantity Unit price
until 9 € 2.76 *
from 10 € 2.31 *
from 20 € 1.92 *
from 50 € 1.74 *
from 100 € 1.67 *
from 200 € 1.58 *
from 500 € 1.51 *
from 1000 € 1.43 *
from 3000 € 1.34 *
from 5000 € 1.31 *
from 10000 € 1.27 *
from 50000 € 1.23 *
from 100000 € 1.19 *
from 600000 € 1.15 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 800 pieces (3-4 weeks if more)

Description Technical Properties Data Sheets Product Safety Information
Description
The differential Hall Effect sensor CYGTS9641 is designed to provide information about... more
Close menu
Two-Wire High Accuracy Differential Speed Sensor IC CYGTS9641 with Continuous Calibration, Output Signal: Two-wire current output, Power Supply: 4.5 V ~ 24 V DC

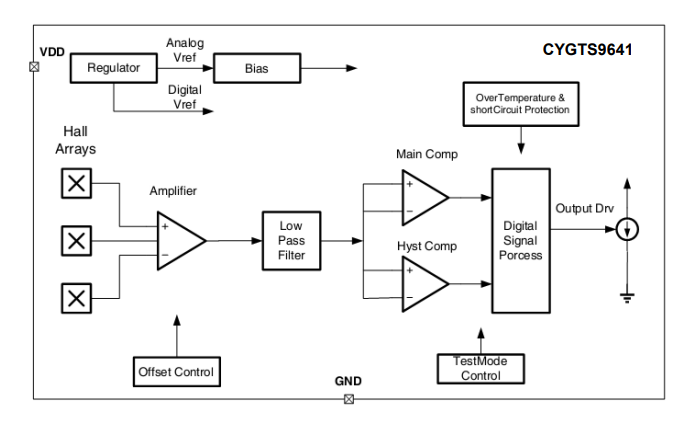

The differential Hall Effect sensor CYGTS9641 is designed to provide information about rotational speed to modern vehicle dynamics control systems and ABS. The output has been designed as a two wire current interface. Excellent accuracy and sensitivity are specified for harsh automotive requirements with a wide temperature range, high ESD and EMC robustness.

The regulated current output is configured for two-wire applications and the 2.0mm spacing between the dual Hall elements is optimized for fine pitch ring-magnet-based configurations. The device is packaged in a 2-pin plastic SIP. It is lead (Pb) free, with 100% matte tin plated lead frame.

Features

  • Two-wire current interface
  • High sensitivity
  • South and North pole pre-induction possible
  • Large air gap
  • 4.5V to 24V supply operating range
  • Wide operating temperature range -40°C ~150°C

Applications

Automotive and Heavy Duty Vehicles:

  • Camshaft and crankshaft speed and position
  • Transmission speed
  • Tachometers
  • Anti-skid/traction control

Industrial Areas:

  • Sprocket speed
  • Chain link conveyor speed/distance
  • Stop motion detector
  • High speed low cost proximity
  • Tachometers, counters.
Technical Properties
more
Close menu

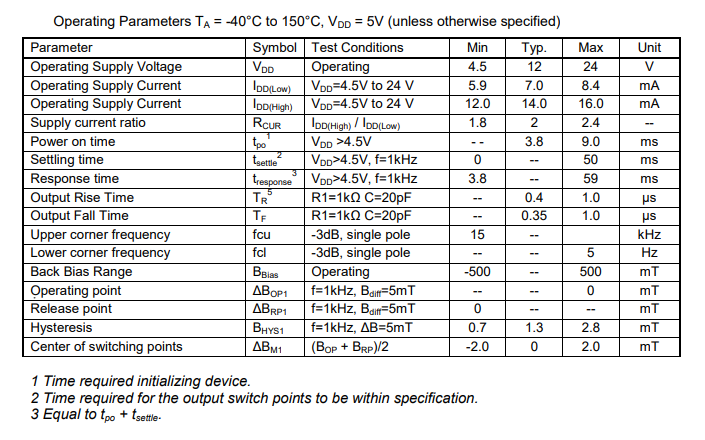

Operating Temperature: -40°C~ +150°C
Power Supply: 4.5V ~ 24V DC
Output Signal: Two-wire,Current Output
Bias Magnetic Field: -500~500mT
Rise/Fall time: 0.4µs / 0.35µs
Sensing gap/distance: 0.2mm ~ 2.2mm

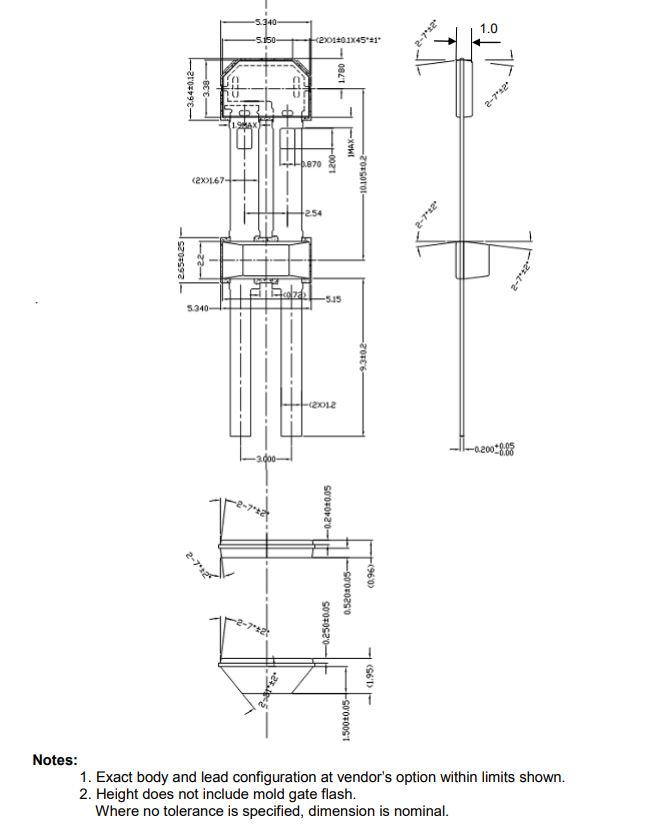

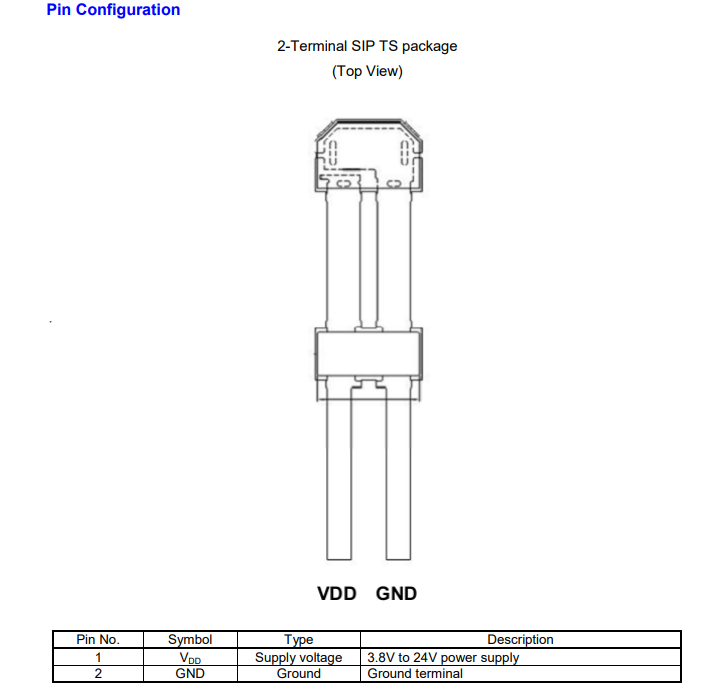

Package/Size: SIP2/5.25x3.5x1.0mm
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
