SONNECY Unidirectional Digital DC Current Sensor CYCTD-S3; D...

Preview: Unidirectional Digital DC Current Sensor CYCTD-S3; Digital Output: Current I; Analogue Output: 0-10V DC; Power Supply: +12 V DC; Interface: RS485 MODBUS; Window: Ø 20 mm

Unidirectional Digital DC Current Sensor CYCTD-S3; Digital Output: Current I; Analogue Output: 0-10V DC; Power Supply: +12 V DC; Interface: RS485 MODBUS; Window: Ø 20 mm

Quantity	Unit price
until 4	€ 157.88 *
from 5	€ 143.95 *
from 10	€ 131.95 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Article-Nr: CYCTD-S3-U500mA-823
Serial-Nr: CYCTD-S3
Request on this Article

The sensor CYCTD-S3 works according to Magnetic Modulation and is designed for applications as... more

Close menu

Unidirectional Digital DC Current Sensor CYCTD-S3; Digital Output: Current I; Analogue Output: 0-10V DC; Power Supply: +12 V DC; Interface: RS485 MODBUS; Window: Ø 20 mm

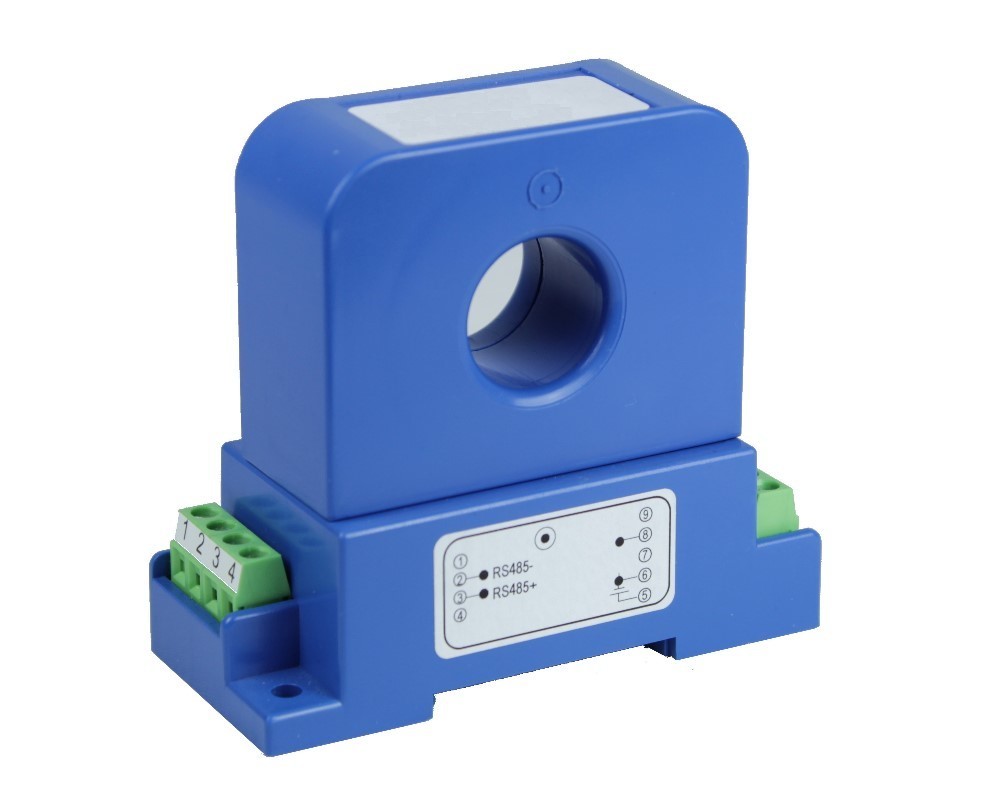

The sensor CYCTD-S3 works according to Magnetic Modulation and is designed for applications as measurement and monitoring of DC current. The sensor has galvanic isolation between the high-power primary conductor and the secondary electronic circuit. The sensor has different analog and digital output signals under different power supplies. The data communication between the sensor and digital equipment can be realized directly through the interface RS-485 MODBUS.

Applications

Photovoltaic equipment
Battery banks, such as monitoring load current and charge current, verifying operation
Transportation, measuring traction power
Phase fired controlled heaters
Directly connect to PLC
Sense motor stalls and short circuits
Industrial instrumentation

Features

DC current measurement
High measuring accuracy
Analog and digital output signal (0-5V, 0- 10V, RS-485 Modbus)
High isolation between primary and secondary circuits
No insertion losses
Temperature compensation

Information about product safety:

Manufacturer/ EU Responsible Person:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100

Close menu

Nominal Input Current:	0-500mA, 0-750mA, 0-1A, 0-2A, 0-3A, 0-5A, 0-10A, 0-15A, 0-20A, 0-25A
Power Supply:	+12V DC
Analogue Output Signal:	0-10V DC
Digital Outputs:	Current I
Interface:	RS485, MODBUS
Baud Rate (bps):	1200, 2400, 4800, 9600 (default), 19.2K, 38.4K, 57.6K, 115.2K
Linearity:	±0.2%
Accuracy:	0,5%
Window Type:	Round
Window Size (mm):	Ø 20
Operating Temperature:	-40°C ~ +85°C
