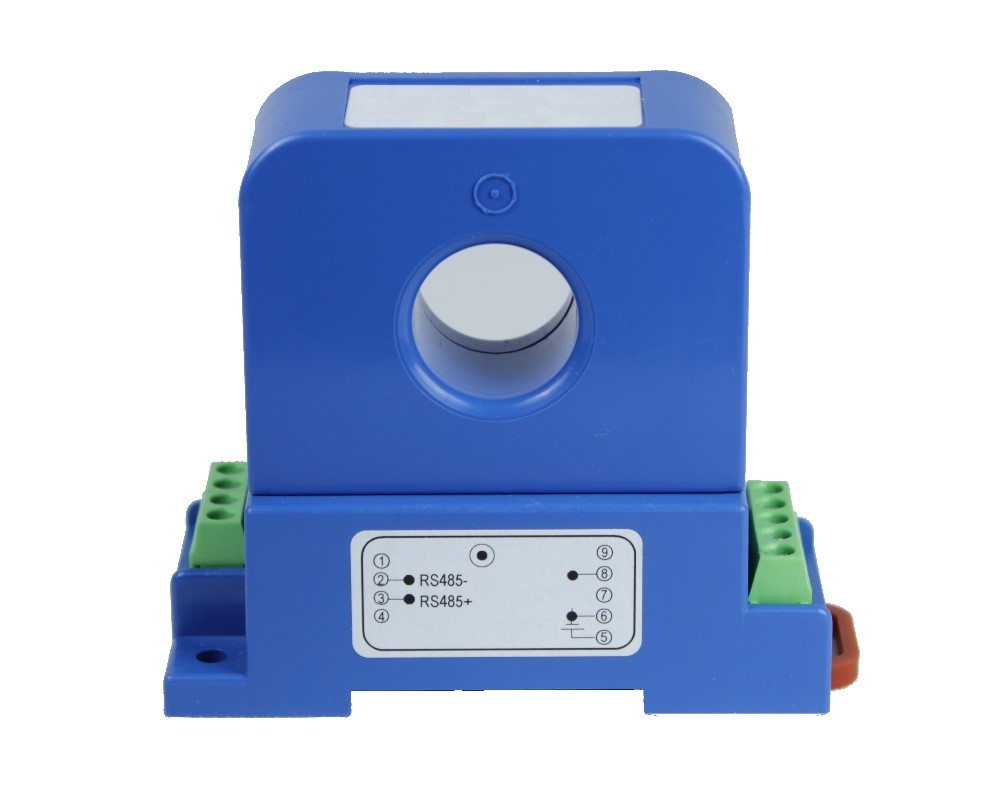

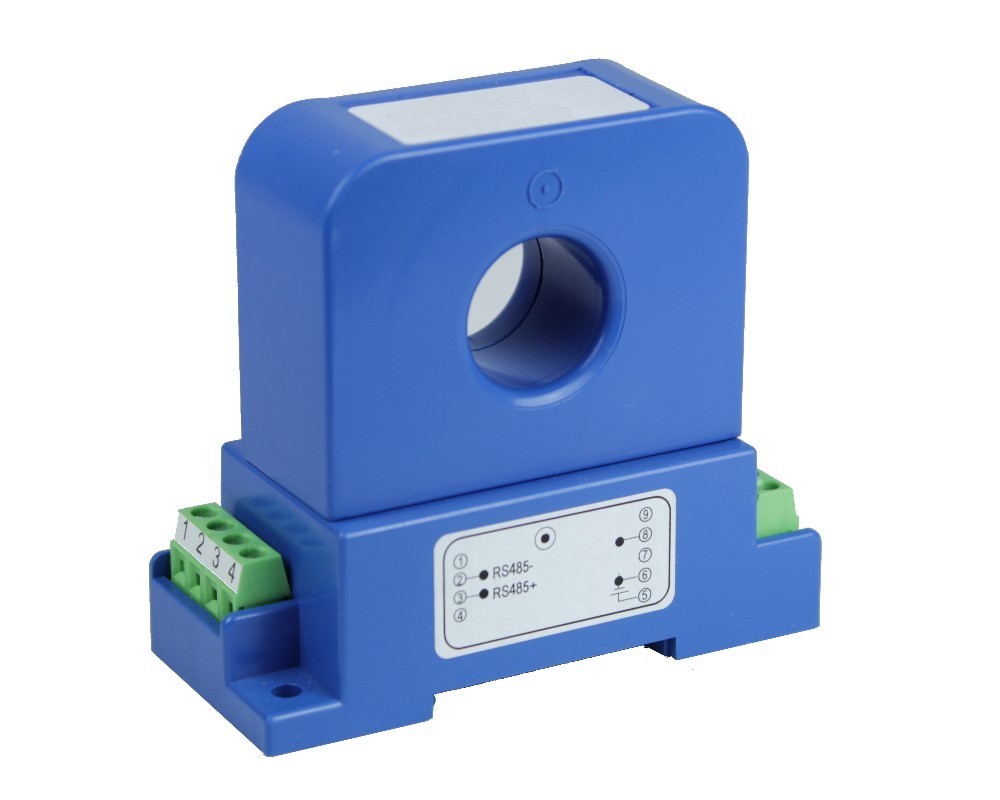

Unidirectional Digital DC Current Sensor CYCTD-S3; Digital Output: Current I; Analogue Output: 0-10V DC; Power Supply: +15 V DC; Interface: RS485 MODBUS; Window: Ø 20 mm

Preview: Unidirectional Digital DC Current Sensor CYCTD-S3; Digital Output: Current I; Analogue Output: 0-10V DC; Power Supply: +15 V DC; Interface: RS485 MODBUS; Window: Ø 20 mm Preview: Unidirectional Digital DC Current Sensor CYCTD-S3; Digital Output: Current I; Analogue Output: 0-10V DC; Power Supply: +15 V DC; Interface: RS485 MODBUS; Window: Ø 20 mm
Unidirectional Digital DC Current Sensor CYCTD-S3; Digital Output: Current I; Analogue Output: 0-10V DC; Power Supply: +15 V DC; Interface: RS485 MODBUS; Window: Ø 20 mm
Unidirectional Digital DC Current Sensor CYCTD-S3; Digital Output: Current I; Analogue Output: 0-10V DC; Power Supply: +15 V DC; Interface: RS485 MODBUS; Window: Ø 20 mm

Quantity Unit price
until 4 € 157.88 *
from 5 € 143.95 *
from 10 € 131.95 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Current:

Description Technical Properties Data Sheets Product Safety Information
Description
The sensor CYCTD-S3 works according to Magnetic Modulation and is designed for applications as... more
Close menu
Unidirectional Digital DC Current Sensor CYCTD-S3; Digital Output: Current I; Analogue Output: 0-10V DC; Power Supply: +15 V DC; Interface: RS485 MODBUS; Window: Ø 20 mm

The sensor CYCTD-S3 works according to Magnetic Modulation and is designed for applications as measurement and monitoring of DC current. The sensor has galvanic isolation between the high-power primary conductor and the secondary electronic circuit. The sensor has different analog and digital output signals under different power supplies. The data communication between the sensor and digital equipment can be realized directly through the interface RS-485 MODBUS.

Applications

  • Photovoltaic equipment
  • Battery banks, such as monitoring load current and charge current, verifying operation
  • Transportation, measuring traction power
  • Phase fired controlled heaters
  • Directly connect to PLC
  • Sense motor stalls and short circuits
  • Industrial instrumentation

Features

  • DC current measurement
  • High measuring accuracy
  • Analog and digital output signal (0-5V, 0- 10V, RS-485 Modbus)
  • High isolation between primary and secondary circuits
  • No insertion losses
  • Temperature compensation



Information about product safety:

Manufacturer/ EU Responsible Person:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100

Technical Properties
more
Close menu
Nominal Input Current: 0-500mA, 0-750mA, 0-1A, 0-2A, 0-3A, 0-5A, 0-10A, 0-15A, 0-20A, 0-25A
Power Supply: +15V DC
Analogue Output Signal: 0-10V DC
Digital Outputs: Current I
Interface: RS485, MODBUS
Baud Rate (bps): 1200, 2400, 4800, 9600 (default), 19.2K, 38.4K, 57.6K, 115.2K
Linearity: ±0.2%
Accuracy: 0,5%
Window Type: Round
Window Size (mm): Ø 20
Operating Temperature: -40°C ~ +85°C
