Unidirectional Digital Split Core Hall Effect DC/ AC Current Sensor CYHCD-S3K; Digital Output: Current I, Frequency F; Analogue Output: 2.5VDC±2.5VAC; Power Supply: +24V DC; Interface: RS485 MODBUS; Window: Ø 20 mm

Preview: Unidirectional Digital Split Core Hall Effect DC/ AC Current Sensor CYHCD-S3K; Digital Output: Current I, Frequency F; Analogue Output: 2.5VDC±2.5VAC; Power Supply: +24V DC; Interface: RS485 MODBUS; Window: Ø 20 mm Preview: Unidirectional Digital Split Core Hall Effect DC/ AC Current Sensor CYHCD-S3K; Digital Output: Current I, Frequency F; Analogue Output: 2.5VDC±2.5VAC; Power Supply: +24V DC; Interface: RS485 MODBUS; Window: Ø 20 mm
Unidirectional Digital Split Core Hall Effect DC/ AC Current Sensor CYHCD-S3K; Digital Output: Current I, Frequency F; Analogue Output: 2.5VDC±2.5VAC; Power Supply: +24V DC; Interface: RS485 MODBUS; Window: Ø 20 mm
Unidirectional Digital Split Core Hall Effect DC/ AC Current Sensor CYHCD-S3K; Digital Output: Current I, Frequency F; Analogue Output: 2.5VDC±2.5VAC; Power Supply: +24V DC; Interface: RS485 MODBUS; Window: Ø 20 mm

Quantity Unit price
until 4 € 136.75 *
from 5 € 124.77 *
from 10 € 114.57 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Nominal Input Current:

Description Technical Properties Data Sheets Product Safety Information
Description
The sensor CYHCD-S3K is a Hall Effect current sensor for the measurement of DC/AC current. The... more
Close menu

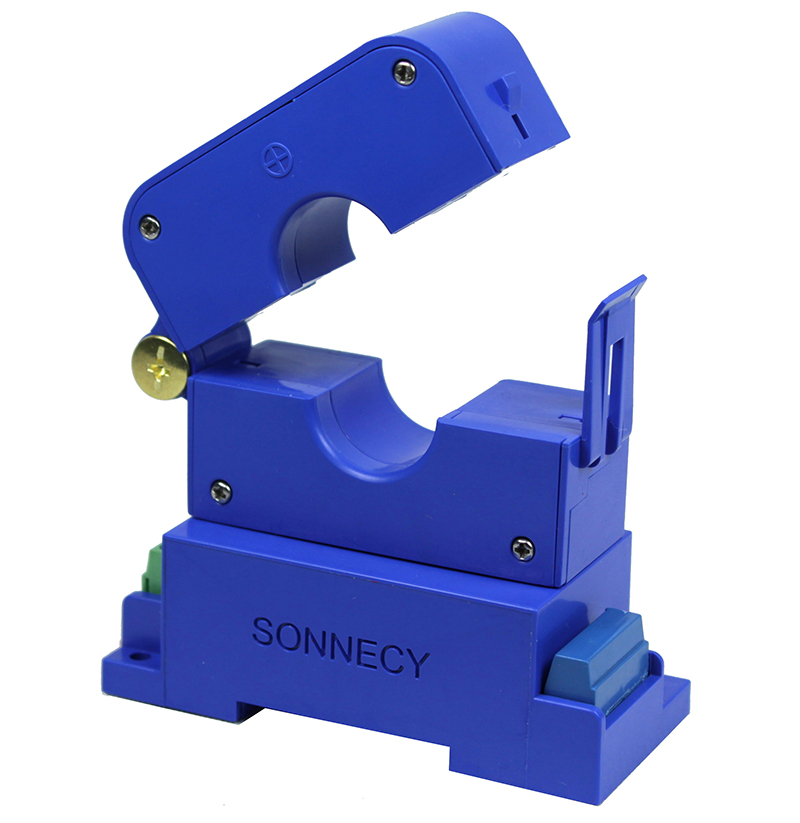

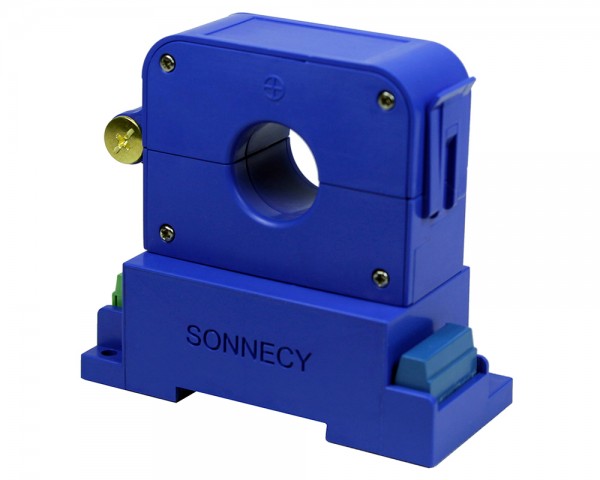

Unidirectional Digital Split Core Hall Effect DC/ AC Current Sensor CYHCD-S3K; Digital Output: Current I, Frequency F; Analogue Output: 2.5VDC±2.5VAC; Power Supply: +24V DC; Interface: RS485 MODBUS; Window: Ø 20 mm

The sensor CYHCD-S3K is a Hall Effect current sensor for the measurement of DC/AC current. The sensor has galvanic isolation between the high-power primary conductor and the secondary electronic circuit. The sensor has analog and different digital output signals under different power supplies. The data communication between the sensor and digital equipment can be realized directly through the interface RS-485 MODBUS.

Applications

  • Photovoltaic equipment
  • Battery banks, such as monitoring load current and charge current, verifying operation
  • Transportation, measuring traction power
  • Phase fired controlled heaters
  • Directly connect to PLC
  • Sense motor stalls and short circuits
  • Industrial instrumentation

Features

  • DC/AC current measurement
  • High measuring accuracy
  • Analog output voltage 2.5VDC±2.5VAC, 5VDC±5VAC
  • Digital outputs (RS-485 Modbus)
  • Split Core, easy installation
  • Protection against overvoltage
  • Protection against reversed polarity
  • Output protection against electrical disturbances



Information about product safety:

Manufacturer/ EU Responsible Person:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100

Technical Properties
more
Close menu
Nominal Input Current: 0-25A, 0-30A, 0-40A, 0-50A, 0-60A, 0-70A, 0-80A, 0-90A, 0-100A, 0-200A, 0-300A, 0-400A, 0-500A
Power Supply: +24V DC
Analogue Output Signal: 2.5V DC ± 2.5V AC
Digital Outputs: Current I, Frequency F
Interface: RS485, MODBUS
Baud Rate (bps): 1200, 2400, 4800, 9600 (default), 19.2K, 38.4K, 57.6K, 115.2K
Linearity: 0,2%, 0,5%
Accuracy: 0,5%, 1,0%
Window Type: Round
Window Size (mm): Ø 20
Operating Temperature: -40°C ~ +85°C
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
