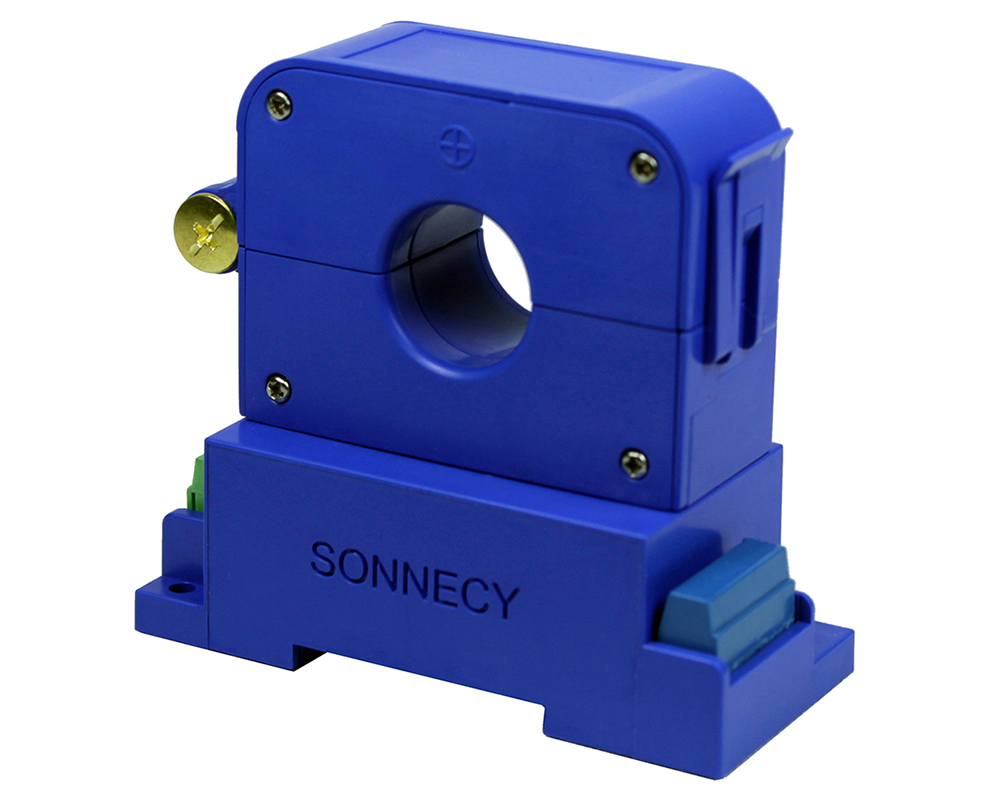

Unidirectional Split Core Hall Effect DC Current Sensor CYHCT-S3K, Output: 4-20 mA DC, Power Supply: +12 V DC, Window: ø 20 mm

Preview: Unidirectional Split Core Hall Effect DC Current Sensor CYHCT-S3K, Output: 4-20 mA DC, Power Supply: +12 V DC, Window: ø 20 mm Preview: Unidirectional Split Core Hall Effect DC Current Sensor CYHCT-S3K, Output: 4-20 mA DC, Power Supply: +12 V DC, Window: ø 20 mm
Unidirectional Split Core Hall Effect DC Current Sensor CYHCT-S3K, Output: 4-20 mA DC, Power Supply: +12 V DC, Window: ø 20 mm
Unidirectional Split Core Hall Effect DC Current Sensor CYHCT-S3K, Output: 4-20 mA DC, Power Supply: +12 V DC, Window: ø 20 mm

from € 68.21 *

Prices incl. VAT excl. Shipping Costs

Nominal Input Current:

Description Technical Properties Data Sheets
Description
The sensor CYHCT-S3K is based on an open-loop principle and designed with high galvanic... more
Close menu
Unidirectional Split Core Hall Effect DC Current Sensor CYHCT-S3K, Output: 4-20 mA DC, Power Supply: +12 V DC, Window: ø 20 mm

The sensor CYHCT-S3K is based on an open-loop principle and designed with high galvanic isolation between the primary conductor and the secondary circuit. It can be used for the measurement of DC current, DC pulse currents, etc. The output of the transducer reflects the real wave of the current-carrying conductor.

Features and Advantages

  • DC current measurement
  • Output signal option (4-20mA, 0-5V, 0-10V)
  • High isolation between primary and secondary circuits
  • No insertion losses

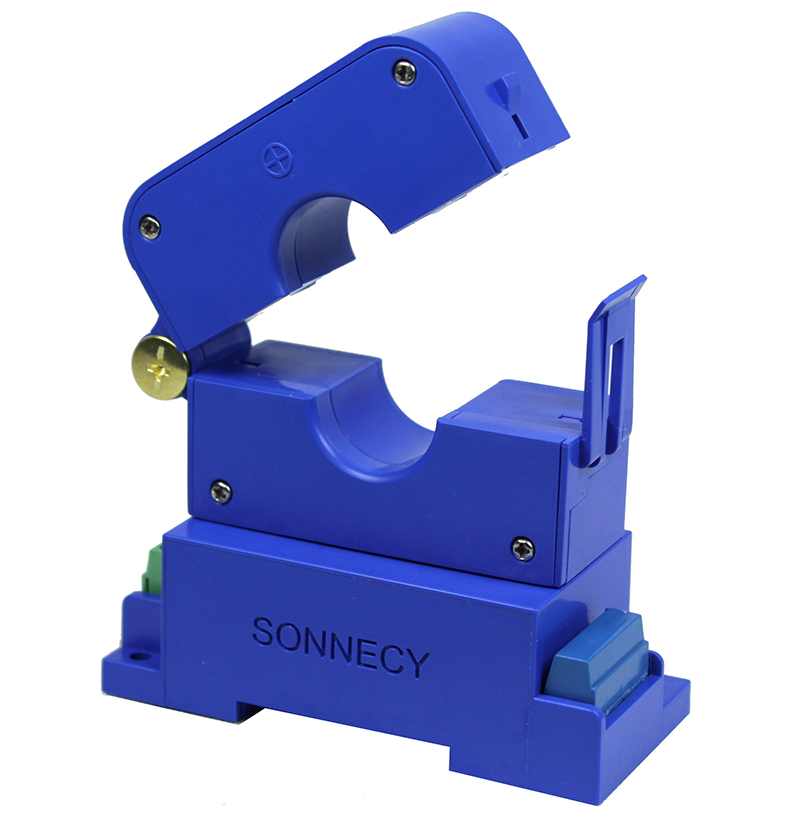

  • Split Core, easy installation
  • Temperature compensation

Applications

  • Photovoltaic equipment
  • Battery banks, such as, monitoring load current and charge current, verifying operation
  • Transportation, measuring traction power or auxiliary loads
  • Phase fired controlled heaters
  • Directly connect to PLC
  • Sense motor stalls and short circuits
  • Industrial instrumentation
Technical Properties
more
Close menu
Nominal Input Current: 0-25A, 0-30A, 0-40A, 0-50A, 0-60A, 0-70A, 0-80A, 0-90A, 0-100A, 0-200A, 0-300A, 0-400A, 0-500A
Sensor Type: Open-Loop
Power Supply: +12 V DC
Output Signal: 4-20 mA DC
Current Type: DC
Window Type: Round
Window Size (mm): Ø 20
Direction: unidirectional
Accuracy: 0,5%, 1%
Linearity: 0.5%, 0.2 %
Operating Temperature: -40°C ~ +85°C
Frequency Bandwith: DC – 8kHz
Data Sheets
more
Close menu
Data sheets to download:
