Unipolar Hall Effect Switch Ics CYD1102G, Power Supply: 3-28V, Supply current: 10mA,Operating Temperature: -40 ~+150°C

Unipolar Hall Effect Switch Ics CYD1102G, Power Supply: 3-28V, Supply current: 10mA,Operating Temperature: -40 ~+150°C
Quantity Unit price
until 9 € 0.83 *
from 10 € 0.70 *
from 20 € 0.58 *
from 50 € 0.49 *
from 100 € 0.40 *
from 200 € 0.33 *
from 500 € 0.29 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 2942 pieces (3-4 weeks if more)

Description Technical Properties Data Sheets Product Safety Information
Description

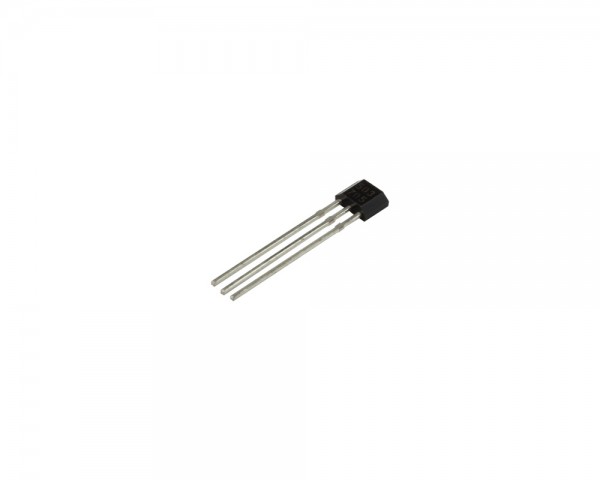

The CYD1102G is an integrated Hall Effect sensor designed for electronic commutation of... more
Close menu
Unipolar Hall Effect Switch Ics CYD1102G, Power Supply: 3-28V, Supply current: 10mA,Operating Temperature: -40 ~+150°C

The CYD1102G is an integrated Hall Effect sensor designed for electronic commutation of brush-less DC motor applications. The device includes an on-chip Hall voltage generator for magnetic sensing, a comparator that amplifies the Hall voltage, and a Schmitt trigger to provide switching hysteresis for noise rejection, and open-collector output. An internal band gap regulator is used to provide temperature compensated supply voltage for internal circuits and allows a wide operating supply range. A north pole of sufficient strength will turn the output ON. In the absence of a magnetic field, the output is OFF.

Characteristics

  • Wide operating voltage range 3V to 28V
  • Maximum output sink current 50mA
  • Open collector pre-driver
  • Reverse polarity protection
  • Package : SIP-3L
Technical Properties
more
Close menu
Operating Temperature: -40°C~ +150°C
Package/Size: SIP3L/4.1x3.05x1.50mm
Max. Supply current/voltage: 10 mA
Operation Point: 14 mT
Release Point: 6.0 mT
Hysteresis: 3.0 mT ~ 12.0 mT
Power Supply: 3.0V ~ 28V DC
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
