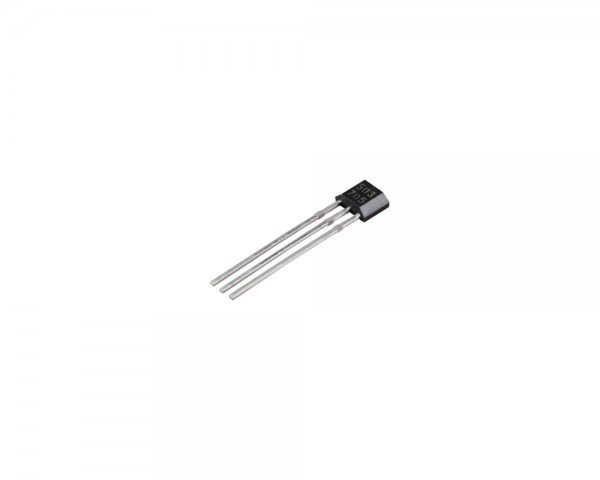

Unipolar Hall Effect Switch Ics CYD3141E, Power Supply: 4.5-24V, Supply current: 9mA,Operating Temperature: -40 ~+85°C
Quantity | Unit price |
---|---|
until 9 | € 1.54 * |
from 10 | € 1.27 * |
from 20 | € 1.07 * |
from 50 | € 0.89 * |
from 100 | € 0.74 * |
from 200 | € 0.62 * |
from 500 | € 0.51 * |
from 1000 | € 0.43 * |
from 3000 | € 0.38 * |
from 5000 | € 0.35 * |
Prices incl. VAT excl. Shipping Costs
Ready for shipping, delivery time 1-3 workdays
for quantities up to available stock of 932 pieces (3-4 weeks if more)
- Article-Nr: CYD3141E
- Serial-Nr: CYD3141E
- Request on this Article
- Data Sheet Download
- Data Sheet Download (German)
CYD3141E Hall-effect switch integrated circuits is based on the semiconductor monolithic... more
Unipolar Hall Effect Switch Ics CYD3141E, Power Supply: 4.5-24V, Supply current: 9mA,Operating Temperature: -40 ~+85°C
CYD3141E Hall-effect switch integrated circuits is based on the semiconductor monolithic technology, which includes a voltage regulator, Hall voltage generator, differential amplifier, Schmitt trigger and an open-collector output on a single silicon chip. ICs can convert the input magnetic field signal into digital voltage output.
Characteristics
- Small size
- High Sensitivity
- Quick Response
- Good Temperature Performance
- High Accuracy
- Excellent Reliability
Application
- Non-contact Switch
- Automotive Ignition
- Brake ICs
- Position control
- Revolution detection
- Safe alarm device
- Textile control system
Operating Temperature: | -40°C ~ +85°C |
Power Supply: | 4.5V ~ 24V DC |
Package/Size: | TO92/4.06x3.1x1.5mm |
Max. Supply current/voltage: | 9 mA |
Operation Point: | 5.0 mT ~ 16.0 mT |
Release Point: | 1.0 mT ~ 13.0 mT |
Hysteresis: | 2.0 mT ~ 8.0 mT |
