SONNECY Unipolar Hall Effect Switch Ics CYD506, Power Supply...

Preview: Unipolar Hall Effect Switch Ics CYD506, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C

Unipolar Hall Effect Switch Ics CYD506, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C

Quantity	Unit price
until 9	€ 1.06 *
from 10	€ 0.88 *
from 20	€ 0.74 *
from 50	€ 0.61 *
from 100	€ 0.51 *
from 200	€ 0.43 *
from 500	€ 0.36 *
from 1000	€ 0.30 *
from 3000	€ 0.27 *

Prices incl. VAT excl. Shipping Costs

Article not in stock, Delivery time 3-4 Weeks

Article-Nr: CYD506-UA
Serial-Nr: CYD506
Request on this Article
Data sheet download
Data sheet download (Deutsch)

CYD506 Hall Effect Switch is a monolithic integrated circuit which switches in response to... more

Close menu

Unipolar Hall Effect Switch Ics CYD506, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C

CYD506 Hall Effect Switch is a monolithic integrated circuit which switches in response to magnetic field. If a magnetic field with flux lines perpendicular to the sensitive area is applied to the sensor, the biased Hall plate forces a Hall voltage proportional to this field. The Hall voltage is compared with the actual threshold level in the comparator. If the magnetic field exceeds the threshold levels, the output stage is switched to the appropriate state. The built-in hysteresis eliminates oscillation and provides switching behavior of output without bouncing.

Applications

Automotive brake pedal position detection
Proximity detection
Speed measurement
Weak magnetic field applications
Solid state switches

Features

2.7V to 30V operation voltage
Overvoltage protection capability up to 40 V
High accuracy unipolar switch
Built-in dynamic offset cancellation
Open drain output
Low thermal drift of magnetic sensing
Qualified according to AEC-Q100 test standard

Close menu

Hysteresis:	2.0 mT
Operating Temperature:	-40°C ~ +150°C

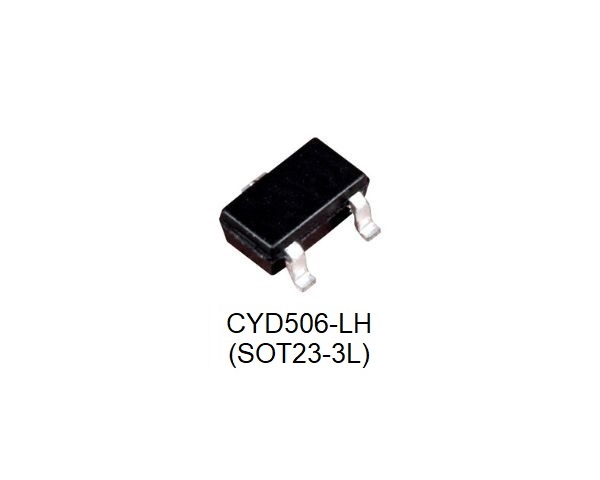

Package/Size:	TO92S/4.1x3.18x1.58mm, SOT23-3L/ 2.92 x 1.60 x 1.15 mm
Power Supply:	2.7V ~ 30V DC
Max. Supply current/voltage:	25mA/30V
Operation Point:	18 mT
Release Point:	16.0 mT
