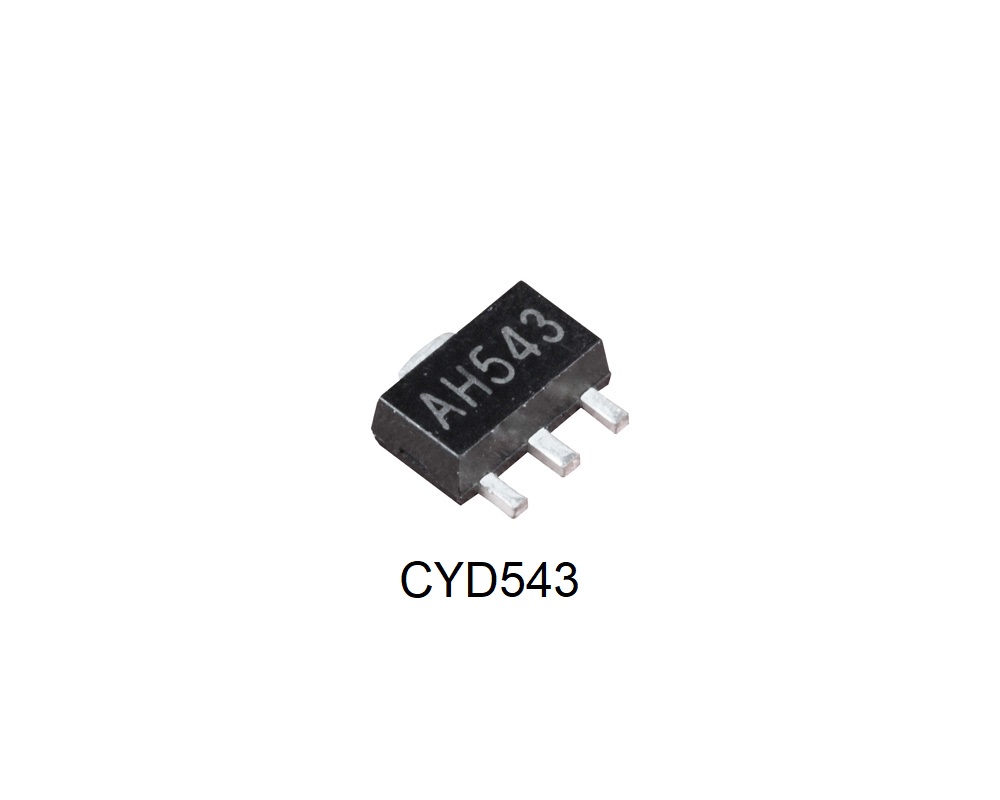

Unipolar Hall Effect Switch Ics CYD543, Power Supply: 4.5-24V, Supply current: 10mA,Operating Temperature: -50 ~+150°C

Preview: Unipolar Hall Effect Switch Ics CYD543, Power Supply: 4.5-24V, Supply current: 10mA,Operating Temperature: -50 ~+150°C Preview: Unipolar Hall Effect Switch Ics CYD543, Power Supply: 4.5-24V, Supply current: 10mA,Operating Temperature: -50 ~+150°C
Unipolar Hall Effect Switch Ics CYD543, Power Supply: 4.5-24V, Supply current: 10mA,Operating Temperature: -50 ~+150°C
Unipolar Hall Effect Switch Ics CYD543, Power Supply: 4.5-24V, Supply current: 10mA,Operating Temperature: -50 ~+150°C

Quantity Unit price
until 9 € 2.05 *
from 10 € 1.70 *
from 20 € 1.42 *
from 50 € 1.19 *
from 100 € 0.99 *
from 200 € 0.82 *
from 500 € 0.69 *

Prices incl. VAT excl. Shipping Costs

Ready for shipping, delivery time 1-3 workdays
     for quantities up to available stock of 2698 pieces (3-4 weeks if more)

Description Technical Properties Data Sheets Product Safety Information
Description
This Hall-effect switch is monolithic integrated circuit consisting of a voltage regulator,... more
Close menu
Unipolar Hall Effect Switch Ics CYD543, Power Supply: 4.5-24V, Supply current: 10mA,Operating Temperature: -50 ~+150°C

This Hall-effect switch is monolithic integrated circuit consisting of a voltage regulator, Hall-voltage generator, differential amplifier, Schmitt trigger, temperature compensation circuit and open-collector output stage. Its input is a magnetic flux density signal and output is a digital voltage signal.

Characteristics

  • Wide supply voltage range
  • Fast response time
  • Wide frequency and temperature range
  • Long operating life
  • Small size, convenient installing
  • Output compatible with all digital logic families
  • Unipolar Sensor
  • ROHS Compliant

Application

  • Contact-less switch
  • Position control
  • Speed measurement
  • Revolution detection
  • Isolation measurement
  • Brushless dc motor
  • Automotive igniters
Technical Properties
more
Close menu
Power Supply: 4.5V ~ 24V DC
Max. Supply current/voltage: 10 mA
Operation Point: 15 mT
Release Point: 10.0 mT
Hysteresis: 5.0 mT
Operating Temperature: -50°C ~ +150°C
Package/Size: SOT89/4.5x2.5x1.5mm
Data Sheets
more
Close menu
Data sheets to download:
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
