Unipolar Hall Effect Switch Ics CYD9636-K, Power Supply: 3.8-24V, Supply Current: 50mA,Operating Temperature: -40 ~+125°C
Quantity | Unit price |
---|---|
until 9 | € 2.05 * |
from 10 | € 1.70 * |
from 20 | € 1.43 * |
from 50 | € 1.19 * |
from 100 | € 0.99 * |
from 200 | € 0.82 * |
from 500 | € 0.69 * |
from 1000 | € 0.52 * |
from 3000 | € 0.48 * |
from 5000 | € 0.46 * |
Prices incl. VAT excl. Shipping Costs
Article not in stock, Delivery time 3-4 Weeks
- Article-Nr: CYD9636-UA-K
- Serial-Nr: CYD9636
- Request on this Article
- Data Sheet Dowmload
- Data Sheet Download (German)
The CYD9636 is a high sensitive unipolar Hall Effect switch IC. The built-in dynamic offset... more
Unipolar Hall Effect Switch Ics CYD9636-K, Power Supply: 3.8-24V, Supply Current: 50mA,Operating Temperature: -40 ~+125°C
The CYD9636 is a high sensitive unipolar Hall Effect switch IC. The built-in dynamic offset cancellation and temperature compensation of pre-amplifier stage achieves accuracy magnetic sensing. The supply voltage range is from 3.8V to 24VDC and the maximum output current is 50mA. This Hall Effect switch IC integrates a Hall plate, pre-amplifier with dynamic offset cancellation, hysteresis comparator and protection circuit in single chip.
Applications
- Automotive brake pedal position detection
- Proximity detection
- Speed measurement
- Weak magnetic field applications
- Solid state switches etc.
Features
- 3.8V to 24V operation voltage
- High accuracy unipolar switch
- Built-in dynamic offset cancellation
- Open drain output
- Low thermal drift of magnetic sensing
Operating Temperature: | -40°C ~ +125°C |

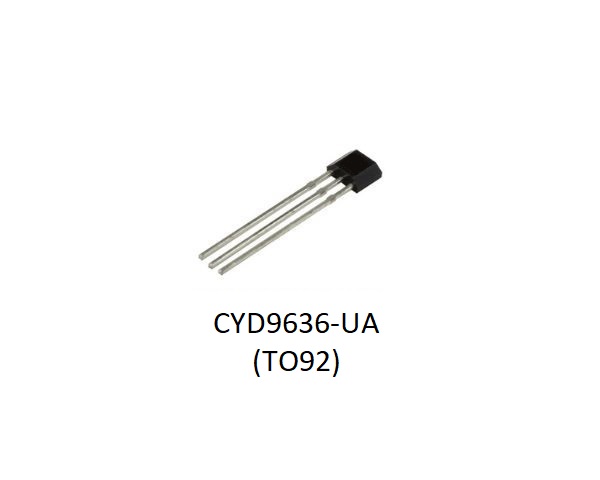

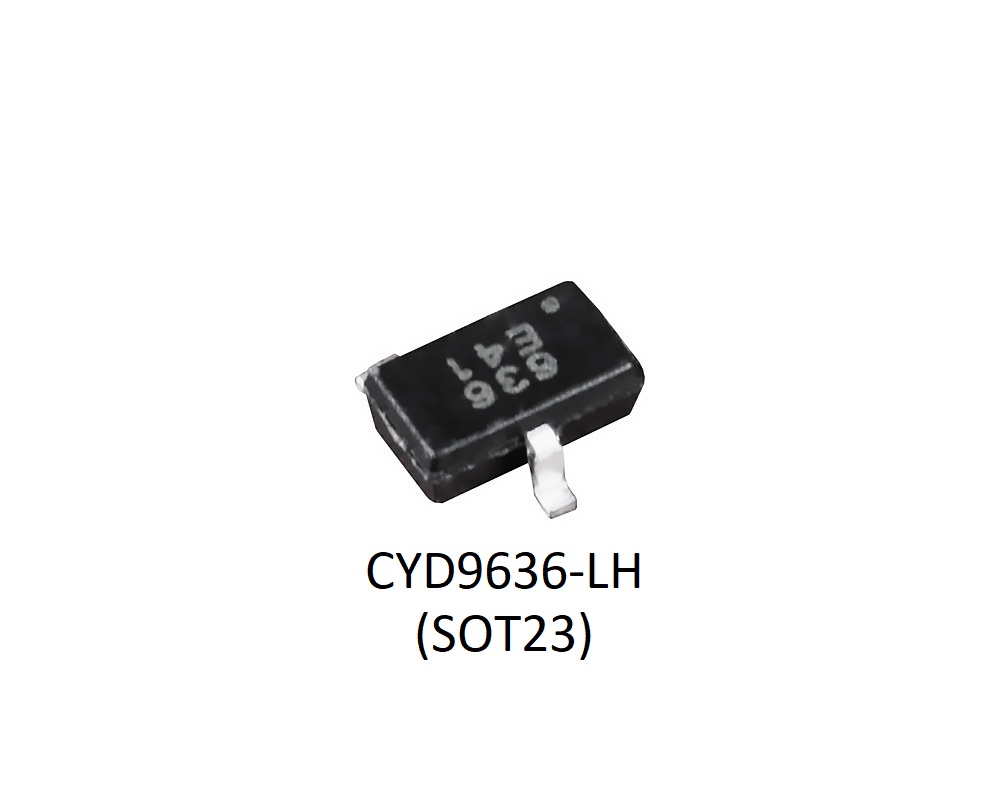

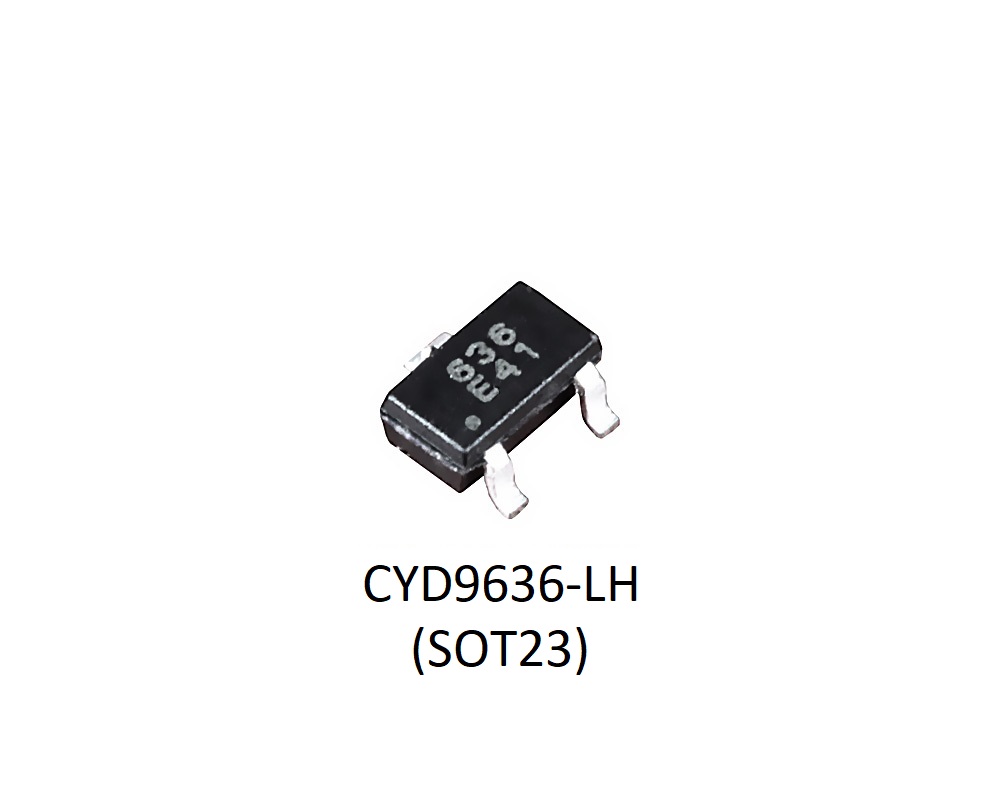

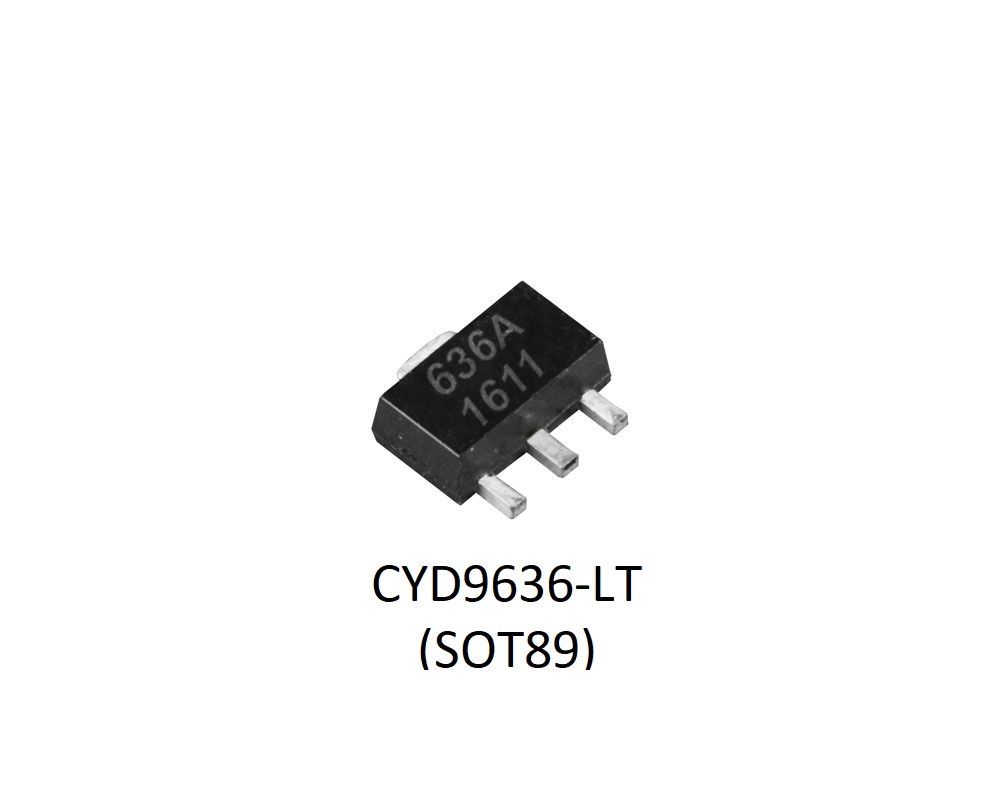

Package/Size: | SOT23, SOT89, TO92 |
Max. Supply current/voltage: | 50 mA |
Operation Point: | 3.8 mT ~ 7.2 mT |
Release Point: | 2.0 mT ~ 5.0 mT |
Hysteresis: | 1.5 mT ~ 2.7 mT |
Power Supply: | 3.8V ~ 24V DC |
